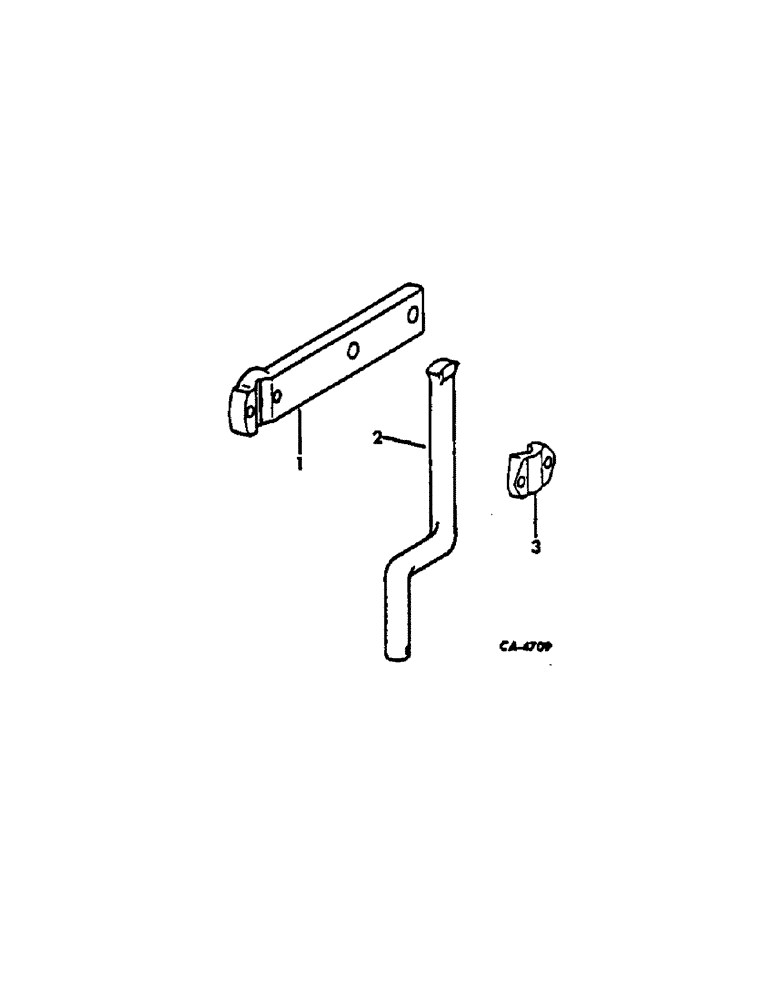

Запчасти Case IH 710 (AP-15[A]) - COLTER ATTACHING PARTS FORGED END COLTER RAIL, ONE PER COLTER

1

541163R1

BAR, colter

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5, 2 for automatic trip

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 znd hex-hd cap, 2 for spring trip

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 2-way lock, 1 per screw

1шт.

2

488792R1

SHANK

colter

1шт.

21641R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), , self-opening 5/16" x 2 1/4"

1шт.

3

519155R1

CLAMP

CAP, colter

1шт.

271732

SWASH PLATE,Hex, 5/8" - 11 x 4 1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 znd hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.
