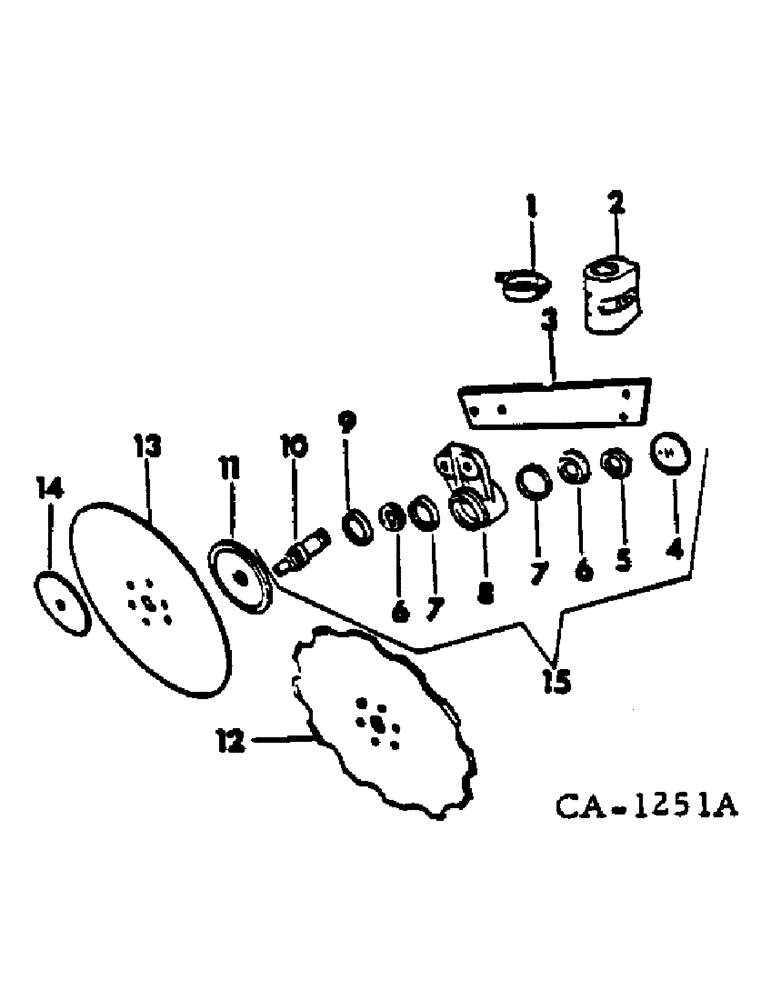

Запчасти Case IH 710 (AP-14) - ROLLING COLTER, HEAVY DUTY SIDE ARM, ONE PER FURROW

1

523345R21

COLLAR CLAMP

COLLAR W/SET SCREW, stop

1шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 C-Z sq-hd cup-pt set

1шт.

2

462273R2

SUPPORT ASSY.

BEARING, colter arm R.H.

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

1шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

1шт.

181672

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 5

SCREW, 7/16-20 x 1-3/4 C-Z hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

LEC271506

SHIM

7/16-20 C-Z hex.

1шт.

3

131517C1

BAR ASSY, colter, replaces 462274r1 & 471167R2

1шт.

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

4

518842R1

CAP

hub

1шт.

5

519250R1

SLOTTED NUT

1-1/4-12 slt hex.

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, housing cone

2шт.

7

651817R1

BEARING CUP

BEARING, housing cup

2шт.

8

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING, RH bearing

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

17238R91

LUBE NIPPLE,65 Degree, 1/4" NPT x .73" lg

FITTING, 1/4-28 saelt 65 deg angle lub, in brg housing

1шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

housing oil

1шт.

472222R1

SLEEVE

oil seal

1шт.

10

541480R1

SPINDLE

colter

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

26963R1

NUT,7/8"-14, G8

NUT, 7/8-14 znd slt hex. type 8

1шт.

11

523020R3

SUPPORT ASSY.

SUPPORT, inside blade

1шт.

12

471166R1

COULTER

BLADE, 20 in. notched colter

1шт.

13

523025R2

HALF BLADE

BLADE, 17 in. plain colter

1шт.

13

469191R3

BLADE

17 in. rippled colter

1шт.

13

474251R1

DISC

BLADE, 20 in. plain colter

1шт.

13

474252R2

COULTER

RIPPLED 20"

1шт.

14

523021R2

SUPPORT ASSY.

SUPPORT, outside blade

1шт.

15

549827R92

HUB CAP

HUB, bearing and spindle assy, composed of ref nos. 4 through 10

1шт.
