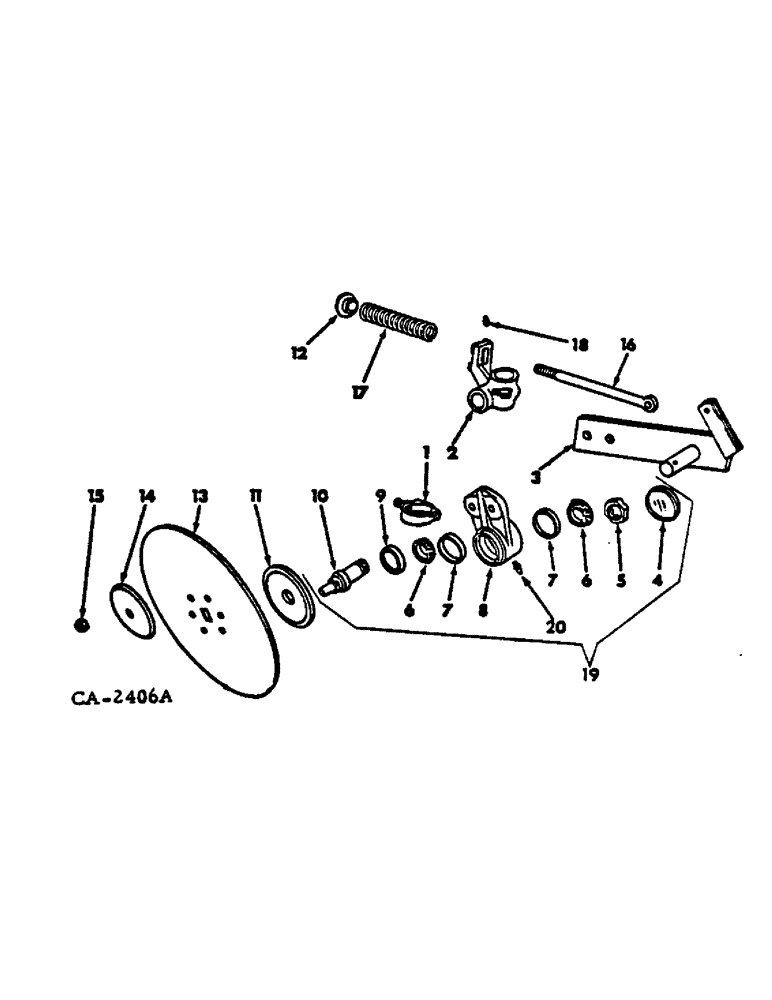

Запчасти Case IH 710 (AP-13) - ROLLING COLTER, CUSHION TYPE, ONE PER FURROW

1

523345R21

COLLAR CLAMP

COLLAR W/SET SCREW, stop

1шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 C-Z sq-hd cup-pt set

1шт.

2

492815R3

BUSHING

colter

1шт.

3

492812R1

ARM

ASSY, colter

1шт.

4

518842R1

CAP

hub

1шт.

5

519250R1

SLOTTED NUT

1-1/4-12 slt hex.

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, housing cone

2шт.

7

651817R1

BEARING CUP

BEARING HOUSING CUP

2шт.

8

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING, RH brg

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

1шт.

472222R1

SLEEVE

oil seal

1шт.

10

541480R1

SPINDLE

colter

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

11

523020R3

SUPPORT ASSY.

SUPPORT, inside blade, for 17 in. blade

1шт.

11

59158C1

SUPPORT ASSY.

SUPPORT, inside blade, for 20 in. blade

1шт.

12

487697R1

CENTERING RING

SPACER, spring plug

1шт.

13

523025R2

HALF BLADE

BLADE, 17 in. plain colter

1шт.

13

469191R3

BLADE

17 in. rippled colter

1шт.

13

474251R1

DISC

BLADE, 20 in. plain

1шт.

13

474252R2

COULTER

RIPPLED 20"

1шт.

14

523021R2

SUPPORT ASSY.

SUPPORT, outside blade, for 17 in. blade

1шт.

14

59159C1

SUPPORT ASSY.

SUPPORT, outside blade, for 20 in. blade

1шт.

15

26963R1

NUT,7/8"-14, G8

NUT, 7/8-NF slt type 8

1шт.

16

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT, spring eye

1шт.

21660R1

HEADED PIN,1/2" x 1 11/16"

PIN, 1/2 x 1-11/16 zn-pltd std-hd

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

21226R1

WASHER

1-9/32 x 2 x 11 ga znd

1шт.

17

487698R1

SPRING

cushion, 13-1/2 coils

1шт.

18

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub, colter bushing

2шт.

19

549827R92

HUB CAP

HUB, bearing and spindle assy, composed of ref nos. 4 through 10 and 20

1шт.

20

17238R91

LUBE NIPPLE,65 Degree, 1/4" NPT x .73" lg

FITTING 1/4-28 saelt 65 deg angle lub, in brg housing

1шт.
