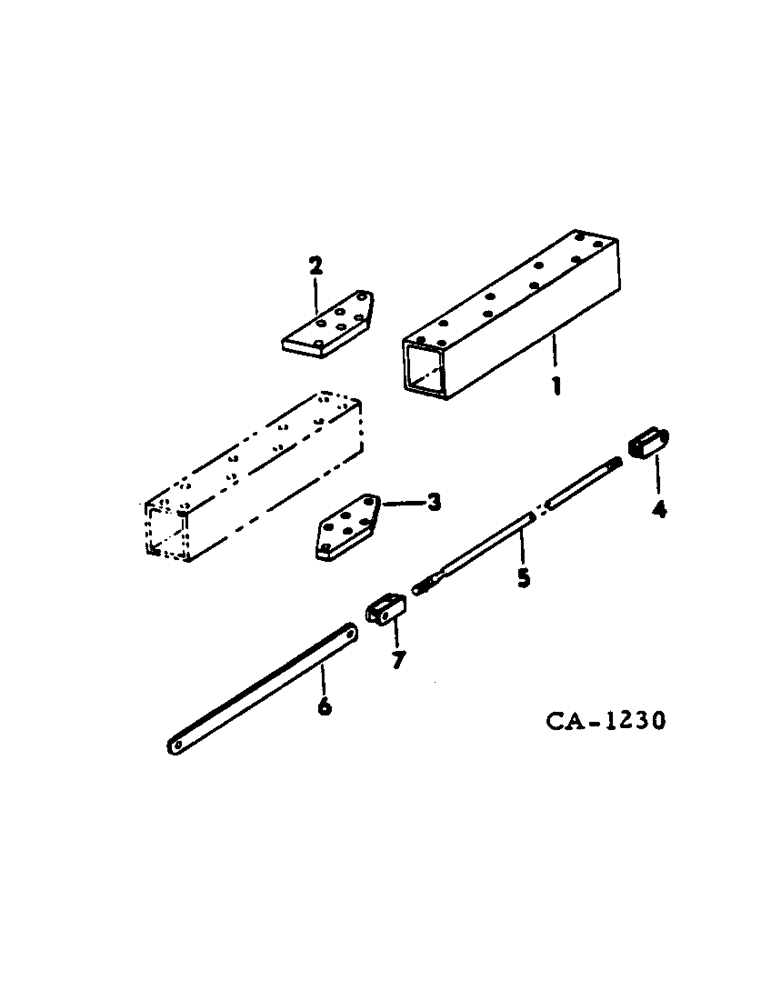

Запчасти Case IH 710 (AP-12) - BEAM EXTENSION, FOR AUTOMATIC AND SPRING TRIP, FOR 3 THRU 6 FURROWS

1

482912R91

TUBE ASSY, main frame rear 16 in., angular frame

1шт.

1

489865R1

TUBE ASSY, main frame rear 18 in., angular frame

1шт.

1

59546C1

TUBE, extension 16 in., tubular frame

1шт.

1

59547C1

TUBE, extension 18 in., tubular frame

1шт.

2

482915R1

BAR

PLATE, frame splice top

1шт.

3

482916R1

BAR

PLATE, frame splice bottom

1шт.

26251R1

BOLT,Hex, 3/4" - 10 x 9", Gr 8

SCREW, 3/4-10 x 9 znd hex-hd cap

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

4

541165R1

TURNBUCKLE

ASSY, tie rod RH, for 4 to 5 furrow

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

22209R1

PIN, 3/4 x 3 C-Z std-hd

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

5

541171R1

ROD

tie 16 in.

1шт.

5

541170R1

ROD

tie 18 in., for 4 to 5 furrow

1шт.

6

543245R1

BAR

tie rod extension 16 in.

1шт.

6

543246R1

BAR

tie rod extension 18 in., for 5 and 6 furrow

1шт.

22936R1

PIN,3/4" x 1 3/4"

3/4 x 1-3/4 C-Z std-hd

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

7

541166R1

TURNBUCKLE

ASSY, tie rod LH, for 4 to 5 furrow

1шт.

22209R1

PIN, 3/4 x 3 C-Z std-hd

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.
