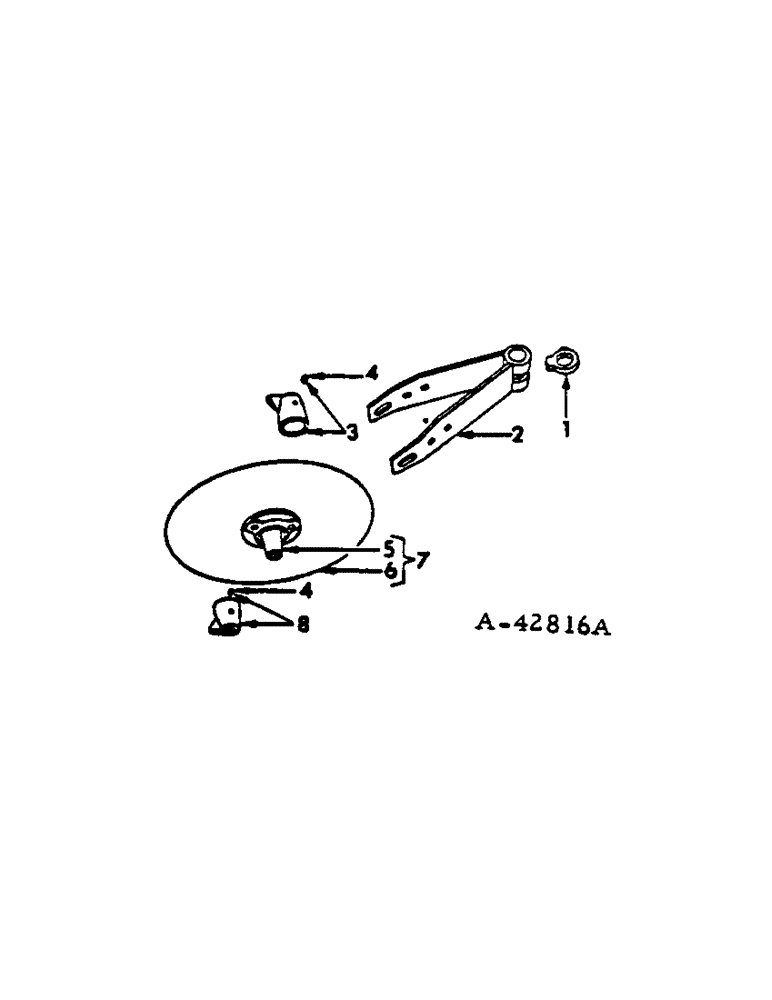

Запчасти Case IH 710 (AP-12[A]) - ROLLING COLTER, YOKE TYPE, ONE PER FURROW

1

519345R31

COLLAR

ASSY, stop

1шт.

20900R1

SET SCREW

1/2-13 x 1 C-Z sq-hd cup-pt set

1шт.

2

522252R93

YOKE

ASM., colter

1шт.

272549

RIGID PLATFORM,Hex, 1/2" - 13 x 7 3/4", Gr 5

SCREW, 1/2-13 x 7-3/4 hex-hd cap

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

1шт.

3

521157R11

BUSHING

W/LUB FITTING LH

2шт.

4

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 drive type str lub

2шт.

5

468727R1

HUB

blade

2шт.

45-528

RIVET,But Hd, 5/16" x 1 3/4"

5/16 x 1-3/4 rd-hd

6шт.

6

523025R2

HALF BLADE

BLADE, 17 in. plain

1шт.

7

478720R91

BLADE

ASSY, 17 in. plain

1шт.

7

469191R31

COULTER

BLADE W/HUB ASSY, 17 in. rippled

1шт.

8

521158R11

BUSHING

W/LUB FITTING RH

1шт.
