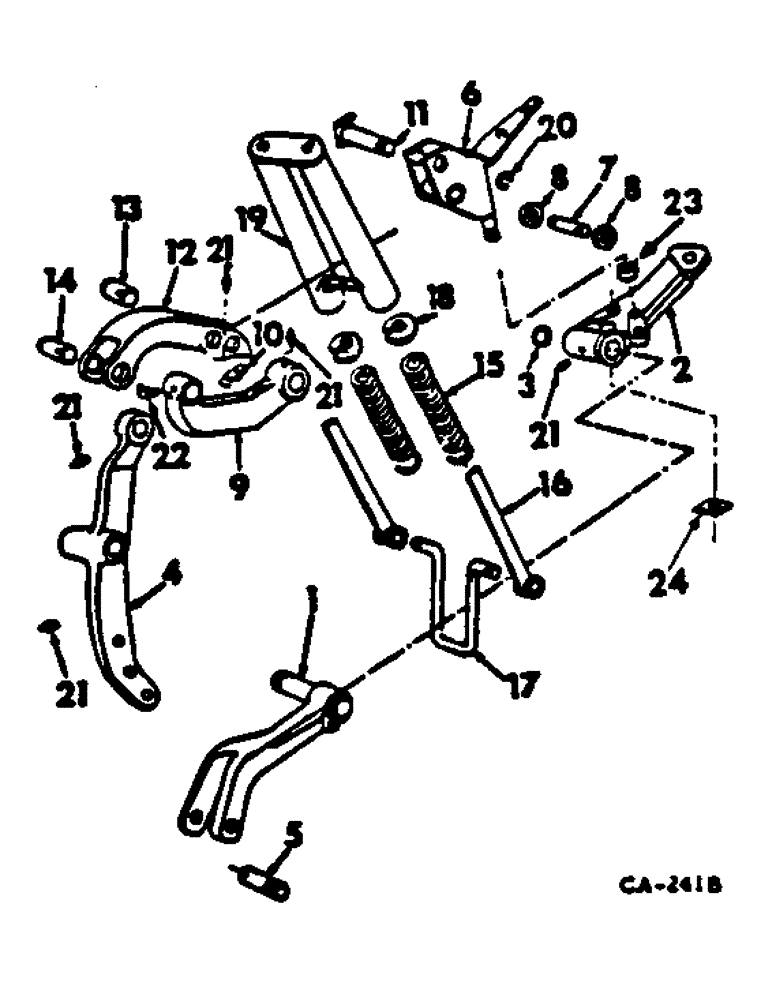

Запчасти Case IH 710 (AP-11) - TRIP BEAM, AUTOMATIC, ONE PER FURROW

1

55366C3

BEAM

ASSY, lower link

1шт.

2

122558C2

BRACKET

pivot casting, replaces 285556R1 by also ordering 2 washers 547213R2

1шт.

21759R1

WASHER

.656 x 2.000 x .105

1шт.

3

468371R1

RING

pivot ext. retaining

1шт.

4

60099C3

BEAM

recovery trip, replaces 540029R1 and 55368C1

1шт.

5

485526R1

SHAFT

pivot bracket

1шт.

471323R1

LINCH PIN

PIN, pivot lock

1шт.

519250R1

SLOTTED NUT

1-1/4-12 unf slt-hex.

1шт.

21643R1

COTTER PIN,1/8" x 2 1/4"

1/8" x 2 1/4"

1шт.

6

547102R91

SUPPORT

ASSY W/TWO NUTS AND TWO SCREWS, upper mounting, for 5-1/2 in. main frame

1шт.

21259R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW, 5/8-11 x 7-3/4 hex-hd cap

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 cdp hex. lock

2шт.

6

547266R91

SUPPORT

ASSY, upper mounting, for 6 in. main frame

1шт.

7

485534R1

PIN

upper mounting roller

1шт.

8

491934R1

SPACER

stop roller

2шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

9

485537R3

LATCH ASSY.

LINK, upper front

1шт.

10

489152R1

STRAP

ASSY, load adj

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

427586

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

SCREW, 5/16-18 x 1-1/4 type 4 C-Z hex-hd cap

1шт.

11

485539R1

PIN

ASSY, upper front link

1шт.

12

485542R5

LEVER

LINK, upper rear

1шт.

13

485543R1

PIN

upper link center

1шт.

21647R1

LOCK PIN,7/32" x 2 1/2", Slotted

Pin, 7/32" x 2 1/2", Slotted

1шт.

14

485524R1

PIN

BAR, plow beam

1шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

21646R1

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, 3/16" x 2 1/2", Slotted

1шт.

15

485557R1

SPRING

extension

2шт.

16

485545R1

BAR

ASSY, spring insert

2шт.

17

485544R1

HOLDER

spring mounting hook

1шт.

486365R1

WASHER

mounting hook

2шт.

460309R1

COTTER PIN

PIN, 11/64 special cot.

2шт.

18

485548R2

WASHER

ADJUSTER, spring

2шт.

19

485551R3

TUBE

ASSY, spring

1шт.

485555R1

BOLT,Hex, 1/2" - 13 x 4 1/4"

1/2-13 x 4-1/4 full thrd hex-hd type II

2шт.

21711R1

WASHER

17/32 x 2-1/2 x 11 ga C-Z

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

20

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 PTF str lub

5шт.

22

16964R91

FITTING

1/4-28 NS 90 deg lub

1шт.

23

485535R1

WASHER

WASHER, upper mounting horseshoe

2шт.

24

549940R1

SHIM, pivot bracket

1шт.
