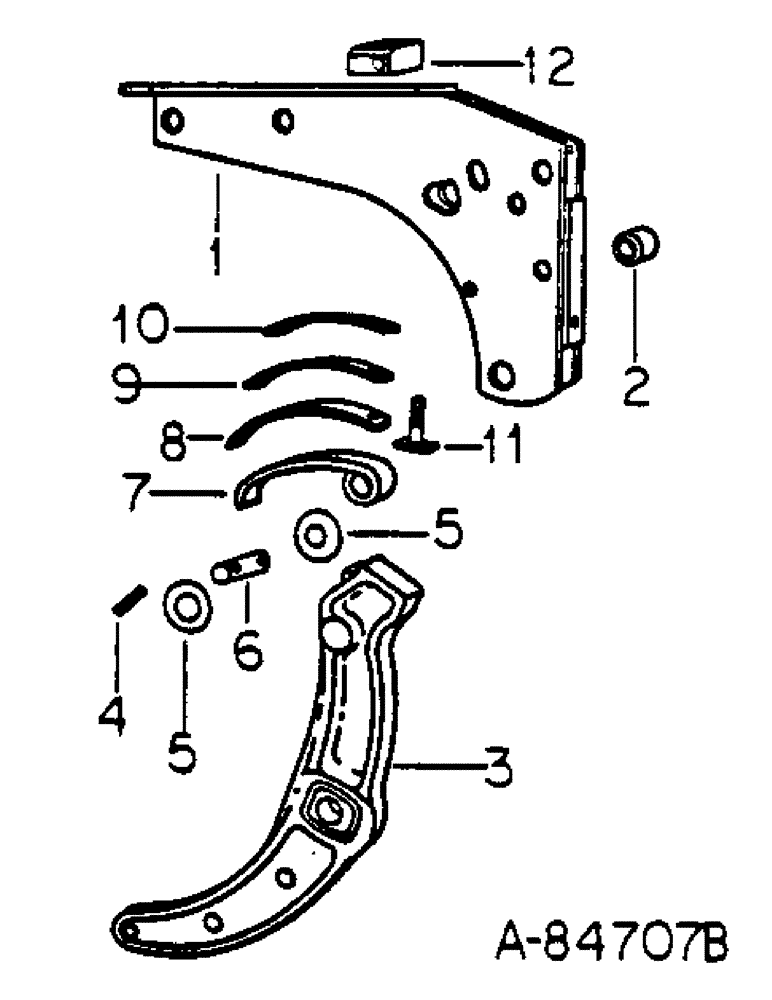

Запчасти Case IH 710 (AP-10) - TRIP BEAM, SPRING, ONE PER FURROW

1

122894C91

PLATE

ASSY, side, replaces 482782R93, on orders for 482782R93 also furnish block 122893C1 and cap screws 21692R1 and 21218R1

1шт.

2

522432R2

SPACER

STOP & SPACER, beam

1шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

465800R2

BEAM

plow

1шт.

465799R1

BOLT (SPREADER),Hex, 1" x 3 1/2", Drilled

BOLT, 1 x 3-1/2 dld-hex-hd mach

1шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-114 C-Z slt-hex.

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

4

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

5

522473R1

WASHER

29/64 x 1-3/4 x 11 ga

2шт.

6

465801R1

ROLLER

trip spring

1шт.

7

465868R1

SPRING

trip

1шт.

21666R1

HEADED PIN,3/4" x 2 15/16"

PIN, 3/4 x 2-15/16 zn-pltd std-hd

1шт.

21636R1

PIN, 1/4 x 1-1/2 C-Z self-opening cot.

1шт.

8

524454R1

VALVE SPRING

SPRING, lower helper

1шт.

9

524453R1

VALVE SPRING

SPRING, middle helper

1шт.

10

524452R1

VALVE SPRING

SPRING, upper helper

1шт.

11

61788C1

SCREW ASSY, adjusting, replaces 484522R91

1шт.

124934

HOSE

1/2-20 C-Z hex. jam

1шт.

120371

NUT,1/2"-20, G5

1шт.

12

122893C1

BAR, reinforcing block

1шт.

21692R1

BOLT,Hex, 5/8" - 11 x 10", Gr 5

5/8 x 10 type 5

1шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

3/4 x 5-1/4 type 5

1шт.
