Запчасти Case IH 70L (F-02) - FRAME

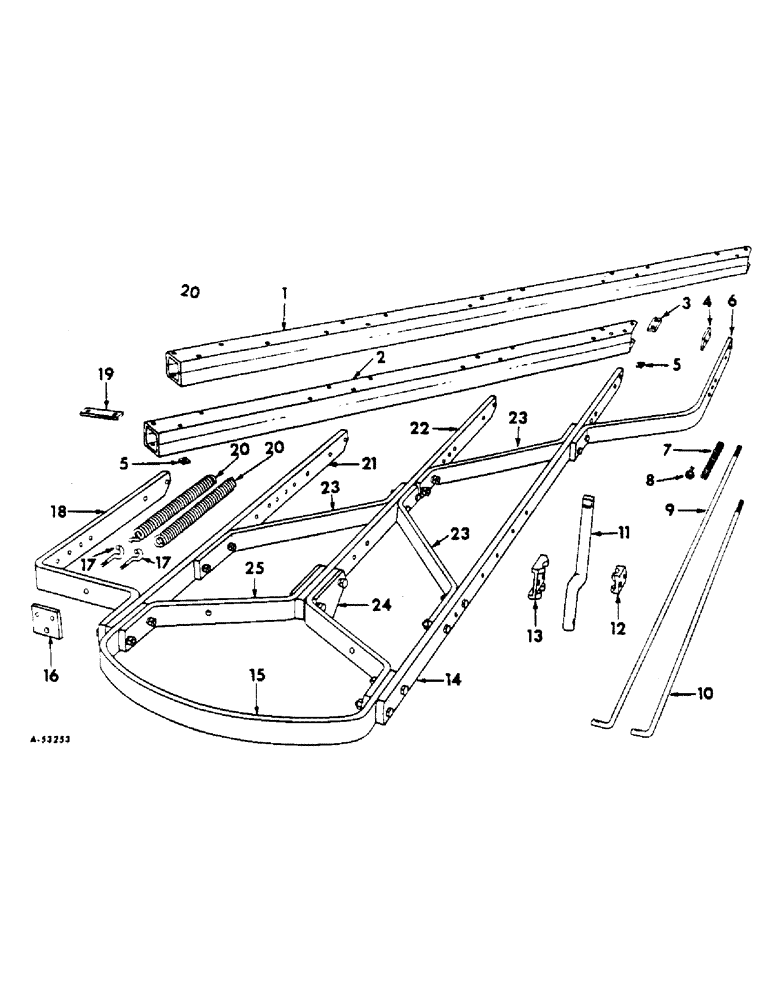

Схема запчастей Case IH 70L - (F-02) - FRAME

Артикул

Название

Примечание

Количество

1

525222R91

FRAME, 14 in. main, 5/4 furrow

1шт.

1

525225R91

FRAME, 16 in. main, 5/4 furrow

1шт.

525184R1

5/8 x 5-1/4 CRG BOLT

14шт.

526453R1

5/8 x 6 CRG BOLT

2шт.

5/8 LOCK WASHER

15шт.

5/8 NUT

15шт.

2

525216R91

FRAME, 14 in. main, 4 furrow

1шт.

2

525219R91

FRAME, 16 in. main, 4 furrow

1шт.

525184R1

5/8 x 5-1/4 CRG BOLT

9шт.

526453R1

5/8 x 6 CRG BOLT

2шт.

5/8 NUT

11шт.

5/8 LOCK WASHER

11шт.

3

525159R1

STRAP, 14 in. main frame rear reinforcing

1шт.

3

524469R1

STRAP, 16 in. main frame rear reinforcing

1шт.

526453R1

BOLT, 5/8 x 6 crg

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

4

524465R1

SUPPORT

SPACER, frame rail, 4 furrow

4шт.

5/8 NUT

8шт.

5/8 x 3-1/2 CAP SCREW

8шт.

5/8 LOCK WASHER

8шт.

4

524465R1

SUPPORT

SPACER, frame rail, 5/4 furrow

5шт.

5/8 NUT

10шт.

5/8 x 3-1/4 CAP SCREW

10шт.

5/8 LOCK WASHER

10шт.

5

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit bolt, 4 furow

12шт.

5

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit bolt, 5/4 furrow

15шт.

6

525199R1

RAIL, 14 in. frame offset, 5/4 furrow

1шт.

6

525200R1

RAIL, 16 in. frame offset, 5/4 furrow

1шт.

5/8 x 3-1/2 MACH BOLT

2шт.

5/8 LOCK WASHER

2шт.

5/8 NUT

2шт.

7

13A

SPRING, lift rod cushion

1шт.

8

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, rear raising link

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

1/2 x 3/4 CUP-PT SQ-HD SET SCREW

1шт.

9

525189R1

LINK, rear raising, 5/4 furrow

1шт.

10

525193R1

LINK, rear raising, 4 furrow

1шт.

218443

NUT

3/4 JAM NUT

2шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

25/32 x 1-1/2 x 11 GA WASHER

3шт.

11

522434R1

STEM

SHANK, colter, 4 furrow

4шт.

13170R1

Pin, Split (Cotter), 5/16" x 2 1/4", self-opening 5/16" x 2 1/4"

4шт.

11

522434R1

STEM

SHANK, colter, 5/4 furrow

5шт.

13170R1

Pin, Split (Cotter), 5/16" x 2 1/4", self-opening 5/16" x 2 1/4"

5шт.

12

524492R2

CAP, colter clamp, 4 furrow

4шт.

5/8 NUT

8шт.

5/8 x 4-1/4 CAP SCREW

8шт.

12

524492R2

CAP, colter clamp, 5/4 furrow

5шт.

5/8 NUT

10шт.

5/8 x 4-1/4 CAP SCREW

10шт.

13

524456R3

CLAMP

colter, 4 furrow

4шт.

13

524456R3

CLAMP

colter, 5/4 furrow

5шт.

14

525251R1

RAIL, frame fourth

1шт.

5/8 NUT

4шт.

5/8 x 4 CAP SCREW

2шт.

5/8 x 2-1/4 MACH BOLT

2шт.

5/8 LOCK WASHER

4шт.

15

525254R2

SPREADER, 14 in. frame front

1шт.

15

525255R2

SPREADER, 16 in. frame front

1шт.

16

525165R1

ANCHOR, spring

1шт.

5/8 x 2-1/4 MACH BOLT

1шт.

5/8 LOCK WASHER

1шт.

17

7363

EYEBOLT, raising spring

2шт.

1/2 NUT

4шт.

18

525197R1

RAIL, 14 in. frame first

1шт.

18

525198R1

RAIL, 16 in. frame first

1шт.

5/8 NUT

2шт.

5/8 x 4-1/4 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

19

525169R1

STRAP, main frame front reinforcing

1шт.

521530R1

5/8 x 5-3/4 CRG BOLT

2шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

1шт.

20

PO107

SPRING, furrow raising

1шт.

3/4 x 3-1/4 HD PIN

1шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

25/32 x 1-1/4 x 11 GA WASHER

2шт.

21

525194R1

RAIL, frame second

1шт.

5/8 x 2-1/2 MACH BOLT

2шт.

5/8 LOCK WASHER

2шт.

5/8 NUT

2шт.

22

525250R1

RAIL, frame third

1шт.

23

525195R1

BRACE, 14 in. frame, 3 used w/remote lift, 2 used w/bevel gear lift

1шт.

23

525196R1

BRACE, 16 in. frame, 3 used w/remote lift, 2 used w/bevel gear lift

1шт.

17578R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2

BOLT, 5/8 x 2-1/2 mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

525267R1

PLATE, hitch pivot attaching

1шт.

5/8 NUT

2шт.

20941R1

BOLT (SPREADER),3/4" x 4 3/4", Gr 8

SCREW, 5/8 x 4-3/4 cap

1шт.

5/8 LOCK WASHER

2шт.

25

525201R1

BRACE, 14 in. frame rail front

1шт.

25

525202R1

BRACE, 16 in. frame rail front

1шт.

Выбрано товаров: 93
