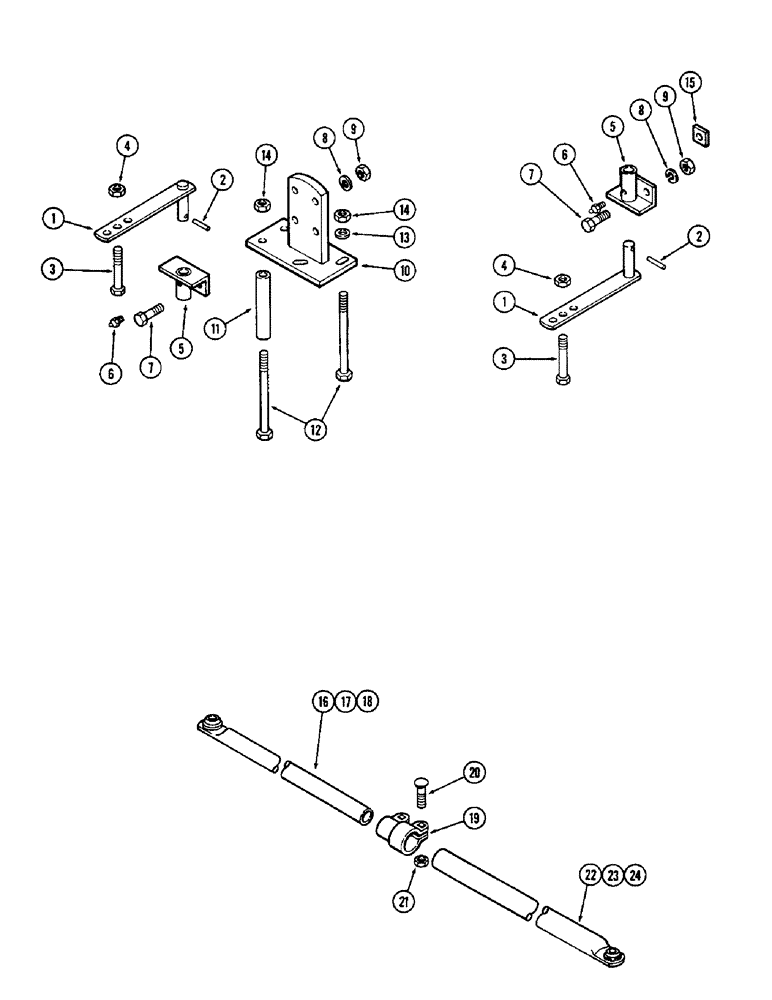

Запчасти Case IH 700-SERIES (14) - STEERING PIPES AND PIVOT

1

T54132

LEVER

1шт.

2

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

3

114-644

BOLT,Hex, 5/8" - 18 x 5", Gr 5

- 5/8 x 5" NF hex (Grade 5)

1шт.

4

131-689

LOCK NUT,5/8"-11, GB

NUT - lock 5/8" NF hex

1шт.

5

T54131

PIVOT - lever

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

114-601

BOLT

BOLT - 5/8 x 2-1/2" NF hex (Grade 5)

2шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

129-127

NUT,5/8"-18, G5

2шт.

10

T54134

BRACKET

- pivot (Shear Bolt and Cushion Trip only)

1шт.

11

T54135

SPACER - (Shear Bolt and Cushion Trip only)

1шт.

12

116-602

BOLT,Hex, 5/8" - 18 x 10-1/4", Gr 8

- 5/8 x 10-1/4" NF hex (Grade 8)

4шт.

13

195-541

WASHER,5/8", SAE

- 1-5/16 x 21/32 x 1/8"

2шт.

14

131-1250

NUT - lock 5/8" NF hex

4шт.

15

T54133

BLOCK - spacer

1шт.

16

54112

PIPE - steering internal (110-1/2") (700-19, 700-29, 700-39, 700-110, 700-210, 700-310)

1шт.

17

T54129

PIPE - steering internal (98-1/2") (700-16, 700-17, 700-19, 700-26, 700-27, 700-29, 700-36, 700-37, 700-39, 700-110, 700-210, 700-310)

1шт.

17

T54129

PIPE - steering internal (98-1/2") (700-18, 700-28, 700-38)

2шт.

18

T54137

PIPE - steering internal (72-1/2") (700-16, 700-17, 700-26, 700-27, 700-36, 700-37)

1шт.

19

T54113

CLAMP - pipe

2шт.

20

111-628

BOLT - 5/8 x 3" NC carriage (Grade 5)

4шт.

21

129-107

NUT,5/8"-11, G5

4шт.

22

T54111

PIPE - steering external (140-1/2") (700-19, 700-29, 700-39, 700-110, 700-210, 700-310) 140.5" L

1шт.

23

T54130

PIPE - steering external (104-1/2") (700-16, 700-17, 700-19, 700-26, 700-27, 700-29, 700-36, 700-37, 700-39, 700-110, 700-210, 700-310)

1шт.

23

T54130

PIPE - steering external (104-1/2") (700-18, 700-28, 700-38)

2шт.

24

T54136

PIPE - steering external (74-1/2") (700-16, 700-17, 700-26, 700-27, 700-36, 700-37)

1шт.
