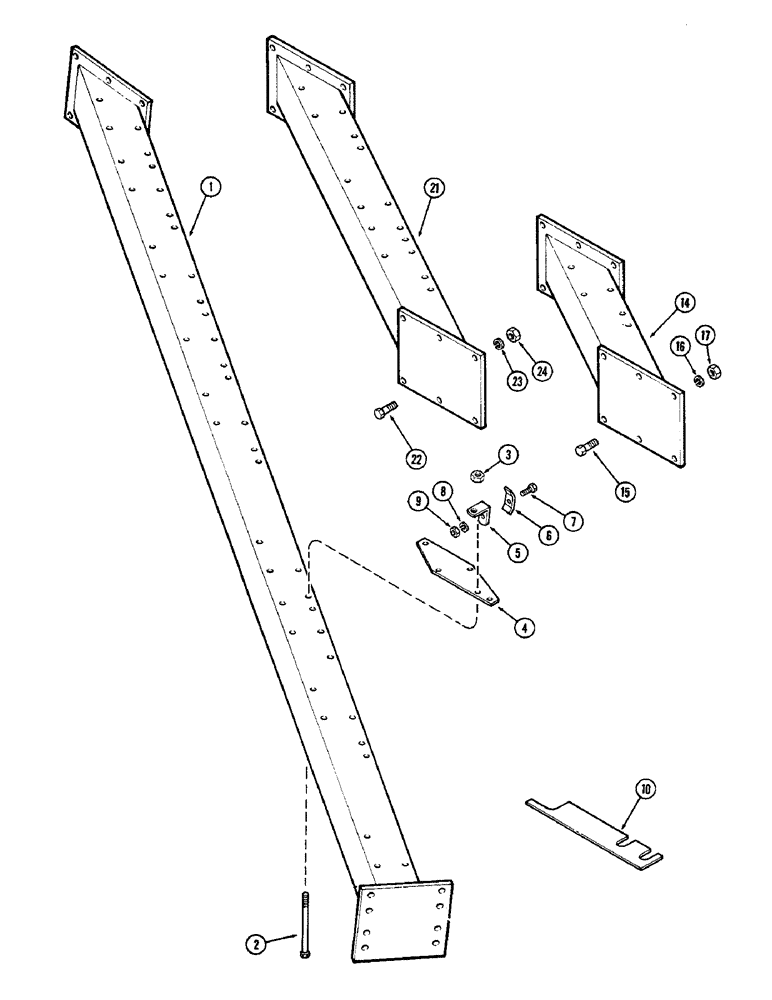

Запчасти Case IH 700-SERIES (10) - BEAM, SHEAR BOLT AND CUSHION TRIP

1

T54102

BEAM - six bottom

1шт.

2

114-648

BOLT,Hex, 5/8" - 18 x 9-3/4", Gr 8

- 5/8 x 9-3/4" NF hex (Grade 8)

24шт.

3

131-1250

NUT - lock 5/8" NF hex

24шт.

4

T54501

PLATE - washer

6шт.

5

T54124

HANGER - pipe

2шт.

6

T54125

CLAMP - pipe hanger

2шт.

7

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

T54128

SHIM - beam

4шт.

14

T54103

EXTENSION - beam BEAM EXTENSION ONE BOTTOM

1шт.

15

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Beam extension one bottom Hex, 3/4"-10 x 2 1/4", G5

6шт.

16

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Beam extension one bottom 3/4"

6шт.

17

129-108

NUT,3/4"-10, G5

Beam extension, One bottom 3/4"-10, G5

6шт.

21

T55349

EXTENSION - beam TWO BOTTOM

1шт.

22

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Two bottom Hex, 3/4"-10 x 2 1/4", G5

12шт.

23

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Two bottom 3/4"

12шт.

24

129-108

NUT,3/4"-10, G5

Two bottom 3/4"-10, G5

12шт.
