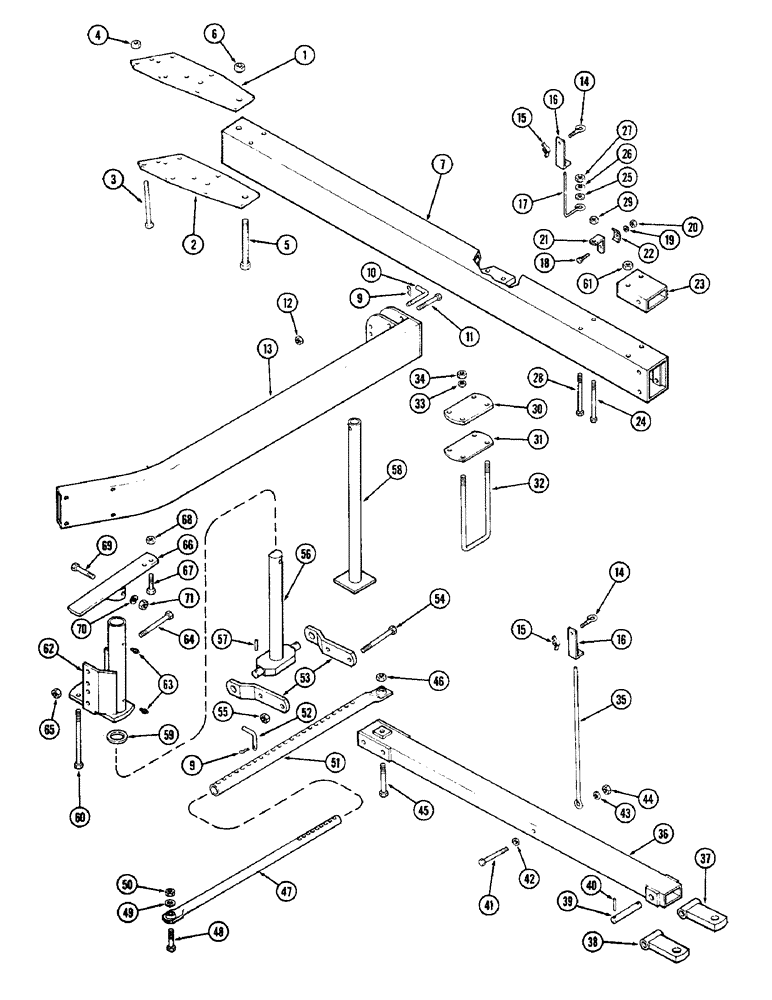

Запчасти Case IH 700-SERIES (04) - HITCH AND DRAWBAR, CONTINUED

45

114-731

BOLT,Hex, 3/4" - 16 x 6-1/2", Gr 5

- 3/4 x 6-1/2" NF hex (Grade 5)

1шт.

46

131-1172

LOCK NUT,3/4"-16, GA

NUT - lock 3/4" NF hex

1шт.

47

T55368

TUBE - steering internal

1шт.

48

114-720

BOLT,Hex, 3/4" - 16 x 4", Gr 5

- 3/4 x 4" NF hex (Grade 5)

1шт.

49

195-545

WASHER,3/4", SAE

- 1-15/32 x 13/16" x 9 gauge

1шт.

50

131-1172

LOCK NUT,3/4"-16, GA

NUT - lock 3/4" NF hex

1шт.

51

T55387

TUBE - steering external

1шт.

52

T54217

PIN - lock

1шт.

53

T55373

STRAP - hammer

2шт.

54

113-791

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- 3/4 x 8-1/2" NC hex (Grade 5)

2шт.

55

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

56

T55370

POST - pivot

1шт.

57

138-209

LOCK PIN,1/2" x 2 3/4", Slotted

1/2" x 2 3/4", Slotted

2шт.

58

T55420

STAND

1шт.

59

T54159

WASHER

- wear

1шт.

60

15-12208

BOLT - 3/4 x 13" NC hex (Grade 5)

2шт.

61

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

62

T55375

PIVOT - hitch

1шт.

63

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

64

117-610

BOLT - 3/4 x 8" NC square head (Grade 5) Sq Hd, 3/4"-10 x 8", G5

3шт.

65

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

3шт.

66

T54290

ARM

- steering

1шт.

67

114-615

BOLT,Hex, 5/8" - 18 x 3-1/4", Gr 5

- 5/8 x 3-1/4" NF hex (Grade 5)

1шт.

68

131-689

LOCK NUT,5/8"-11, GB

NUT - lock 5/8" NF hex

1шт.

69

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

70

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

71

129-108

NUT,3/4"-10, G5

1шт.
