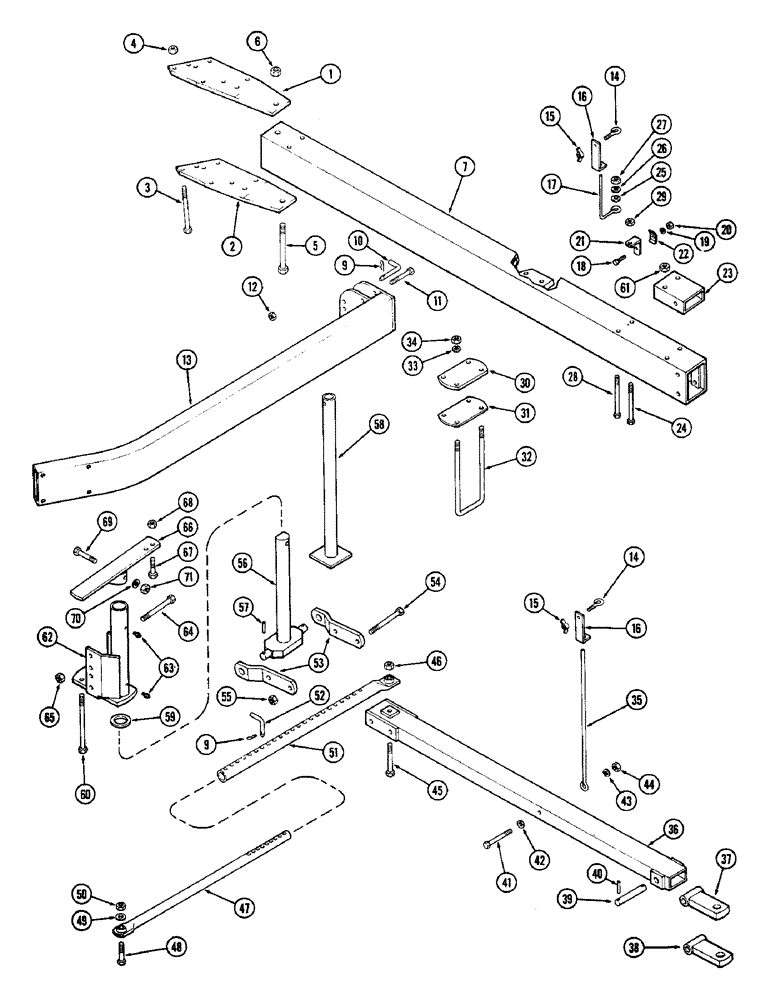

Запчасти Case IH 700-SERIES (02) - HITCH AND DRAWBAR

1

T55380

PLATE - drawbar upper

1шт.

2

T55381

PLATE - drawbar lower

1шт.

3

116-602

BOLT,Hex, 5/8" - 18 x 10-1/4", Gr 8

- 5/8 x 10-1/4" NF hex (Grade 8)

3шт.

4

131-1171

LOCK NUT,5/8"-18, GB

NUT, LOCK, 5/8"-18, GB

3шт.

5

113-935

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

- 1 x 10-1/2" NC hex (Grade 5)

1шт.

6

131-1194

LOCK NUT,1 1/4"-12, GA

NUT - lock 1" NC hex

1шт.

7

T55374

DRAWBAR

1шт.

9

B17308

CLIP

COTTER

2шт.

10

T54156

PIN

1шт.

11

114-644

BOLT,Hex, 5/8" - 18 x 5", Gr 5

- 5/8 x 5" NF hex (Grade 5)

1шт.

12

131-1171

LOCK NUT,5/8"-18, GB

NUT, LOCK, 5/8"-18, GB

1шт.

13

T55419

BRACE - front

1шт.

14

T54171

EYEBOLT

2шт.

15

129-410

WING NUT,3/8"-16

NUT - wing 3/8"

2шт.

16

T54168

CLAMP - hose

2шт.

17

T54170

ROD - support

1шт.

18

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

21

T54124

HANGER - pipe

2шт.

22

T54125

CLAMP - pipe hanger

2шт.

23

T55376

SPACER - hitch

1шт.

24

113-2621

BOLT,Hex, 5/8" - 11 x 9-1/2", Gr 5

- 5/8 x 9-1/2" NC hex (Grade 5)

1шт.

25

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

1шт.

26

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

27

129-107

NUT,5/8"-11, G5

1шт.

28

117-505

BOLT,Sq Hd, 5/8" - 11 x 9", Gr 5

- 5/8 x 9" NC square head (Grade 5)

2шт.

29

129-107

NUT,5/8"-11, G5

2шт.

30

T55366

CLAMP - plate

1шт.

31

T55369

PLATE - tie

1шт.

32

T54164

U-BOLT

2шт.

33

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

34

129-108

NUT,3/4"-10, G5

4шт.

35

T55418

SUPPORT - rod

1шт.

36

T55372

EXTENSION - drawbar

1шт.

37

T55351

CLEVIS - hitch with 1-9/16" hole

1шт.

38

T55352

CLEVIS - hitch with 1-13/16" hole

1шт.

39

T55371

PIN - clevis

1шт.

40

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

2шт.

41

114-631

BOLT - 5/8 x 6-1/2" NF hex (Grade 5) Hex, 5/8"-18 x 6 1/2", G5

1шт.

42

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

1шт.

43

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

44

129-127

NUT,5/8"-18, G5

1шт.
