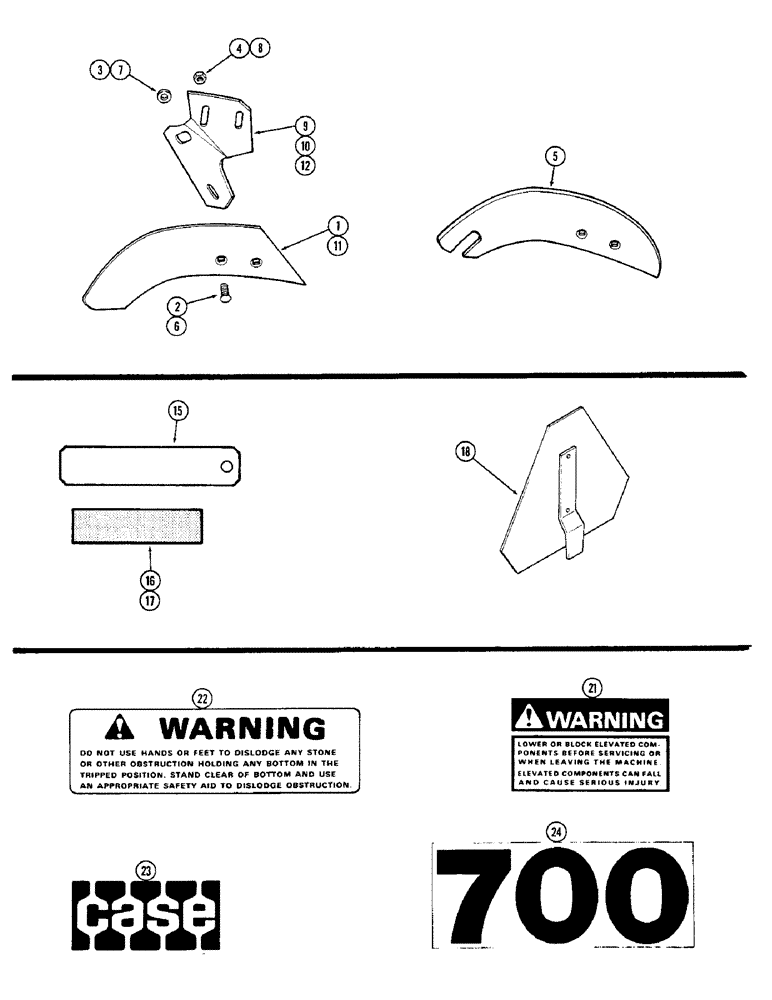

Запчасти Case IH 700-SERIES (42) - TRASHBOARDS, GENERAL PURPOSE BOTTOM

1

T54227

BOTTOM

TRASHBOARD - metal

1шт.

2

118-138

PLOW BOLT,3/8"-16 x 1 1/4", G5

BOLT - plow 3/8 x 1-1/4" NC (Grade 5)

2шт.

3

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge

2шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

5

T54457

BOARD

TRASHBOARD - plastic

1шт.

6

118-136

PLOW BOLT,3/8"-16 x 1 1/2", G5

BOLT - plow 3/8 x 1-1/2" NC (Grade 5)

2шт.

7

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge

2шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

9

T54228

BRACKET

- trashboard

1шт.

10

T54456

BRACKET

- trashboard (18" heavy duty bottom)

1шт.

2

118-138

PLOW BOLT,3/8"-16 x 1 1/4", G5

BOLT - plow 3/8 x 1-1/4" NC (Grade 5) STUBBLE BOTTOM

2шт.

3

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge STUBBLE BOTTOM

2шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Stubble bottom 3/8"-16, G5

2шт.

11

T54229

BOTTOM

TRASHBOARD STUBBLE BOTTOM

1шт.

12

T54230

BRACKET - trashboard STUBBLE BOTTOM

1шт.

15

T54248

BRACKET - reflector REFLECTORS AND SMV SYMBOL

1шт.

16

T54250

REFLECTOR - red REFLECTORS AND SMV SYMBOLS

2шт.

17

T54249

REFLECTOR - amber REFLECTOR AND SMV SYMBOL

1шт.

18

A59450

WARNING SIGN

SYMBOL - SMV REFLECTOR AND SMV SYMBOL

1шт.

21

321-3890

DECAL

- Warning

3шт.

22

321-3346

DECAL - Warning Spring Automatic Reset

1шт.

23

321-2675

DECAL

- Case

2шт.

24

321-3987

DECAL - Model 700

1шт.
