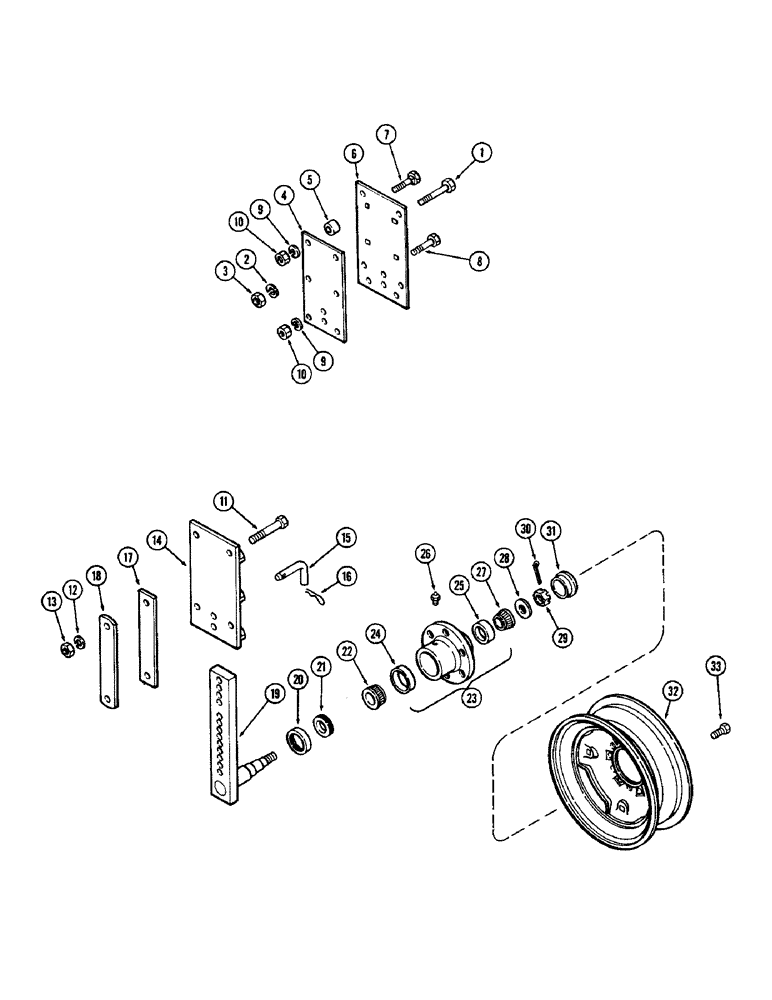

Запчасти Case IH 700-SERIES (34) - GAUGE WHEEL

1

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

2

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

129-107

NUT,5/8"-11, G5

4шт.

4

T56228

GUIDE

- gauge wheel

1шт.

5

T56229

SPACER

6шт.

6

T56227

BRACKET

- gauge wheel

1шт.

7

118-426

BOLT,5/8"-11 x 3", G8

BOLT - plow 5/8 x 3" NC (Grade 8)

4шт.

8

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

10

129-107

NUT,5/8"-11, G5

6шт.

11

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

12

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

129-107

NUT,5/8"-11, G5

4шт.

14

T54215

BRACKET

- gauge wheel

1шт.

15

T54217

PIN

1шт.

16

B17308

CLIP

COTTER

1шт.

17

T54219

SPACER

1шт.

18

T54218

STRAP - clamp

2шт.

19

T54216

SPINDLE

SLIDE AND SPINDLE

1шт.

20

T54259

SLEEVE

- wear

1шт.

21

T54260

SEAL

SEAL - oil

1шт.

22

T54090

BEARING CUP,63 mm OD x 13.5 mm

CONE - bearing inner 1-1/2" ID (38.1 MM)

1шт.

23

T54261

HUB

ASSEMBLY - with cups

1шт.

24

T54089

ROLLER BEARING,38 mm ID x 17.076 mm

CUP - bearing inner 2-31/64" OD (63.1 MM)

1шт.

25

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer 2-5/16" OD (58.7 MM)

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

27

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer 1-1/4" ID (31.8 MM)

1шт.

28

T54256

WASHER

- bearing

1шт.

29

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

1шт.

30

132-311

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

31

T23707

CAP

- hub

1шт.

32

A57879

RIM

WHEEL - 15 x 8"

1шт.

33

A29912

BOLT

BOLT - wheel

6шт.
