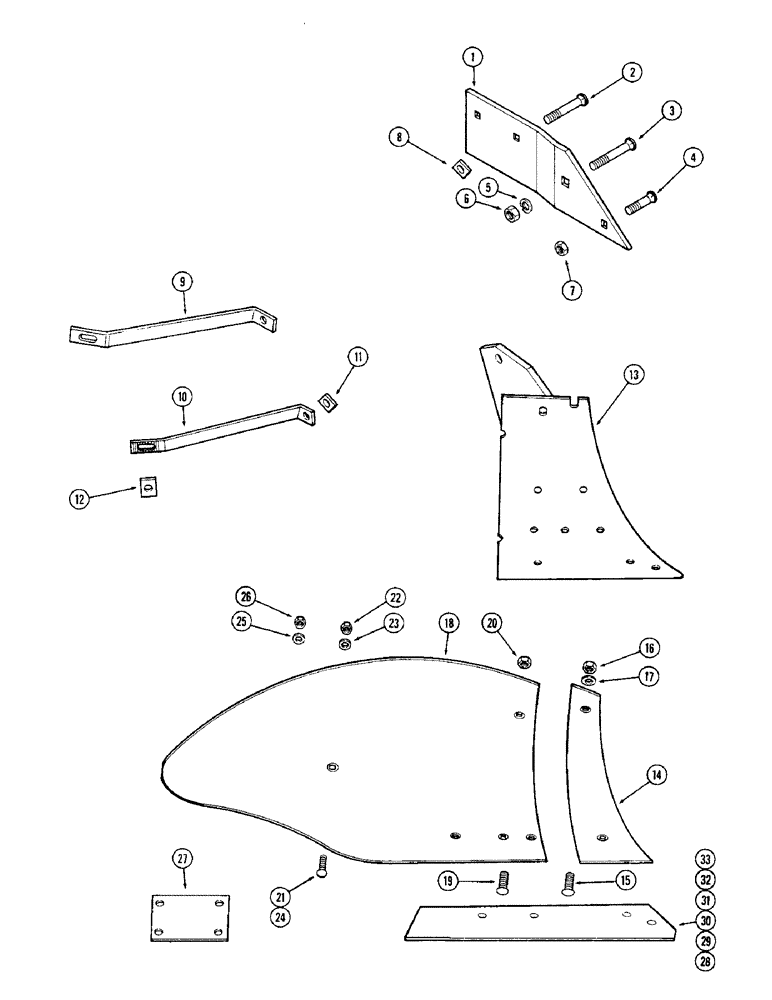

Запчасти Case IH 700-SERIES (28) - BOTTOM, 18 INCH STUBBLE

1

T54235

LANDSIDE

1шт.

2

118-426

BOLT,5/8"-11 x 3", G8

BOLT - plow 5/8 x 3" NC (Grade 8)

1шт.

3

118-417

PLOW BOLT,5/8"-11 x 2 3/4", G5

BOLT - plow 5/8 x 2-3/4" NC (Grade 5)

1шт.

4

118-419

PLOW BOLT,5/8"-11 x 1 3/4", G5

BOLT - plow 5/8 x 1-3/4" NC (Grade 5)

1шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

129-107

NUT,5/8"-11, G5

2шт.

7

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" NC hex

1шт.

8

T55455

SPACER - 3/4 x 2"

1шт.

9

T54247

BRACE

-, Serial Range: standard-plate

1шт.

10

T54243

BRACE

- moldboard

1шт.

11

T55456

SPACER - 3/8 x 1-1/2"

1шт.

12

T52460

WASHER

1шт.

13

T54244

SUPPORT ASSY.

STANDARD

1шт.

14

T63186

SHIN

PLATE ASSEMBLY

1шт.

15

T54432

PLOW BOLT

BOLT - plow 7/16 x 1-1/4" NC (Grade 5)

2шт.

16

129-104

NUT,7/16"-14, G5

2шт.

17

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

2шт.

18

T63187

MOLDBOARD ASSEMBLY

1шт.

19

T54236

PLOW BOLT

BOLT - plow 7/16 x 1-1/4" NC (Grade 5)

5шт.

20

129-104

NUT,7/16"-14, G5

5шт.

21

T54237

PLOW BOLT

BOLT - plow 7/16 x 1-1/2" NC (Grade 5)

1шт.

22

131-667

NUT,7/16"-14, GB

NUT - lock 7/16" NC hex

1шт.

23

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

1шт.

24

118-218

BOLT

- plow 7/16 x 2" NC (Grade 5), Serial Range: (Moldboard-brace)

1шт.

25

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

26

129-104

NUT,7/16"-14, G5

1шт.

27

T54246

PLATE

-, Serial Range: moldboard-share

1шт.

28

T63097

SHARE

ASSEMBLY - regular with nuts

1шт.

29

T63132

SHARE

ASSEMBLY - short with nuts

1шт.

30

T63200

SHARE

ASSEMBLY - long with nuts

1шт.

31

T63284

SHARE

ASSEMBLY - flat regular with nuts

1шт.

T52464

NUT

- 7/16" NC hex LH

4шт.

T52465

NUT

- 1/2" NC hex LH

1шт.

32

T63133

SHARE

ASSEMBLY - upset nose with nuts

1шт.

T52465

NUT

- 1/2" NC hex LH

5шт.

33

T63206

SHARE

- hard surface deep suck less bolts

1шт.
