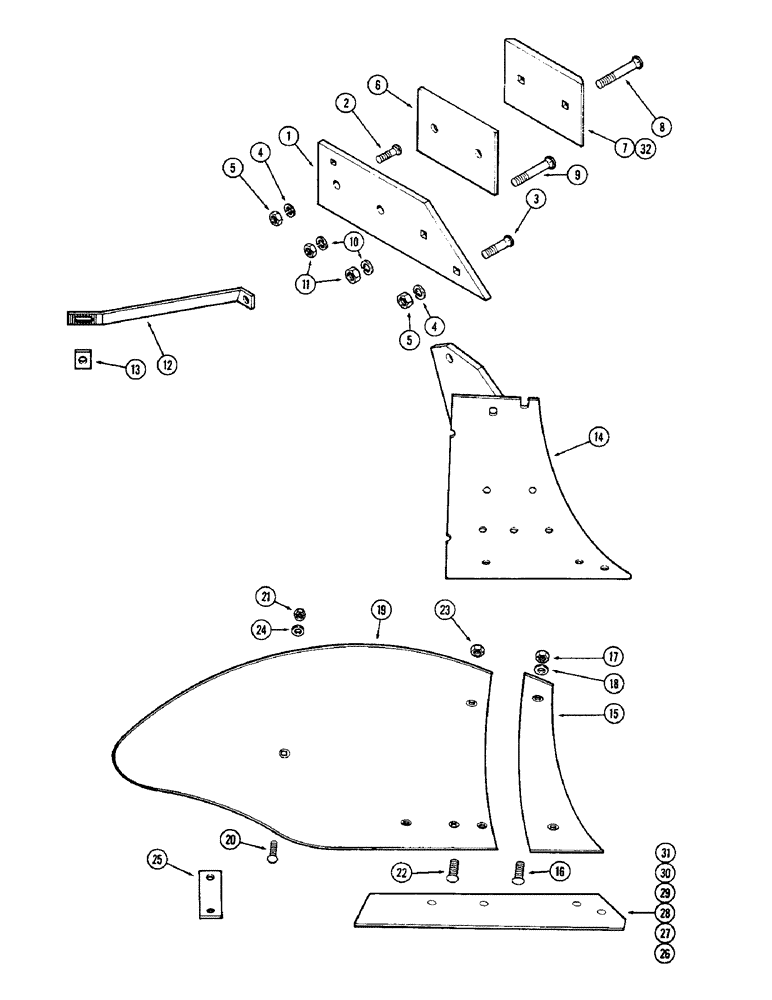

Запчасти Case IH 700-SERIES (26) - BOTTOM, 18 INCH GENERAL PURPOSE, HEAVY DUTY

1

T54272

LANDSIDE

1шт.

2

118-326

PLOW BOLT,1/2"-13 x 2 1/4", G5

BOLT - plow 1/2 x 2-1/4" NC (Grade 5)

1шт.

3

118-325

BOLT - plow 1/2 x 1-3/4" NC (Grade 5)

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

6

T55457

SPACER

- landside

1шт.

7

T54273

PAD

- landside 9/16"

1шт.

8

118-416

PLOW BOLT,5/8"-11 x 2 1/2", G5

BOLT - plow 5/8 x 2-1/2" NC (Grade 5)

2шт.

9

118-426

BOLT,5/8"-11 x 3", G8

BOLT - plow 5/8 x 3" NC (Grade 8)

1шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

11

129-107

NUT,5/8"-11, G5

3шт.

12

T54271

BRACE

- moldboard

1шт.

13

T52460

WASHER

1шт.

14

T54266

SUPPORT ASSY.

STANDARD

1шт.

15

T63184

SHIN

PLATE ASSEMBLY

1шт.

16

T54432

PLOW BOLT

BOLT - plow 7/16 x 1-1/4" NC (Grade 5)

2шт.

17

129-104

NUT,7/16"-14, G5

2шт.

18

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

2шт.

19

T63242

MOLDBOARD

ASSEMBLY

1шт.

20

T54237

PLOW BOLT

BOLT - plow 7/16 x 1-1/2" NC (Grade 5)

1шт.

21

131-667

NUT,7/16"-14, GB

NUT - lock 7/16" NC hex

1шт.

22

T54236

PLOW BOLT

BOLT - plow 7/16" x 1-1/4" NC (Grade 5)

5шт.

23

129-104

NUT,7/16"-14, G5

5шт.

24

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

1шт.

25

T54269

STRAP

-, Serial Range: moldboard-share

1шт.

26

T63097

SHARE

ASSEMBLY - regular with nuts

1шт.

27

T63132

SHARE

ASSEMBLY - short with nuts

1шт.

28

T63200

SHARE

ASSEMBLY - long with nuts

1шт.

29

T63284

SHARE

ASSEMBLY - flat regular with nuts

1шт.

T52464

NUT

- 7/16" NC hex LH

4шт.

T52465

NUT

- 1/2" NC hex LH

1шт.

30

T63133

SHARE

ASSEMBLY - upset nose with nuts

1шт.

T52465

NUT

- 1/2" NC hex LH

5шт.

31

T63206

SHARE

- hard surface deep suck less bolts

1шт.

32

T56680

PAD

- landside 3/4" (See Note)

1шт.
