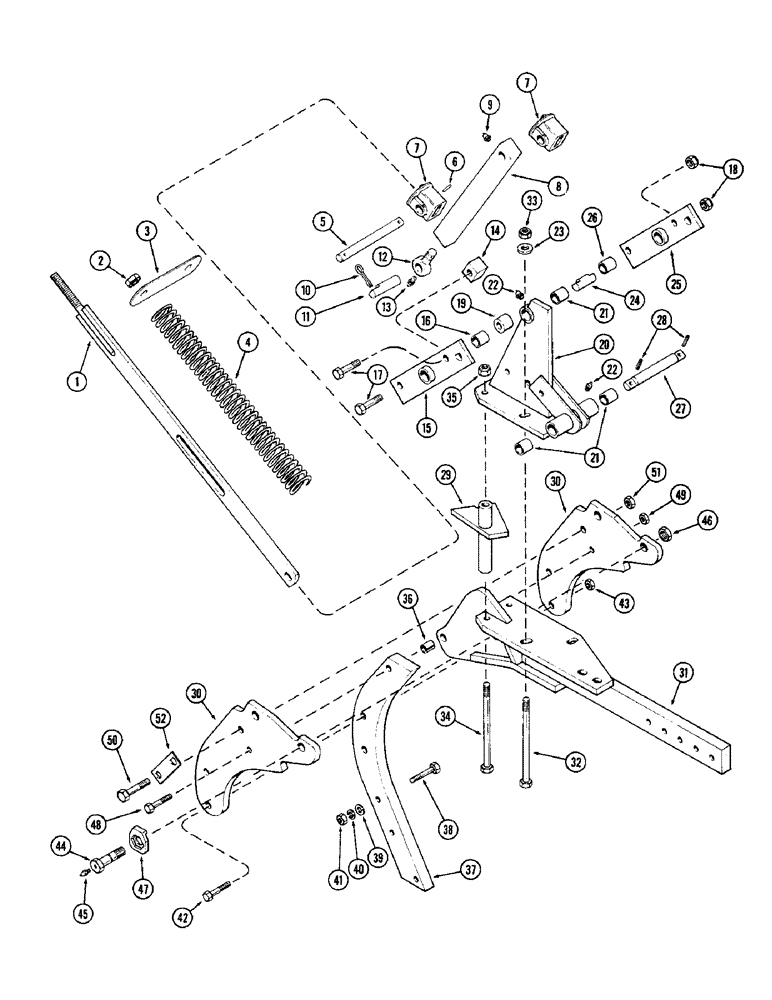

Запчасти Case IH 700-SERIES (18) - SPRING AUTOMATIC RESET BEAM

1

T54148

GUIDE

- spring

2шт.

2

129-108

NUT,3/4"-10, G5

2шт.

3

T54153

PLATE - spring

1шт.

4

T54152

SPRING - reset

2шт.

5

T54151

PIN - trunnion

1шт.

6

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

2шт.

7

T54149

TRUNNION - spring

2шт.

8

T54144

LINK

- beam

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

10

T51753

PIN

1шт.

11

T54189

PIN

- cylinder

1шт.

12

T54145

END

- rod

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

14

T54147

STOP

1шт.

15

T54139

PLATE

ASSEMBLY - latch RH

1шт.

16

T54142

BUSHING

1шт.

17

114-716

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

- 3/4 x 2-3/4" NF hex (Grade 5)

2шт.

18

131-73

NUT,3/4"-16

NUT - lock 3/4" NF hex

2шт.

19

T54146

SPACER

1шт.

20

T54138

SUPPORT ASSEMBLY

1шт.

21

T54142

BUSHING

3шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

23

T54187

WASHER

2шт.

24

T54143

PIN

- upper

1шт.

25

T54140

PLATE

ASSEMBLY - latch LH

1шт.

26

T54142

BUSHING

1шт.

27

T54150

PIN - spring guide

1шт.

28

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

2шт.

29

T54188

SPACER

- stop

1шт.

30

T54107

PLATE - gusset

2шт.

31

T54104

BEAM

1шт.

32

113-2621

BOLT,Hex, 5/8" - 11 x 9-1/2", Gr 5

- 5/8 x 9-1/2" NC hex (Grade 5)

1шт.

33

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

34

116-602

BOLT,Hex, 5/8" - 18 x 10-1/4", Gr 8

- 5/8 x 10-1/4" NF hex (Grade 8)

4шт.

35

131-1250

NUT - lock 5/8" NF hex

4шт.

36

T54109

BUSHING

- shear bolt

1шт.

37

T54105

BEAM

- foot

1шт.

38

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

2шт.

REF#38 ANOTHER BOLT USED(NOT A SUB) 26-1048

1шт.

39

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

2шт.

40

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

41

129-127

NUT,5/8"-18, G5

2шт.

42

114-710

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 8

- 3/4 x 3-1/4 NF hex (Grade 8)

2шт.

43

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

2шт.

44

T55049

SCREW

BOLT - pivot 1 x 3-1/2" NF

1шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

46

131-39

NUT,1"-14

NUT - lock 1" NF hex

1шт.

47

T54108

LOCKING DEVICE

KEEPER - bolt

1шт.

48

114-306

BOLT,Hex, 7/16" - 20 x 3", Gr 5

- 7/16 x 3" NF hex (Shear Bolt) (Grade 5)

1шт.

49

425-117

NUT,7/16"-20, G5

- 7/16" NF hex

1шт.

50

114-726

BOLT - 3/4 x 3-1/2" NF hex (Grade 8) Hex, 3/4-16 x 3 1/2", G8

1шт.

51

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

52

T54106

PLATE - lock

1шт.
