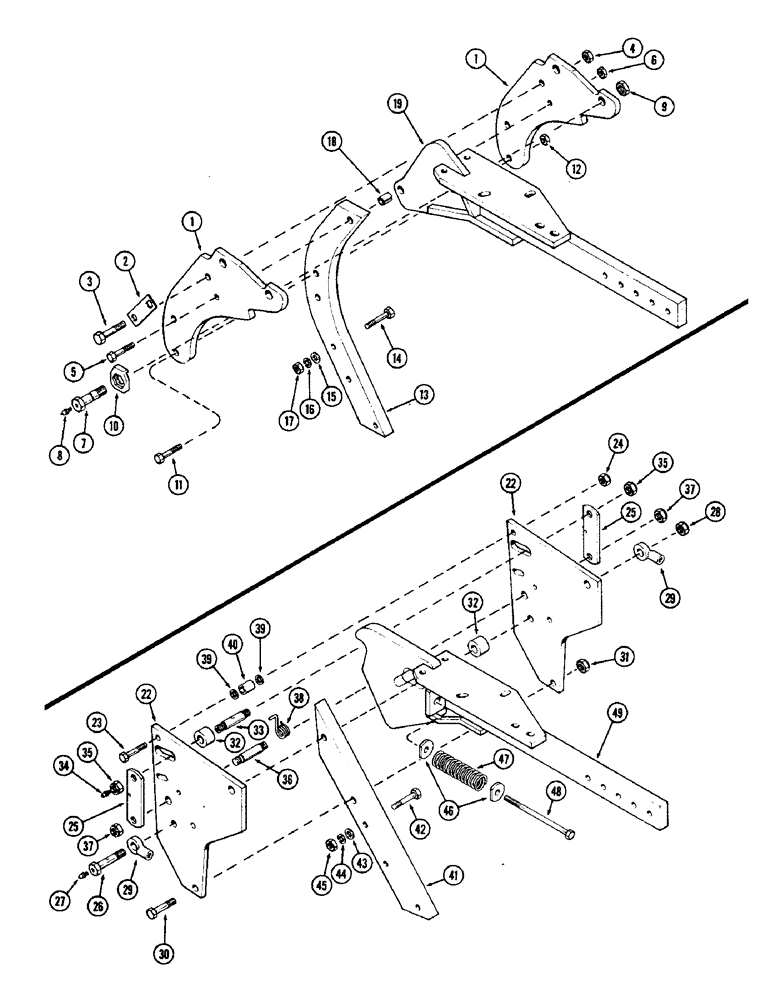

Запчасти Case IH 700-SERIES (16) - SHEAR BOLT BEAM

1

T54107

PLATE - gusset

2шт.

2

T54106

PLATE - lock

1шт.

3

114-726

BOLT - 3/4 x 3-1/2" NF hex (Grade 8) Hex, 3/4-16 x 3 1/2", G8

1шт.

4

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

5

114-306

BOLT,Hex, 7/16" - 20 x 3", Gr 5

- 7/16 x 3" NF hex (Shear Bolt) (Grade 5)

1шт.

6

425-117

NUT,7/16"-20, G5

- 7/16" NF hex

1шт.

7

T55049

SCREW

BOLT - pivot 1 x 3-1/2" NF

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

9

131-39

NUT,1"-14

NUT - lock 1" NF hex

1шт.

10

T54108

LOCKING DEVICE

KEEPER - bolt

1шт.

11

114-710

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 8

- 3/4 x 3-1/4" NF hex (Grade 8)

2шт.

12

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

2шт.

13

T54105

BEAM

- foot

1шт.

14

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

2шт.

REF#14 ANOTHER BOLT USED (NOT A SUB) 26-1048

1шт.

15

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

2шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

129-127

NUT,5/8"-18, G5

2шт.

18

T54109

BUSHING

- shear bolt

1шт.

19

T54104

BEAM

1шт.

22

T54178

PLATE - gusset CUSHION TRIP BEAM

2шт.

23

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

Cushion trip beam Hex, 5/8"-18 x 3", G5

1шт.

24

131-689

LOCK NUT,5/8"-11, GB

NUT - lock 5/8" NF hex CUSHION TRIP BEAM

1шт.

25

T54173

STRAP

- roller CUSHION TRIP BEAM

2шт.

26

T54181

BOLT

- pivot 7/8 x 4-1/4" NF CUSHION TRIP BEAM

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" CUSHION TRIP BEAM

1шт.

28

131-465

LOCK NUT,7/8"-14, G8

NUT - lock 7/8" NF hex CUSHION TRIP BEAM

1шт.

29

T54177

END

- bolt CUSHION TRIP BEAM

2шт.

30

114-710

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 8

- 3/4 x 3-1/4" NF hex (Grade 8) CUSHION TRIP BEAM

2шт.

31

131-690

LOCK NUT,3/4"-16, GB

NUT - lock 3/4" NF hex CUSHION TRIP BEAM

2шт.

32

T54179

ROLLER

- trip CUSHION TRIP BEAM

2шт.

33

T54174

PIN

- shoulder upper CUSHION TRIP BEAM

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" CUSHION TRIP BEAM

1шт.

35

131-73

NUT,3/4"-16

NUT - lock 3/4" NF hex CUSHION TRIP BEAM

2шт.

36

T54175

PIN

- shoulder lower CUSHION TRIP BEAM

1шт.

37

131-73

NUT,3/4"-16

NUT - lock 3/4" NF hex CUSHION TRIP BEAM

2шт.

38

T54180

SPRING

- torsion CUSHION TRIP BEAM

1шт.

39

T54183

WASHER - shim CUSHION TRIP BEAM

2шт.

40

T54182

BUSHING

CUSHION TRIP BEAM

1шт.

41

T54184

BEAM

- foot CUSHION TRIP BEAM

1шт.

42

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

Cushion trip beam Hex, 5/8"-18 x 3", G5

2шт.

43

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge CUSHION TRIP BEAM

2шт.

44

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Cushion trip beam 5/8"

2шт.

45

129-127

NUT,5/8"-18, G5

Cushion trip beam 5/8"-18, G5

2шт.

46

T54186

WASHER

- spring CUSHION TRIP BEAM

4шт.

47

T54204

SPRING

CUSHION TRIP BEAM

2шт.

48

113-2258

BOLT,Hex, 1/2" - 13 x 9-3/4", Gr 5

- 1/2 x 9-3/4" NC hex (Grade 5) CUSHION TRIP BEA

2шт.

49

T54176

BEAM

CUSHION TRIP BEAM

1шт.
