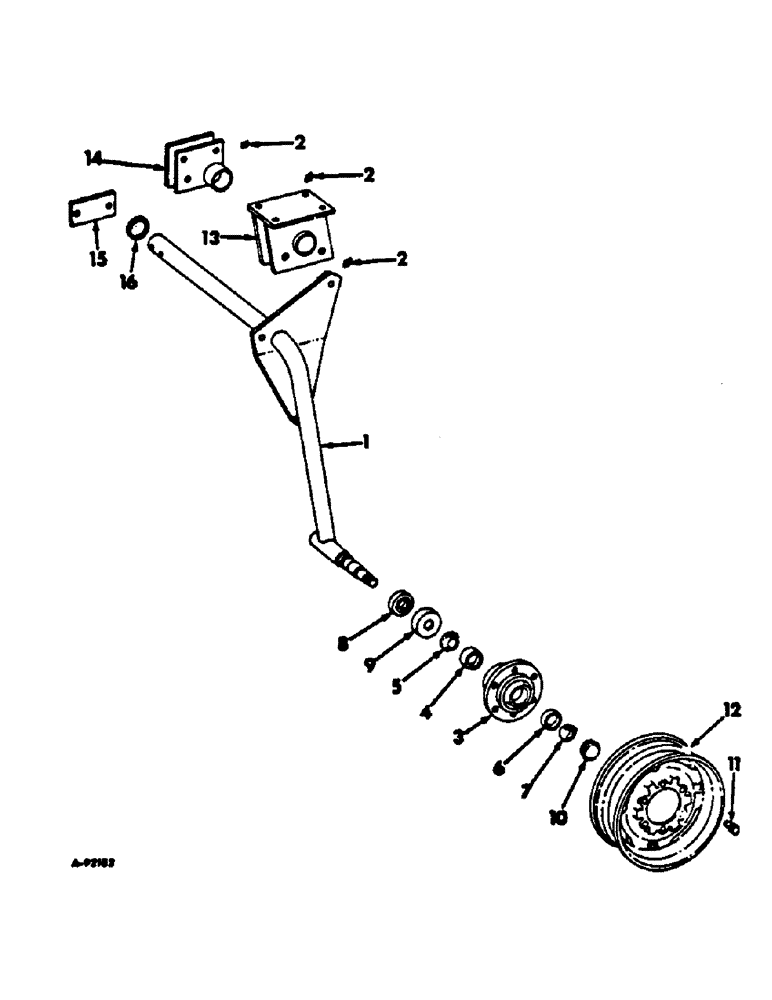

Запчасти Case IH 700 (AK-09) - LAND AXLE, UNITS A THRU M

1

491561R1

AXLE ASSY, land, for units A, B, E, F, J & L

1шт.

1

491566R1

AXLE

ASSY, land, for units C, D, G, H, K & M

1шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 PTF str lub

3шт.

3

465496R11

HUB

ASSY, 6 bolt wheel

1шт.

4

663558R1

BEARING CUP

BEARING, wheel hub inner cup

1шт.

5

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, wheel hub inner cone

1шт.

6

651817R1

BEARING CUP

BEARING, wheel hub outer cup

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub outer cone

1шт.

8

654674R91

OIL SEAL

wheel hub oil

1шт.

9

654675R1

RING

oil seal wear

1шт.

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

29/32 x 1-3/4 x 11 ga

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex. jam

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

10

663906R1

CAP

hub

1шт.

11

665042R1

BOLT, 1/2-20 wheel, replaces 549962R1

6шт.

120371

NUT,1/2"-20, G5

6шт.

12

481344R91

WHEEL

14 in.

1шт.

TIRE, 9.50 x 14 in. 6 ply ribbed

1шт.

TUBE, 9.50 x 14 in.

1шт.

13

491569R1

BEARING ASSY, LH land, for units A, B, E, F, J & L

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 C-Z hex-hd cap

2шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 znd hex-hd cap

2шт.

103046

WASHER, 3/4 C-Z med lock

4шт.

280954

NUT,3/4"-10, G5

4шт.

13

491573R2

HOLDER

BEARING ASSY, LH land, for units C, D, G, H, K, M

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 C-Z hex-hd cap

2шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 znd hex-hd cap

2шт.

103046

WASHER, 3/4 C-Z med lock

4шт.

280954

NUT,3/4"-10, G5

4шт.

14

491576R1

BEARING ASSY, RH land, for units A, B, E & F

1шт.

271794

BOLT,Hex, 3/4" - 16 x 2 1/4", Gr 5

SCREW, 3/4-16 x 2-1/4 znd hex-hd cap

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

103046

WASHER, 3/4 C-Z med lock

1шт.

280954

NUT,3/4"-10, G5

for units C, D, G & H 3/4"-10, G5

1шт.

271794

BOLT,Hex, 3/4" - 16 x 2 1/4", Gr 5

SCREW, 3/4-16 x 2-1/4 znd hex-hd cap

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

103046

WASHER, 3/4 C-Z med lock

1шт.

280954

NUT,3/4"-10, G5

1шт.

14

492369R1

BEARING ASSY, RH land, units J & L

1шт.

271794

BOLT,Hex, 3/4" - 16 x 2 1/4", Gr 5

SCREW, 3/4-16 x 2-1/4 znd hex-hd cap

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

103046

WASHER, 3/4 C-Z med lock

1шт.

280954

NUT,3/4"-10, G5

1шт.

14

492368R1

SUPPORT

BEARING ASSY, RH land, for units K, M

1шт.

271794

BOLT,Hex, 3/4" - 16 x 2 1/4", Gr 5

SCREW, 3/4-16 x 2-1/4 znd hex-hd cap

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

103046

WASHER, 3/4 C-Z med lock

1шт.

280954

NUT,3/4"-10, G5

1шт.

15

491580R1

BAR

SPACER, RH land brg

1шт.

16

491585R1

WASHER, land axle, for units A, B, E, F, J & L

1шт.

21654R1

PIN, SPLIT (COTTER),3/8" x 3"

1шт.

16

491586R1

WASHER

land axle, for units C, D, G, H, K, M

1шт.

22950R1

COTTER PIN,3/8" x 3 1/2"

Pin, Split (Cotter), 3/8" x 3 1/2"

1шт.

101100C92

HUB

PACKAGE, hub & spindle replacement, consists of ref nos. 3 thru 11 and the following parts

1шт.

131626C1

STEERING KNUCKLE

SPINDLE

1шт.

58664C2

TUBE,2.03" ID, 3" OD, 127 mm Length

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT

1шт.
