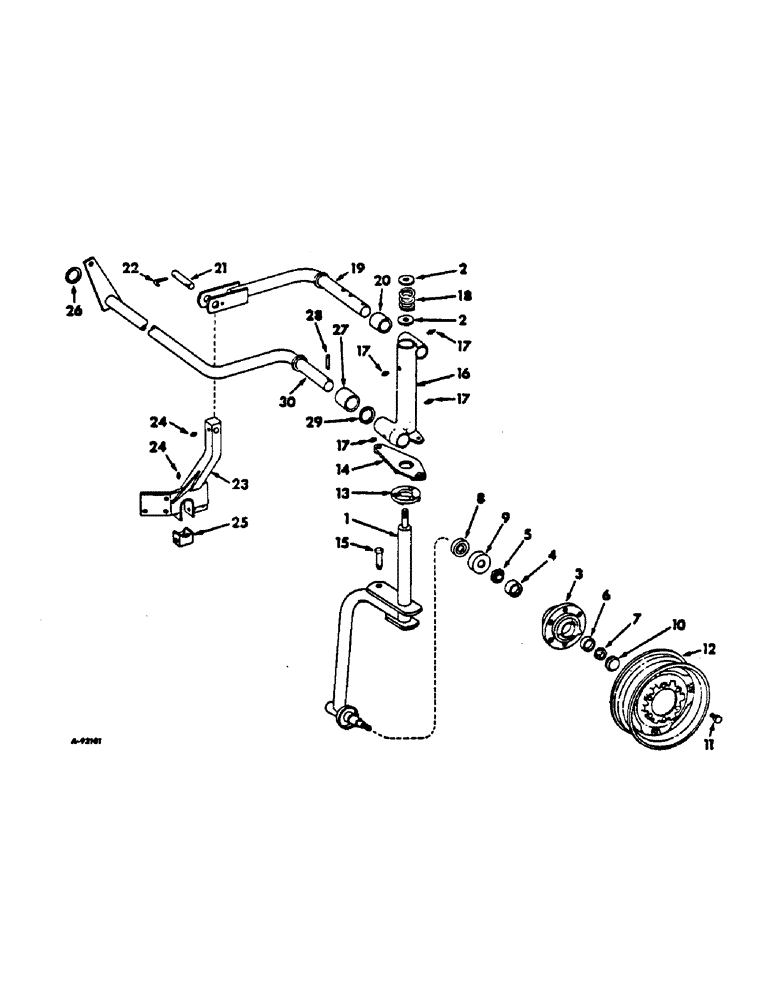

Запчасти Case IH 700 (AK-07) - FRONT FURROW AXLE

1

491547R1

AXLE ASSY, caster wheel

1шт.

2

491554R1

WASHER

retainer

2шт.

21212R1

WASHER

29/32 x 2 x 11 ga C-Z

1шт.

426898

NUT,Jam, 7/8"-9, G5

7/8-9 C-Z hex. jam

2шт.

3

465496R11

HUB

ASSY, 6 bolt wheel

1шт.

4

663558R1

BEARING CUP

BEARING, wheel hub inner cup

1шт.

5

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, wheel hub inner cone

1шт.

6

651817R1

BEARING CUP

BEARING, wheel hub outer cup

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub outer cone

1шт.

8

654674R91

OIL SEAL

wheel hub oil

1шт.

9

654675R1

RING

oil seal wear

1шт.

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

29/32 x 1-3/4 x 11 ga

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex. jam

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

10

663906R1

CAP

hub

1шт.

11

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2-20 wheel

6шт.

12

481344R91

WHEEL

14 in.

1шт.

TIRE, 9.50 x 14 in. 6 ply ribbed

1шт.

TUBE, 9.50 x 14 in.

1шт.

13

491555R1

CAM

caster wheel bottom

1шт.

14

491556R1

CAM

caster wheel top

1шт.

15

486762R1

PIN

lockout

1шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

16

491558R1

HOUSING, front caster wheel

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znp hex-hd cap

1шт.

20033R1

LOCK NUT

NUT, 5/8-11 cdp nylon insert

1шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub

4шт.

18

U13661

VALVE SPRING

SPRING, axle compression

1шт.

19

485647R3

ARM

ASSY, front furrow wheel

1шт.

21719R1

WASHER

2-1/32 x 2-3/4 x 11 ga C-Z

1шт.

21656R1

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

1шт.

20

493745R1

SPACER

front furrow wheel arm, will work for 488439R1

1шт.

21

485644R1

PIN

front furrow wheel arm

1шт.

21652R1

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

1шт.

22

471323R1

LINCH PIN

PIN, front furrow wheel arm lock

1шт.

23

482867R92

SUPPORT

ASSY, outer

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3шт.

103046

WASHER, 3/4 C-Z med lock

3шт.

280954

NUT,3/4"-10, G5

3шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 C-Z hex-hd cap

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

SCREW, 5/8-11 x 5-1/2 C-Z hex-hd cap

2шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 C-Z hex-hd cap

1шт.

20511R1

WASHER, 5/8 zn-pltd med lock

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 28 str lub, outer support assy

2шт.

25

482872R1

CAP

BEARING, outer half

1шт.

26

521159R1

WASHER

2-15/16 x 3 x 11 ga

1шт.

21654R1

PIN, SPLIT (COTTER),3/8" x 3"

1шт.

27

488438R1

SPACER

front lift axle

1шт.

28

482877R1

PIN

front axle

1шт.

21629R1

PIN, 1/8 x 7/8 C-Z self-opening cot.

2шт.

29

482876R1

WASHER

front lift axle

2шт.

30

491559R1

AXLE

ASSY, front furrow, for units C, D, G & H

1шт.

30

482873R92

AXLE ASSY, front furrow, for units A, B, E & F

1шт.

30

492366R1

AXLE ASSY, front furrow, for units J & L

1шт.

30

492364R1

AXLE

ASSY, front furrow, for units K, M, N & P

1шт.
