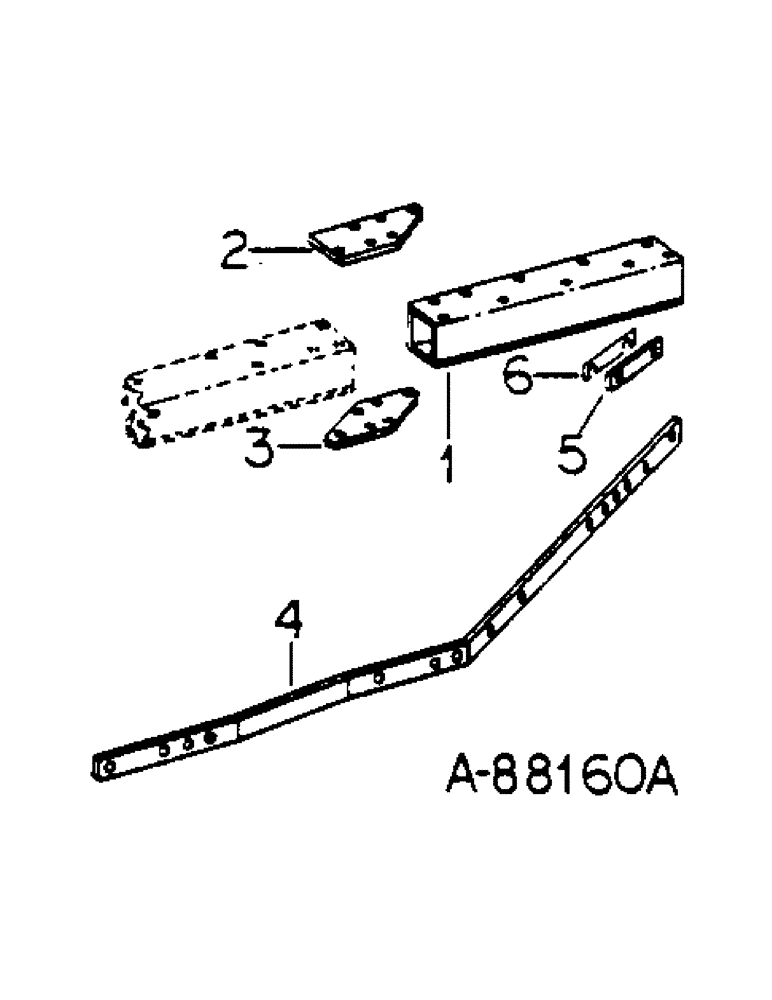

Запчасти Case IH 700 (AK-06) - MAIN FRAME EXTENSION

1

482912R91

TUBE ASSY, main frame rear extension, 16 in. plows, Serial Range: 1968-1971

1шт.

1

489865R1

TUBE ASSY, main frame rear extension, 18 in. plows

1шт.

1

55276C1

TUBE

frame extension, 16 in. plows, 1971 and since

1шт.

2

482915R1

BAR

PLATE, frame splice top, 18 in. plows, 16 in. plows, Serial Range: 1968-1971

1шт.

2

55277C1

PLATE

frame splice top, 16 in. plows, 1971 and since

1шт.

3

482916R1

BAR

PLATE, frame splice bottom, 18 in. plows, 16 in. plows, Serial Range: 1968-1971

1шт.

3

55278C1

PLATE

frame splice bottom, 16 in. plows, 1971 and since

1шт.

21702R1

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

SCREW, 3/4-10 x 8-1/2 C-Z hex-hd cap

6шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z 2 way hex. lock

9шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

4

482781R2

SUPPORT

BAR, rail extension, 16 in. plows

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

4шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

280954

NUT,3/4"-10, G5

5шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 C-Z hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

20511R1

WASHER, 5/8 zn-pltd med lock

4шт.

547213R1

WASHER

1шт.

18755R1

BOLT,Hex, 5/8"-11 x 7 1/2", G5

4шт.

549940R1

SHIM

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 cdp 2-way hex-hd lock

4шт.

4

489851R2

SUPPORT

BRACE, rail extension, 18 in. plows

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

4шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

280954

NUT,3/4"-10, G5

5шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

19865R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW, 5/8-11 x 7-3/4 C-Z hex-hd, for automatic trip, cap, for automatic trip only

2шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8-11 x 7-1/2 C-Z hex-hd cap, for spring trip only

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-z hex., (4) for spring trip, (3) for automatic trip

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 C-Z hex-hd cap, for automatic trip only

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 4 for Spring trip, 3 for Automatic trip 5/8"

1шт.

5

482777R1

BAR

beam spacer

1шт.

6

(Not used in this application)

1шт.
