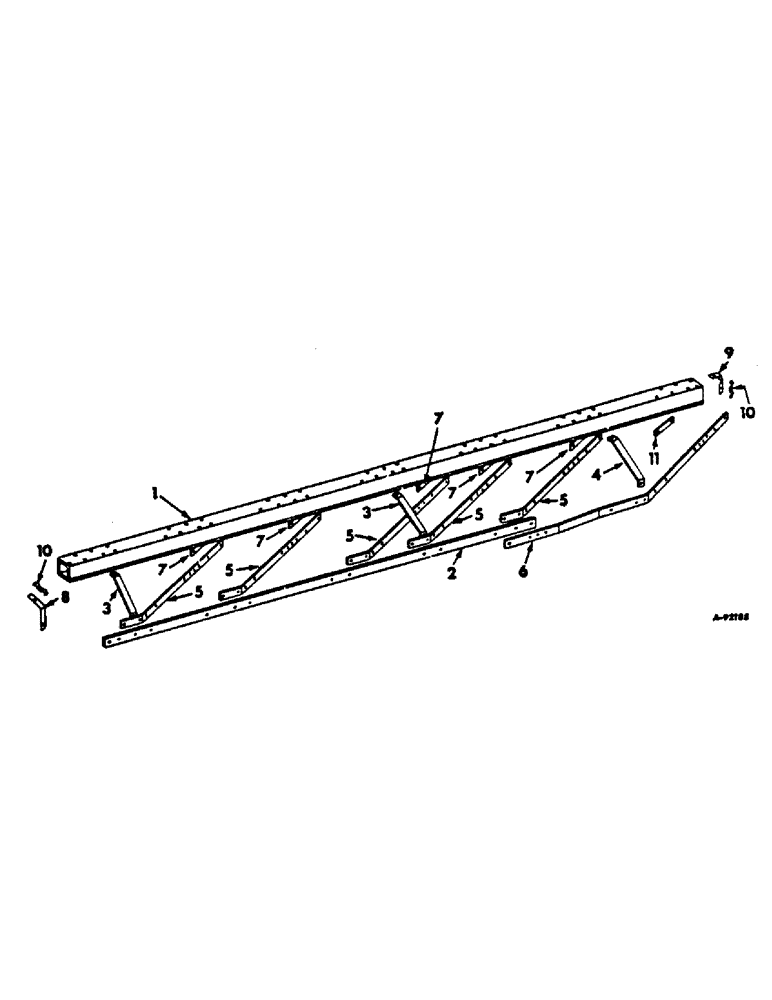

Запчасти Case IH 700 (AK-03) - MAIN FRAME

1

486491R1

TUBE ASSY, main, unit A & E

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 C-Z hex-hd cap, 3 for unit A, 15 for unit E

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8-11 x 7-1/2 C-Z hex-hd cap, one for unit E

1шт.

19865R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW, 5/8-11 x 7-3/4 C-Z hex-hd cap, 9 for unit A

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 12 for Unit A, 16 for Unit E 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 16 for unit E

1шт.

1

486494R1

TUBE ASSY, main, unit B & F

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 C-Z hex-hd cap, 4 for unit B, 18 for unit F

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8-11 x 7 1/2 C-Z hex-hd cap, 2 for for unit F

1шт.

19865R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW, 5/8-11 x 7-3/4 C-Z hex-hd cap, 10 for unit B

1шт.

19995R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

SCREW, 5/8-11 x 8-1/8 C-Z hex-hd cap, one for unit B

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 15 for Unit B, 20 for Unit F 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 20 for unit F

1шт.

1

486497R1

TUBE ASSY, main, unit C & G

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 C-Z hex-hd cap, 4 for unit C, 22 for unit G

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8-11 x 7-1/2 C-Z hex-hd cap, 2 for unit G

1шт.

19865R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW, 5/8-11 x 7-3/4 C-Z hex-hd cap, 13 for unit C

1шт.

19995R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

SCREW, 5/8-11 x 8-1/2 C-Z hex-hd cap, one for unit C

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 18 for Unit C, 24 for Unit G 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 24 for unit G

1шт.

1

489836R1

TUBE ASSY, main, units J & L

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 C-Z hex-hd cap, 4 for unit J, 18 for unit L

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8-11 x 7-1/2 C-Z hex-hd cap, 2 for unit L

1шт.

19865R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW, 5/8-11 x 7-3/4 C-Z hex-hd cap, 10 for unit J

1шт.

19995R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

SCREW, 5/8-11 x 8-1/2 C-Z hex-hd cap, one for unit J

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 15 for Unit J, 20 for Unit L 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 15 for unit J, 20 for unit L

1шт.

1

489837R1

TUBE ASSY, main, units K & M

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 C-Z hex-hd cap, 4 for unit K, 22 for unit M

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8-11 x 7-1/2 C-Z hex-hd cap, 2 for unit M

1шт.

19865R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW 5/8-11 x 7-3/4 C-Z hex-hd cap, 13 for unit K

1шт.

19995R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

SCREW, 5/8-11 x 8-1/2 C-Z hex-hd cap, one for unit K

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 15 for Unit J, 24 for Unit M 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 15 for unit J, 24 for unit M

1шт.

1

486749R1

FRAME ASSY, main, for units D & H, Serial Range: 1968-1971

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 C-Z hex-hd cap, 5 for unit D, 25 for unit H

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8-11 x 7-1/2 C-Z hex-hd cap, 3 for unit H

1шт.

19865R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW, 5/8-11 x 7-3/4 C-Z hex-hd cap, 15 for unit D

1шт.

19995R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

SCREW, 5/8-11 x 8-1/2 X-Z hex-hd cap, one for unit D

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 21 for Unit D, 28 for Unit H 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 28 for unit H

1шт.

1

55284C1

FRAME ASSY, main, for units D & H, 1971 and since

1шт.

18551R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

SCREW, 5/8-11 x 8 hex-hd cap, 7 for unit D, 4 for unit H

1шт.

18755R1

BOLT,Hex, 5/8"-11 x 7 1/2", G5

24 for unit H Hex, 5/8"-11 x 7 1/2", G5

1шт.

21259R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW, 5/8-11 x 7-3/4 hex-hd cap, 4 for unit D

1шт.

20331R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

SCREW, 5/8-11 x 8-1/2 hex-hd cap, 10 for unit D

1шт.

517668R1

SPACER,3/4" Pipe x 5 1/8"

3/4 x 5-1/8 std pipe

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 cdp two-way lock, 21 for units D, 28 for unit H

1шт.

549940R1

SHIM, pivot bracket, 7 for units D & N, 8 for unit P

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z, 7 for unit H

1шт.

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

main frame, 3 for units D & N, 9 for unit H, 4 for unit P

1шт.

1

56649C91

FRAME

ASSY, main, for unit N

1шт.

1

56652C91

FRAME

ASSY, main, for unit P

1шт.

18551R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

SCREW, 5/8-11 x 8 hex-hd cap, 7 for unit N, 8 for unit P

1шт.

20331R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

SCREW, 5/8-11 x 8-1/2 hex-hd cap, 10 for unit N, 11 for unit P

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 CDP two way lock, 21 for unit N, 24 for unit P

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

3шт.

2

486509R1

BAR, side rail, for units A, B, E & F

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap, 4 for units A & E, 2 for units B & F

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hd-hex cap , Course threads

1шт.

120369

NUT,3/8"-24, G5

WASHER, 3/4 C-Z med lock, 5 for units A & E, 3 for units B & F

1шт.

280954

NUT,3/4"-10, G5

5 for units A & E, 3 for units B & F 3/4"-10, G5

1шт.

2

486510R1

BAR, side rail, for units C & G

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

4шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hex-hd cap , Course threads

2шт.

120369

NUT,3/8"-24, G5

WASHER, 3/4 C-Z med lock

6шт.

280954

NUT,3/4"-10, G5

6шт.

2

482762R1

BAR

side rail, for units D & H

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

7шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hex-hd cap , Course threads

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

2

489842R1

BAR, side rail, units J & L

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

2шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hex-hd cap , Course threads

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

2

489843R1

BAR, side rail, units K & M

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

2

56653C1

BAR

side rail, unit N

1шт.

2

56654C1

BAR

side rail, unit P

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap, 7 for unit N, 9 for unit P

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 7 for unit N; 9 for unit P

1шт.

280954

NUT,3/4"-10, G5

7 for unit N, 9 for unit P 3/4"-10, G5

1шт.

3

482764R1

BRACE, main frame, units D & H, Serial Range: 1968-1971

1шт.

3

55265C1

BRACE

main frame, units D & H, 1971 and since

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

489844R1

BRACE, main frame, units J, K, L & M

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/2 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

56655C1

BRACE

main frame, 2 for unit N and 3 for unit P

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

4

482765R1

BRACE, extension frame, for units B, C, F & G, for units D & H, Serial Range: 1968-1971

1шт.

4

55266C1

BRACE

extension frame, units D & H, 1971 and since

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

4

489845R1

BRACE, extension frame, units J, K, L & M

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

4

56656C1

BRACE

extension frame, units N & P

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

5

482780R2

SUPPORT

BAR, short rail, 3 for units A, B, E & F, 4 used for units C & G, 5 for units D, H & N, 3 for units J & L, 4 for units K & M, 6 for unit P

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap, 6 for units A & B, 8 for unit C, 10 for units D & N, 6 for unit J, 8 for unit K, 12 for unit P

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap, 6 for units E & F, 8 for unit G, 10 for unit H, 6 for unit L

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 6 for units A, B, E & F; 8 for units C & G; 10 for units D, H & N; 6 for units J & L; 8 for units K & M; 12 for unit P

1шт.

280954

NUT,3/4"-10, G5

6 for units A, B, E & F, 8 for units units C & G, 10 for units D, H & N, 6 for units J & L, 8 for units K & M, 12 for unit P 3/4"-10, G5

1шт.

6

482781R2

SUPPORT

BAR, rail extension, for units B, C, D, F, G & H

1шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 C-Z hex-hd cap, 2 for units B, D, F & H, one for units C & G , Course threads

1шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 C-Z hex-hd cap

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap, one for units C & G

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 5 for units B, D, F & H; 6 for units C & G

1шт.

280954

NUT,3/4"-10, G5

5 for units B, D, F & H, 6 for units C & G 3/4"-10, G5

1шт.

6

489851R2

SUPPORT

BAR, rail extension, for units J, K, L & M

1шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 C-Z hex-hd cap, 2 for units J & L, one for units K & M , Course threads

1шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 C-Z hex-hd cap

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

2шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap, one for units K & M

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

280954

NUT,3/4"-10, G5

5шт.

7

482778R1

BAR

beam spacer, 3 for units D, F & L, 4 for units G & M, 5 for unit H

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap, 6 for units E, F & L, 8 for units G & M, 10 for unit H

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 6 for units E, F & L; 8 for units G & M; 10 for units D & H

1шт.

280954

NUT,3/4"-10, G5

6 for units E, F & L, 8 for units G & M, 10 for units D & H 3/4"-10, G5

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap, 10 for unit D

1шт.

8

515030R1

CLAMP

hose

2шт.

9

486693R1

REINFORCEMENT

STRAP, front hose support

1шт.

10

486694R1

SUPPORT

CLIP, hose

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

11

482777R1

BAR

beam spacer, for units F, G, H, L & M

1шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 C-Z hex-hd cap, 2 for units D, F, H & L, one for units G & M , Course threads

1шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 C-Z hex-hd cap, one for units D, F, G, H, J, K, L & M

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW 3/4-10 x 3-1/2 C-Z hex-hd cap, 2 for units D, F, G, H, J, K, L, M, N & P

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap, one for units G, K & M

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 5 for units D, F, H, J, K, L, M, N & P; 6 for unit G

1шт.

280954

NUT,3/4"-10, G5

5 for units D, F, H, J, K, L, M, N & P, 6 for unit G 3/4"-10, G5

1шт.
