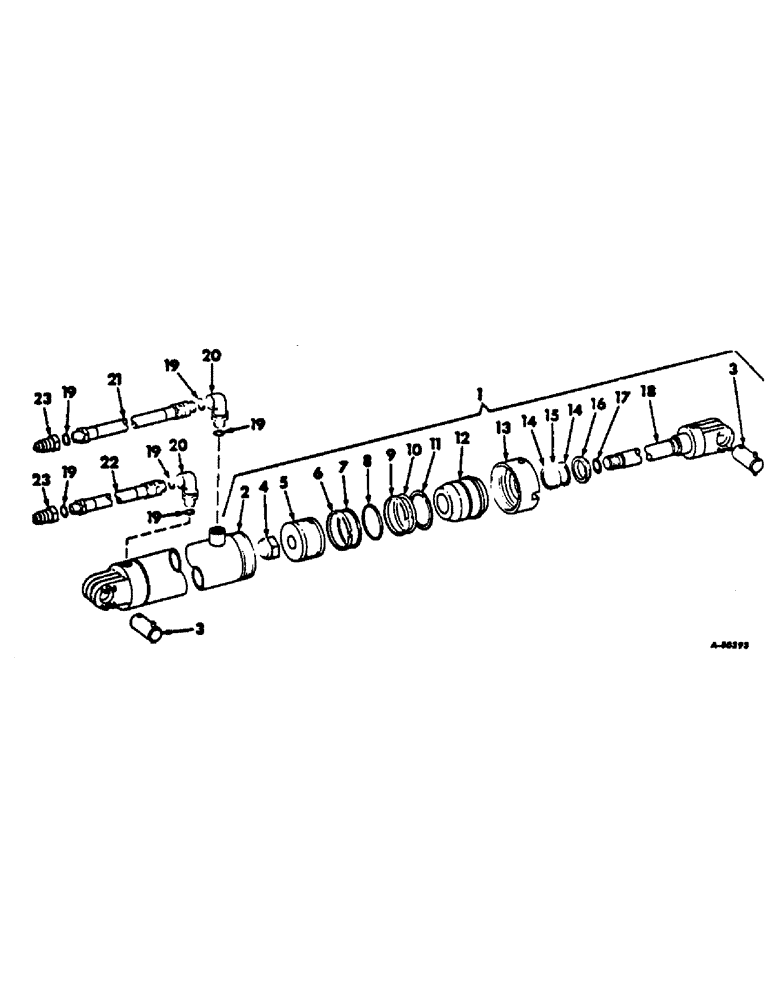

Запчасти Case IH 700 (AK-39) - HYDRAULIC CYLINDER AND CONNECTIONS, FOR TRACTORS W/HIGH PRESSURE HYDRAULIC SYSTEMS

1

387351R91

CONTROL

CYLINDER ASSY, 3-1/2 x 16 ASAE hyd

1шт.

2

387359R11

PIPE ASSY, hyd cyl

1шт.

3

387235R11

PIN

ASSY, cyl pivot

2шт.

520175R1

CLIP

PIN, quick attachable cot

2шт.

4

20251R1

NUT

1-1/8-12 C-Z hex. lock, piston rod

1шт.

5

387354R1

PISTON

hyd

1шт.

6

383005R1

RING

piston bearing rear

1шт.

7

381086R1

RING

SEAL, piston

1шт.

8

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32, piston seal

1шт.

9

381085R1

OIL SEAL

RING, piston bearing front

1шт.

10

352216R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

3-1/8 x 3-1/2 x 3/16, front head

1шт.

11

381088R1

BACK-UP RING

front head back-up

1шт.

12

387353R1

END

HEAD, cyl, front

1шт.

12

1272149C92R

REMAN-HYD CYLINDER

700 INTERNATIONAL HARVESTER TRAILING MOLDBOARD PLOW, HEAD, cyl front, Reman for New PN 387353R1

1шт.

12

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

13

381089R1

RING

retaining

1шт.

14

387362R1

BACK-UP RING

WASHER, piston rod back-up

2шт.

15

387363R1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1-3/4 x 2-1/8 x 3/16

1шт.

16

403845R1

WIPER SEAL

WIPER, piston rod

1шт.

17

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8

1шт.

18

387361R13

ROD

ASSY, piston

1шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

20

371357R91

ELBOW

7/8-14 90 deg adjustable

2шт.

21

630457R91

HOSE ASSY.

HOSE ASSY, hydraulic 1/2 x 132 in.

1шт.

22

372437R91

HOSE

ASSY, hydraulic 1/2 x 112 in.

1шт.

23

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male

2шт.

643259R91

STOP

ASSY, 3/4 in. hydraulic cylinder

1шт.

643260R91

PACKAGE

STOP ASSY, 1-1/2 in. hydraulic cylinder

1шт.

643261R91

STOP

ASSY, 3 in. hydraulic cylinder

1шт.

959999R91

STOP

ASSY, 5 in. hydraulic cylinder

1шт.

387881R1

PACKAGE, o-ring service, consists of (2) ring 383005R1, (1) seal 381086R1, (1) ring 380910R1, (1) ring 352216R1, (1) washer 381088R1, (1) ring 387363R1, (1) ring 403845R1, (1) ring 350818R1, (2) washer 387362R1

1шт.

2751852R1

PRODUCT GRAPHIC, International

1шт.

2752530R1

PRODUCT GRAPHIC, hyd cyl

1шт.
