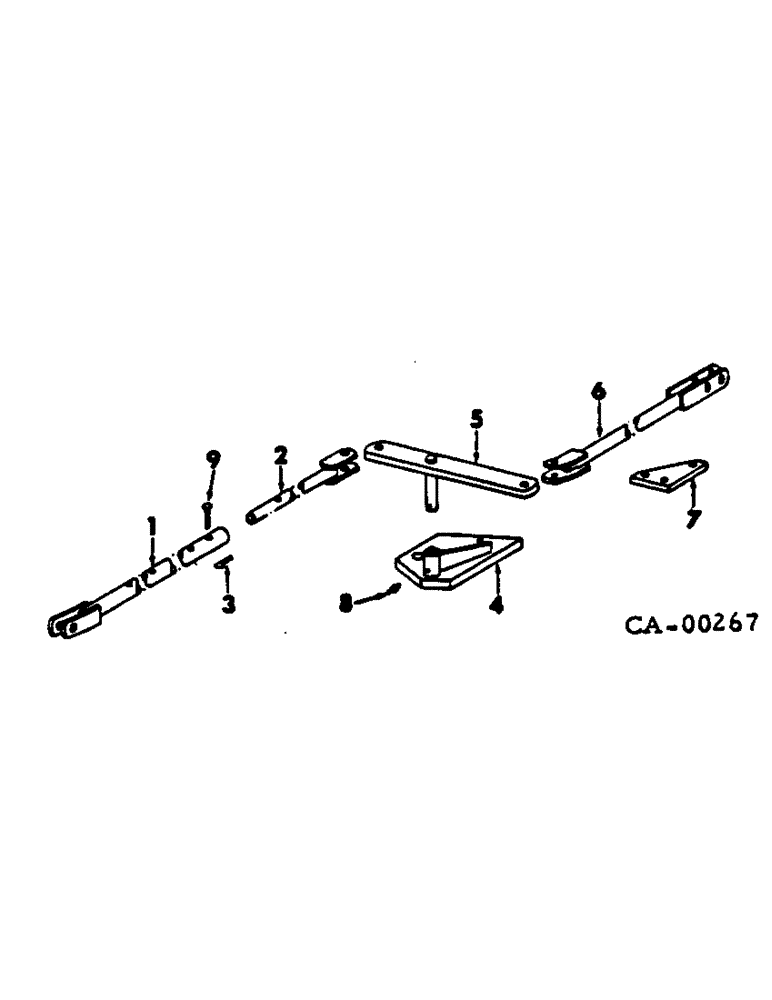

Запчасти Case IH 700 (AK-38) - MECHANICAL REAR LIFT LINKAGE ATTACHMENT

1

493490R1

TUBE ASSY, outside front lift

1шт.

Q5130

PIN, 7/8 x 2-5/8 std-hd

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

2

493487R1

TUBE ASSY, inside front

1шт.

3

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

4

493495R1

PIVOT ASSY, lift

1шт.

23751R1

SCREW, 3/4-10 x 8-1/4 znp hex-hd cap

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

425-1014

NUT,7/8"-9, G5

NUT, 3/4-10 C-Z hex.

3шт.

5

493493R1

BELLCRANK ASSY, lift

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

Q5130

PIN, 7/8 x 2-5/8 std-hd

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

6

493497R1

TUBE ASSY, rear lift

1шт.

23289R1

PIN, 1 x 2-3/4 C-Z std-hd 1" x 2 3/4"

1шт.

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga C-Z

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

7

482809R1

BAR

rear cylinder mounting

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub in rear lift tube

1шт.

9

21805R1

PIN

5/8 x 2-1/8 C-Z std-hd

1шт.
