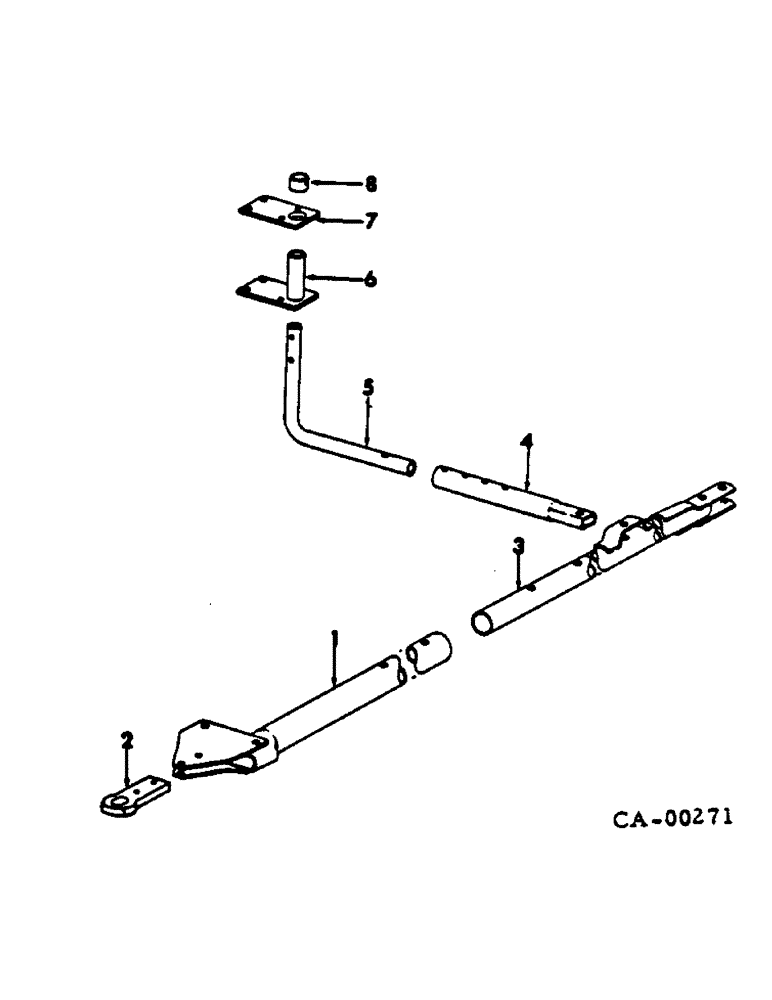

Запчасти Case IH 700 (AK-37) - TANDEM HITCH ATTACHMENT

1

493473R1

TUBE ASSY, hitch

1шт.

323617R1

BOLT (SPREADER),1" x 4", Gr 8

SCREW, 1-8 x 4 type 4 hex-hd cap

1шт.

271710

SCREW, 1-8 x 5 hex-hd cap

1шт.

19613R1

LOCK NUT,1"-8

NUT, 1-8 nylon insert

2шт.

2

493476R1

SUPPORT

EXTENSION, hitch

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

3

493477R1

TUBE

ASSY, rear hitch

1шт.

17290R1

SCREW,Hex, 1" - 8 x 6 1/2"

1-8 x 6-1/2 hex-hd cap

1шт.

323617R1

BOLT (SPREADER),1" x 4", Gr 8

SCREW, 1-8 x 4 type 4 hex-hd cap

1шт.

19613R1

LOCK NUT,1"-8

NUT, 1-8 nylon insert

2шт.

4

493481R1

TUBE

hitch support

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

493482R1

SUPPORT TUBE

BAR, tube support

1шт.

6

493483R1

PIVOT ASSY

1шт.

7

493484R1

PLATE, pivot

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4-10 x 6 C-Z hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

8

493486R1

SPACER

TUBE, vertical pivot collar

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
