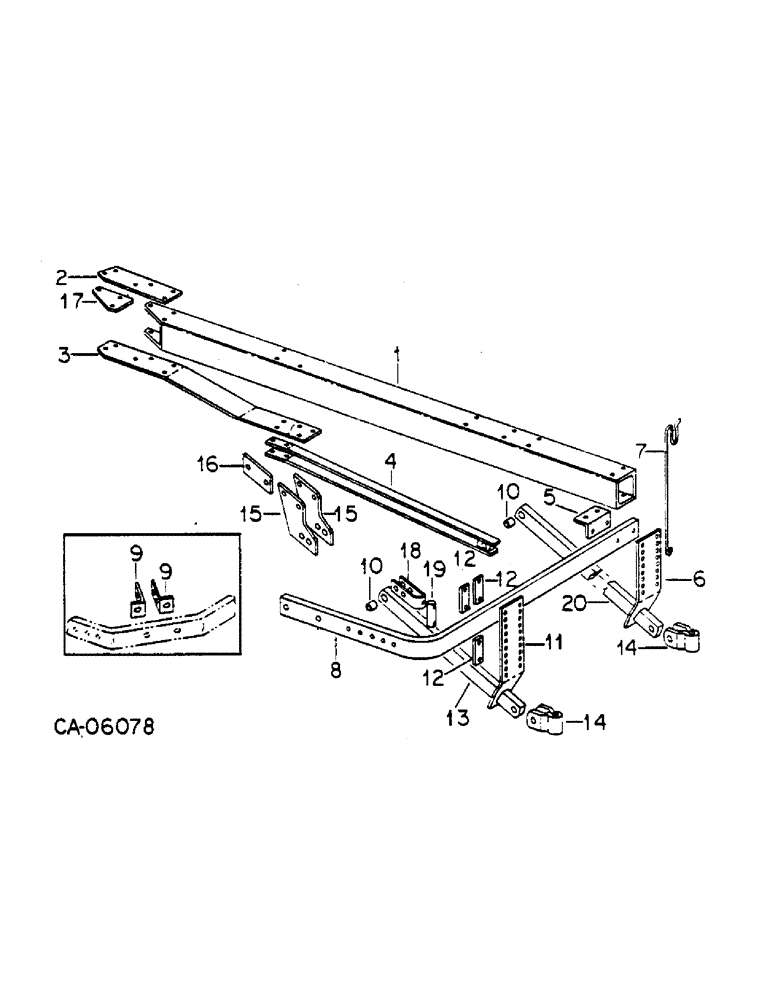

Запчасти Case IH 700 (AK-31) - PULL BEAM & SPREADER, UNITS C, D, G, H, K, M, N & P, HYDRAULIC EQUIPMENT

1

491608R1

FRAME ASSY, pull, for units C & G, units D & H, Serial Range: 1968-1971

1шт.

1

55268C1

FRAME

ASSY, pull, for units D & H, 1971 and since

1шт.

1

492377R1

FRAME ASSY, pull, for units K & M

1шт.

1

56663C1

FRAME

ASSY, pull, for units N & P

1шт.

2

491613R1

PLATE, splice, Serial Range: 1968-1971

1шт.

2

55261C1

PLATE

splice, 1971 and since

1шт.

20575R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

SCREW, 3/4-10 x 8 znd hex-hd cap

7шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z 2-way hex-hd lock

7шт.

3

491614R1

PLATE, truss, Serial Range: 1968-1971

1шт.

3

55262C1

PLATE

truss, 1971 and since

1шт.

20252R1

BOLT,Hex, 3/4" - 10 x 10", Gr 5

SCREW, 3/4-10 x 10 C-Z hex-hd cap

3шт.

102639

NUT,5/8"-11, G5

WASHER, 3/4 C-Z med lock

3шт.

280954

NUT,3/4"-10, G5

3шт.

4

491618R1

SUPPORT

STRAP ASSY, truss, for units C, D, G & H

1шт.

4

492380R1

SUPPORT

STRAP ASSY, truss, for units N & P

1шт.

4

492382R1

STRAP ASSY, truss, for units K & M

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

23864R1

BOLT,Hex, 1" - 8 x 4", Gr 8

SCREW, 1-8 x 4 znp hex-hd type 4

1шт.

19613R1

LOCK NUT,1"-8

NUT, 1-8 nylon insert

1шт.

5

491620R1

ANGLE

spreader

1шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 C-Z hex-hd cap

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hex-hd cap

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

102639

NUT,5/8"-11, G5

WASHER, 3/4 C-Z med lock

4шт.

280954

NUT,3/4"-10, G5

4шт.

6

491621R2

SUPPORT

PLATE, hitch bar LH

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

7

491622R1

ROD

SUPPORT, hose

1шт.

131587C1

SPACER

SPREADER, for units C, D, G & H, replaces 491623R1 by also ordering package 73219C91

1шт.

8

131588C1

SUPPORT

SPREADER, for units K, M, N & P, replaces 492384R1 by also ordering package 73219C91

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

223456

BOLT (SPREADER),Hex, 3/4" - 10 x 3 1/2", Gr 8

SCREW, 3/4-10 x 3-1/2 C-Z type 4 hex-hd cap

2шт.

102639

NUT,5/8"-11, G5

WASHER, 3/4 med lock

4шт.

280954

NUT,3/4"-10, G5

4шт.

9

482763R1

SUPPORT

BRACKET, rail bar, machine w/spreader 491623R1 or 492384R1

2шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

10

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

1шт.

21917R1

BOLT,Hex, 1" - 8 x 4 1/2", Gr 8

SCREW, 1-8 x 4-1/2 znd hex-hd type 4

2шт.

19613R1

LOCK NUT,1"-8

NUT, 1-8 nylon insert

2шт.

11

491636R1

SUPPORT

PLATE, hitch bar RH, order 1 plate hitch 540038R1 and 2 plate brackets 471350R1

1шт.

11

540038R1

PLATE

hitch bar RH

1шт.

12

491635R1

BAR

PLATE, bracket, order 2 plate brackets 471350R1

1шт.

12

471350R1

BAR

PLATE, bracket

3шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

4шт.

102639

NUT,5/8"-11, G5

WASHER, 3/4 C-Z med lock

4шт.

280954

NUT,3/4"-10, G5

4шт.

13

540034R1

BAR

hitch, for units C, D, G, H, K & M

2шт.

13

56666C2

BAR

hitch, for units N & P, also order bar hitch 540034R1

1шт.

413-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 5

SCREW, 1-8 x 3-1/4 C-Z hex-hd cap

1шт.

19613R1

LOCK NUT,1"-8

NUT, 1-8 nylon insert

1шт.

14

540062R1

CLEVIS

ASSY, hitch, for units C, D, G, H, K, M, N & P

2шт.

23864R1

BOLT,Hex, 1" - 8 x 4", Gr 8

SCREW, 1-8 x 4 znd hex-hd cap type 4

3шт.

23760R1

SCREW, 1-8 x 5-1/2 znd hex-hd cap

1шт.

19613R1

LOCK NUT,1"-8

NUT, 1-8 nylon insert

4шт.

15

56657C2

PLATE

hitch bar, units N & P

1шт.

15

56658C2

PLATE

hitch bar, units N & P

1шт.

16

491580R1

BAR

SPACER, units N & P

1шт.

271794

BOLT,Hex, 3/4" - 16 x 2 1/4", Gr 5

SCREW, 3/4-16 x 2-1/4 znd hex-hd cap

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

17

55260C1

SPACER

pull beam, for units D, H, N and P

1шт.

18

131590C1

BRACKET

rail bar, machines w/spreader 131587C1 or 131588C1

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3/4 x 3-1/2 type 5

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

19

131589C1

BAR

PIN, trunnion bar

1шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

3/4 x 5 type 5 , Course threads

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-1/C2 2 way her lock

2шт.

73219C91

PACKAGE

spreader service consist of

1шт.

131590C1

BRACKET

1шт.

131589C1

BAR

PIN

1шт.

471350R1

BAR

CLIP

1шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

Course threads

2шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, instructions (NSS)

2шт.

403842R94

CYLINDER

ASSY, hyd, 3-1/2 x 8 in., double acting, for components see list of parts under details of hydraulic cylinder

2шт.

395149R1

QUICK MALE COUPLING

COUPLING, self sealing male std-thd

4шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hose, 8 for units A, B, C, E, F & G, 10 for units D & H, 8 for units J, K, L, M, N & P, 12 for unit P

1шт.

486563R91

HOSE ASSY, hyd 1/2 x 286 in. long, 2 for units A & E

1шт.

483100R91

HOSE ASSY, hyd 1/2 x 330 in. long, 2 for units B, F & P

1шт.

483101R91

HOSE ASSY, hyd 1/2 x 350 in. long, 2 for units J & L

1шт.

486567R91

HOSE ASSY, hyd 1/2 x 368 in. long, 2 for units C, D, G & H

1шт.

492386R1

HOSE ASSY, hyd 1/2 x 387 in. long, 2 for units K, M & N

1шт.

474977R91

HOSE ASSY, hyd 1/2 x 34 in. long, 2 for units D, H & N

1шт.

492494R1

HOSE

ASSY, hyd 1/2 x 132 in. long, for 4.5 and 6 furrow, for I-4100 or other tractors equipped w/two rear manifolds

2шт.

630457R91

HOSE ASSY.

HOSE ASSY, hyd 1/2 x 132 in. long, for 7 and 8 furrow, for I-4100 or other tractors equipped w/two rear manifolds

2шт.

489600R1

HOSE

ASSY, hyd 1/2 x 200 in. long, for tractors equipped w/one rear, RH & LH front manifold

2шт.

474977R91

HOSE ASSY, 1/2 x 34 in. long, for use w/frame extension

2шт.

388688R91

CYLINDER ASSY, hyd, 4 x 8 in. double acting, for components see list of parts under details of hydraulic cylinder

1шт.

479853R91

PACKAGE

hyd cyl stop, for use with 388688R91, for components see list of parts under details of hyd cyl stop package

2шт.

544787R91

COUPLING, BREAK AWAY

COUPLING, self sealing hyd, for units N & P

4шт.

584802R1

CONNECTOR, ELEC

UNION, 7/8-14 hyd, for unit P

2шт.
