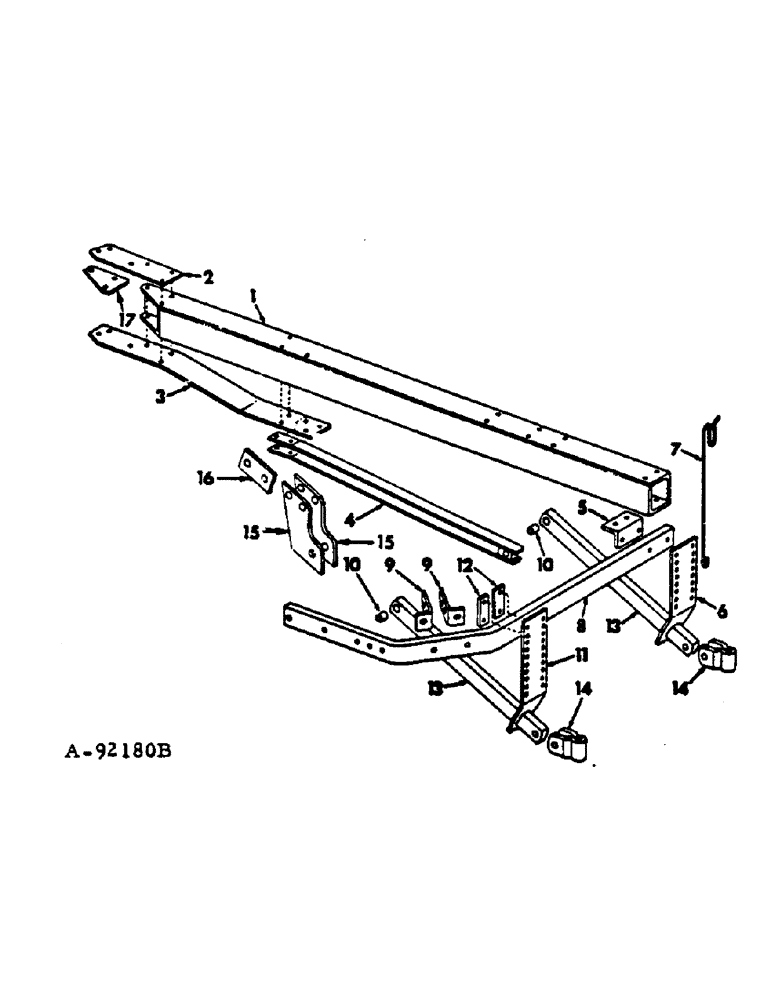

Запчасти Case IH 700 (AK-29) - PULL BEAM AND SPREADER, UNITS A, B, E, F, J & L

1

491607R1

FRAME ASSY, pull, for units A, B, E & F

1шт.

1

55268C1

FRAME

ASSY, pull, for units D & H, 1971 and since

1шт.

1

492374R1

FRAME ASSY, pull, for units J & L

1шт.

2

491613R1

PLATE, splice, Serial Range: 1968-1971

1шт.

2

55261C1

PLATE

splice, 1971 and since

1шт.

20575R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

SCREW 3/4-10 x 8 znd hex-hd cap

7шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z 2-way hex-hd lock

7шт.

3

491614R1

PLATE, truss, Serial Range: 1968-1971

1шт.

3

55262C1

PLATE

truss, 1971 and since

1шт.

20252R1

BOLT,Hex, 3/4" - 10 x 10", Gr 5

SCREW, 3/4-10 x 10 C-Z hex-hd cap

3шт.

102639

NUT,5/8"-11, G5

WASHER, 3/4 C-Z med lock

3шт.

280954

NUT,3/4"-10, G5

3шт.

4

491615R1

SUPPORT

STRAP ASSY, truss, for units A, B, E and F

1шт.

4

492380R1

SUPPORT

STRAP ASSY, truss, for units J & L & P

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

23864R1

BOLT,Hex, 1" - 8 x 4", Gr 8

SCREW, 1-8 x 4 znp hex-hd type 4

1шт.

19613R1

LOCK NUT,1"-8

NUT, 1-8 nylon insert

1шт.

5

491620R1

ANGLE

spreader

1шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 C-Z hex-hd cap

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hex-hd cap

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

102639

NUT,5/8"-11, G5

WASHER, 3/4 C-Z med lock

4шт.

280954

NUT,3/4"-10, G5

4шт.

6

491621R2

SUPPORT

PLATE, hitch bar LH

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

7

491622R1

ROD

SUPPORT, hose

1шт.

8

482779R1

SPREADER, for units A, B, E & F

1шт.

8

492385R1

SPREADER, for units J & L

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

223456

BOLT (SPREADER),Hex, 3/4" - 10 x 3 1/2", Gr 8

SCREW, 3/4-10 x 3-1/2 C-Z type hex-hd cap

2шт.

102639

NUT,5/8"-11, G5

WASHER, 3/4 med lock

4шт.

280954

NUT,3/4"-10, G5

4шт.

9

482763R1

SUPPORT

BRACKET, rail bar

2шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

220081

NUT

3/4-10 hex.

2шт.

10

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

1шт.

21917R1

BOLT,Hex, 1" - 8 x 4 1/2", Gr 8

SCREW, 1-8 x 4-1/2 znd hex-hd type 4

2шт.

19613R1

LOCK NUT,1"-8

NUT, 1-8 nylon insert

2шт.

11

491636R1

SUPPORT

PLATE, hitch bar RH, order 1 plate hitch 540038R1, and 2 plate brackets 471350R1

1шт.

11

540038R1

PLATE

hitch bar RH

1шт.

12

491635R1

BAR

PLATE, bracket, order 2 plate brackets 471350R1

1шт.

12

471350R1

BAR

PLATE, bracket

2шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

4шт.

102639

NUT,5/8"-11, G5

WASHER, 3/4 C-Z med lock

4шт.

280954

NUT,3/4"-10, G5

4шт.

13

491624R1

BAR, hitch, for units A, B, E, F, J & L

2шт.

413-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 5

SCREW, 1-8 x 3-1/4 C-Z hex-hd cap

1шт.

19613R1

LOCK NUT,1"-8

NUT, 1-8 nylon insert

1шт.

14

518683R1

CLEVIS

hitch, for units A, B, E, F, J & L

2шт.

23579R1

SCREW, 7/8-9 x 3-3/4 type 4 znp hex-hd cap

2шт.

23580R1

SCREW, 7/8-9 x 4-3/4 type 4 znp hex-hd cap

1шт.

23944R1

SCREW, 7/8-9 x 5-1/2 znp hex-hd cap

1шт.

21353R1

NUT, 7/8-9 znp nylon insert

4шт.

21212R1

WASHER

29/32 x 2 x 11 ga C-Z

3шт.

15

(Not used in this application)

1шт.

16

(Not used in this application)

1шт.

17

(Not used in this application)

1шт.
