Запчасти Case IH 700 (AK-26) - ROCKSHAFT

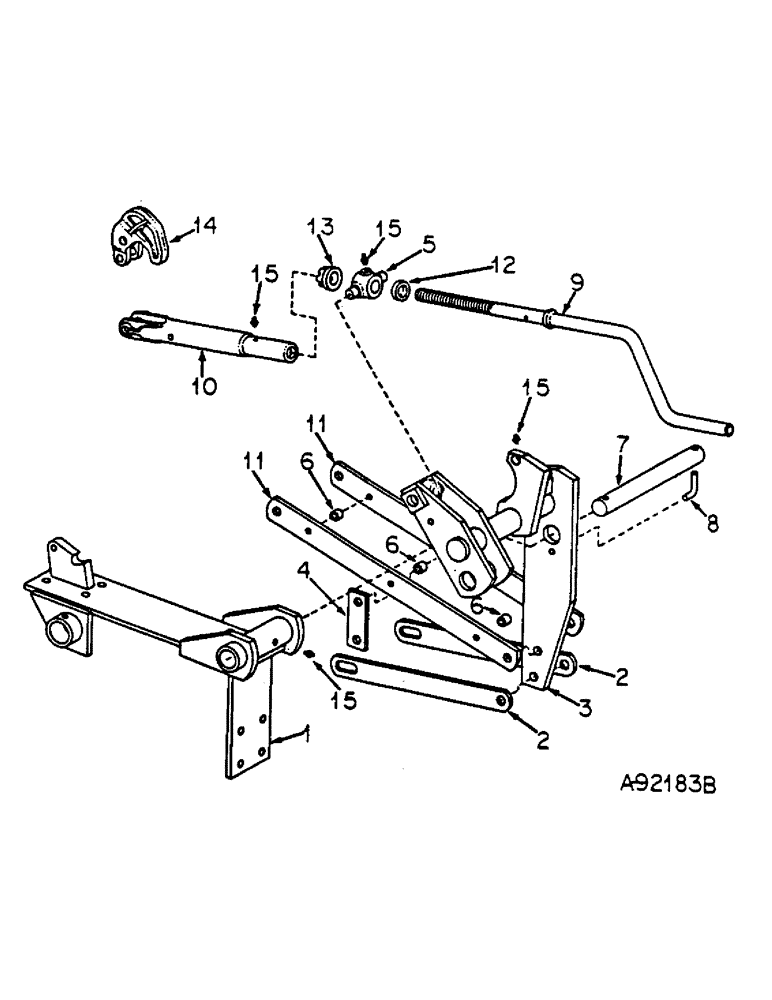

Схема запчастей Case IH 700 - (AK-26) - ROCKSHAFT
10
1
6
15
9
4
5
6
13
15
8
15
12
6
14
2
3
7
11
2
15
11

Артикул

Название

Примечание

Количество

1

491587R1

MOUNTING ASSY, rockshaft

1шт.

272558

SWITCH,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 C-Z hex-hd cap

2шт.

103046

WASHER, 3/4 C-Z med lock

2шт.

280954

NUT,3/4"-10, G5

2шт.

2

491605R1

BAR

STRAP, front transport

2шт.

2

56662C1

STRAP

front transport, for units N & P

2шт.

28855B

HEADED PIN,7/8" x 2"

PIN, 7/8 x 2 std-hd

2шт.

217972

PIN, 1/4 x 1-1/4 C-Z cot.

1шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

3

491594R92

ROCKSHAFT

ASSY

1шт.

4

491606R1

BAR

link attaching

1шт.

5

468532R2

PIVOT

SWIVEL

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 znd hex-hd cap

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

6

513971R1

BUSHING

3шт.

7

491600R1

ROD

SHAFT, rockshaft pivot

1шт.

8

491601R2

PIN

pivot lock

1шт.

21656R1

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

1шт.

9

491602R1

CRANK

furrow adjusting

1шт.

10

491603R1

HOUSING

furrow adjusting

1шт.

11

491604R1

BAR

LINK, land lift

2шт.

11

56661C1

LINK

land wheel lift, for units N & P

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

520113R1

HEADED PIN,7/8" x 2 7/16"

PIN, 7/8 x 2-7/16 std-hd

2шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

2шт.

217972

PIN, 1/4 x 1-1/4 C-Z cot.

2шт.

12

80755R91

THRUST BEARING,30.32mm ID x 55.82mm OD x 16mm W

THRUST, leveling bearing

1шт.

13

518615R1

COLLAR

leveling screw

1шт.

21825R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

PO20525

PIN,7/8" x 2 3/8"

7/8 x 2-3/8 std-hd

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

14

526263R1

RETAINER

cyl bracket pin

1шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN, 1/2 x 2-1/4 C-Z std-hd

1шт.

21836R1

PIN

5/8 x 2-9/16 C-Z std-hd

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot.

1шт.

15

110046R91

FITTING, 1/4-28 PTF str lub

4шт.

Выбрано товаров: 40
