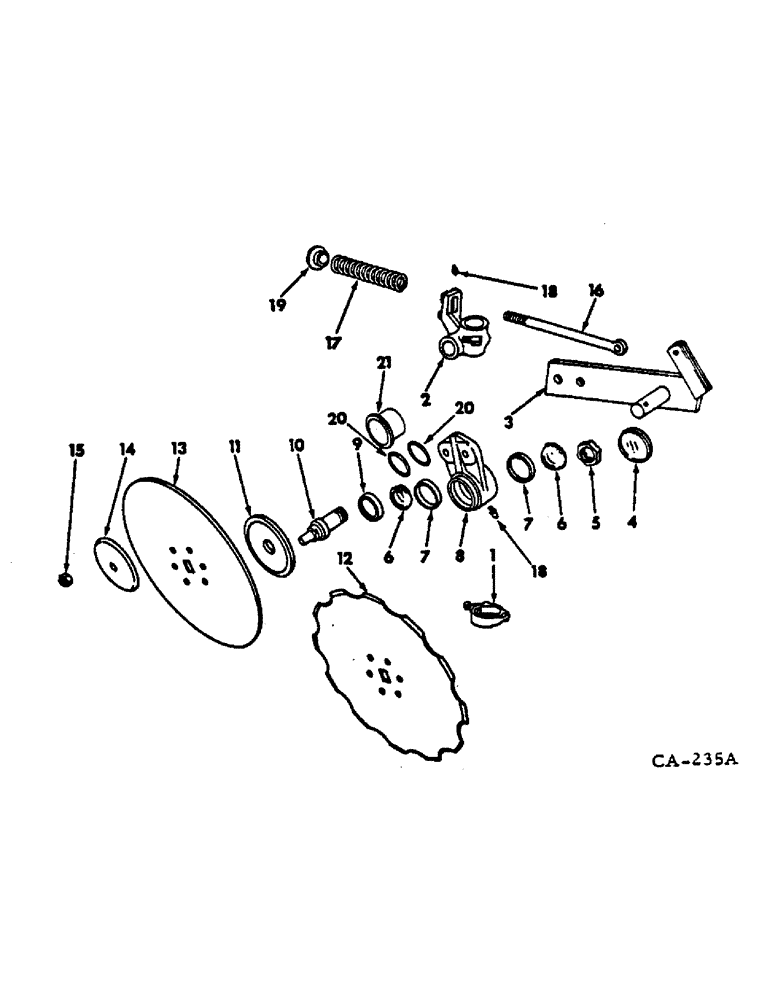

Запчасти Case IH 700 (AK-25) - HEAVY DUTY ROLLING COLTER, HIGH LIFT, CUSHION SPRING TYPE, ONE PER FURROW

1

523345R21

COLLAR CLAMP

COLLAR ASSY, stop

1шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 C-Z sq-hd cup-pt set

1шт.

2

492815R3

BUSHING

colter, replaces 480343R1

1шт.

3

487695R1

ARM

ASSY, colter, order (1) arm assy 492812R1, (1) bushing 492815R3, (1) bolt 480344R1

1шт.

3

492812R1

ARM

ASSY, colter

1шт.

4

518842R1

CAP

hub, Serial Range: up-1969

1шт.

4

663906R1

CAP

hub, 1969 and since

1шт.

5

519250R1

SLOTTED NUT

1-1/4-12 hex. slotted

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, housing cone

2шт.

7

651817R1

BEARING CUP

BEARING, housing cup

2шт.

8

523019R3

HOUSING

bearing RH, Serial Range: up-1969

1шт.

8

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING, bearing RH, 1969 and since

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

523027R91

OIL SEAL

housing oil, Serial Range: up-1969

1шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

housing oil, 1969 and since

1шт.

10

523023R1

SPINDLE

, Serial Range: up-1969

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

10

541480R1

SPINDLE

1969 and since

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

11

523020R3

SUPPORT ASSY.

SUPPORT, inside blade

1шт.

12

523026R2

DISC

BLADE, 17 in. notched colter

1шт.

12

471166R1

COULTER

BLADE, 20 in. notched

1шт.

13

523025R2

HALF BLADE

BLADE, 17 in. plain colter

1шт.

13

4742551R1

BLADE, 20 in. plain

1шт.

13

469191R3

BLADE

17 in. rippled edge

1шт.

13

474252R2

COULTER

RIPPLED 20"

1шт.

14

523021R2

SUPPORT ASSY.

SUPPORT, outside blade

1шт.

15

21626R1

LOCK NUT,3/4"-16

NUT, 3/4-16 zn-pltd nylon insert, up to 1969

1шт.

15

26963R1

NUT,7/8"-14, G8

NUT, 7/8-14 znd slt hex type 8, 1969 and since

1шт.

16

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT, spring eye

1шт.

21660R1

HEADED PIN,1/2" x 1 11/16"

PIN, 1/2 x 1-11/16 zn pltd std-hd

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

21226R1

WASHER

1-9/32 x 2 x 11 ga C-Z

1шт.

17

487698R1

SPRING

cushion

1шт.

18

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub

2шт.

19

487697R1

CENTERING RING

SPACER, spring plug

1шт.

20

216389R1

SNAP RING,2.312", Int, #231

Ring, Snap, , brg, 1969 and since 2.312", Int, #231

2шт.

21

472224R1

SLEEVE

oil seal, 1969 and since

1шт.
