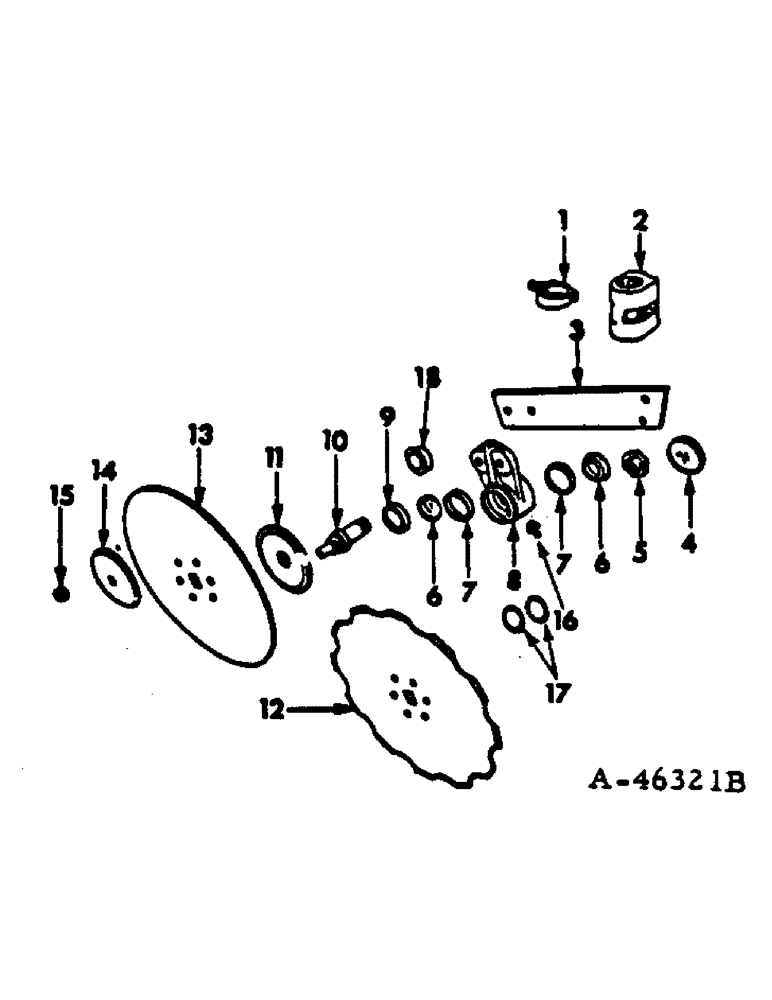

Запчасти Case IH 700 (AK-24) - ROLLING COLTER, SHEAR BOLT, PRECISION BEARING SINGLE ARM

1

523345R21

COLLAR CLAMP

COLLAR ASSEMBLY, stop

1шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 C-Z sq-hd cup-pt set

1шт.

2

462273R2

SUPPORT ASSY.

BEARING, colter arm RH

1шт.

425-117

NUT,7/16"-20, G5

7/16-20 C-Z hex.

1шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

1шт.

181672

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 5

SCREW, 7/16-20 x 1-3/4 C-Z hex-hd cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znp hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

3

131517C91

BAR

ASSY, colter, replaces 462274R1 & 471167R2

1шт.

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

4

518842R1

CAP

hub, Serial Range: up-1969

1шт.

4

663906R1

CAP

hub, 1969 and since

1шт.

5

519250R1

SLOTTED NUT

1-1/4 UNF slotted

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, housing cone

2шт.

7

651817R1

BEARING CUP

BEARING, housing cup

2шт.

8

523019R3

HOUSING

bearing RH, Serial Range: up-1969

1шт.

8

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING, bearing RH, 1969 and since

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

523027R91

OIL SEAL

housing oil, Serial Range: up-1969

1шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

housing oil, 1969 and since

1шт.

10

523023R1

SPINDLE

, Serial Range: up-1969

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

10

541480R1

SPINDLE

, Serial Range: 1969-1971

1шт.

10

543998R1

SPINDLE

1971 and since

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

11

523020R3

SUPPORT ASSY.

SUPPORT, blade inside

1шт.

12

523026R2

DISC

BLADE, 17 in. colter notched

1шт.

12

471166R1

COULTER

BLADE, 20 in. colter notched

1шт.

13

523025R2

HALF BLADE

BLADE, 17 in. colter plain

1шт.

13

469191R3

BLADE

17 in. rippled edge

1шт.

13

474251R1

DISC

BLADE, 20 in. colter plain

1шт.

13

474252R2

COULTER

RIPPLED 20"

1шт.

14

523021R2

SUPPORT ASSY.

SUPPORT, blade outside

1шт.

15

21626R1

LOCK NUT,3/4"-16

NUT, 3/4-16 zn-pltd nylon insert, up to 1969

1шт.

15

26963R1

NUT,7/8"-14, G8

NUT, 7/8-14 znd slt-hex type 8, 1969 and since

1шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub

1шт.

17

216389R1

SNAP RING,2.312", Int, #231

Ring, Snap, , brg, 1969 and since 2.312", Int, #231

2шт.

18

472224R1

SLEEVE

oil seal, 1969 and since

1шт.
