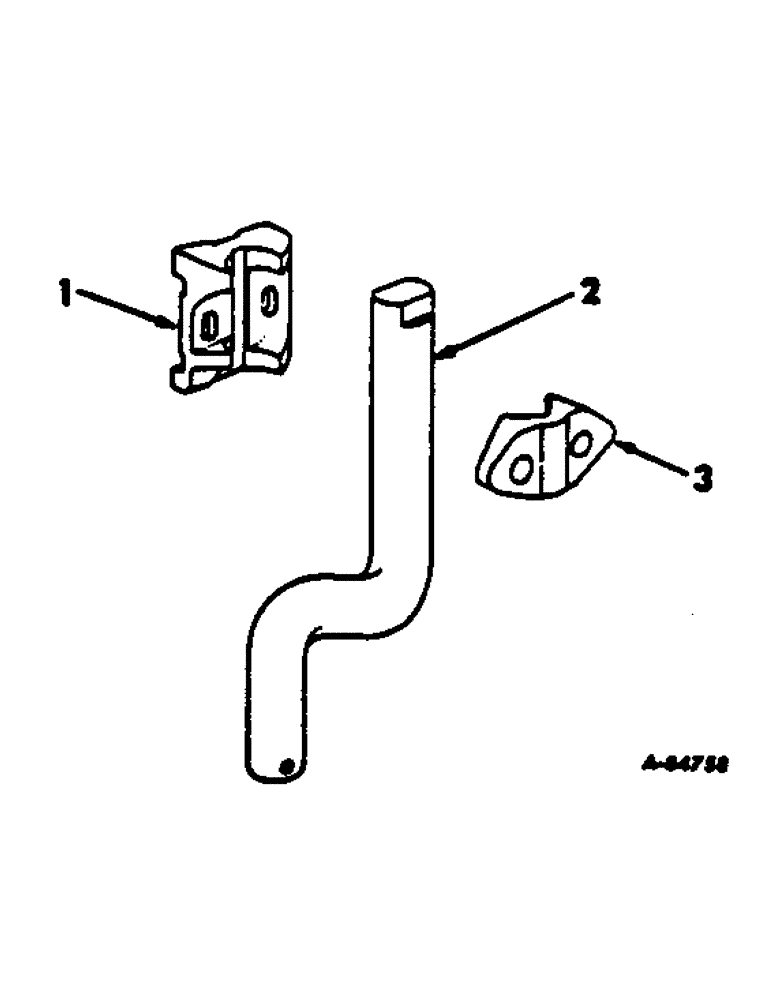

Запчасти Case IH 700 (AK-23) - COLTER ATTACHING PARTS

1

524456R3

CLAMP

colter, 4 for units A & E, 5 for units B, F, J & L, 6 for units C, G, K & M, 7 for units D, H & N, 8 for unit P

1шт.

2

488792R1

SHANK

colter, 4 for units A & E, 5 for units B, F, J & l, 6 for units C, G, K & M, 7 for units D, H & n, 8 for unit P

1шт.

21641R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), , 18 , self-opening , 4 for units A & E; 5 for units B, F, J & L; 6 for units C, G, K & M; 7 for units; 8 for unit P 5/16" x 2 1/4"

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 znp hex-hd cap, 6 for units A & E, 8 for units B, F, J & L, 10 for units C, G, K & M, 12 for units D, H & N, 14 for unit P

1шт.

413-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

SCREW, 5/8-11 x 4-3/4 C-Z hex-hd cap

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 8 for units A & E, 10 for units B, F, J & L, 12 for units C, G, K & M, 14 for units D, H & N, 16 for unit P

1шт.

3

524492R1

CLAMP

CAP, clamp, 4 for units A & E, 5 for units B, F, J & L, 6 for units C, G, K & M, 7 for units D, H & N, 8 for unit P

1шт.
