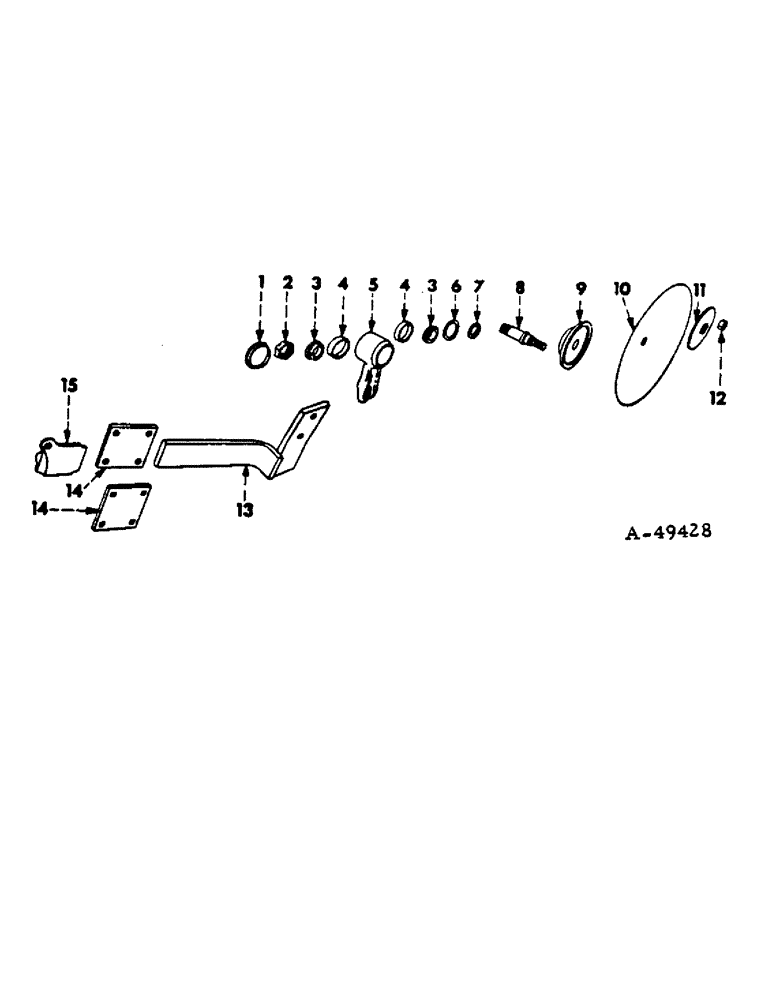

Запчасти Case IH 700 (AK-22) - DISK COLTER JOINTERS, RIGID STANDARD, ONE PER FURROW

1

518842R1

CAP

bearing housing

1шт.

2

519250R1

SLOTTED NUT

1-1/4 hex.

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, cone

2шт.

4

651817R1

BEARING CUP

BEARING, cup

2шт.

5

521779R1

HOUSING BEARING RH

1шт.

6

518820R91

OIL SEAL

bearing oil

1шт.

7

518654R1

SPACER

oil seal

1шт.

8

521780R1

SPINDLE

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , Ext. prong 1/8" x 1 3/4"

2шт.

9

519084R1

HUB

BEARING, spindle

1шт.

10

519093R1

DISC

DISK, 16 in. dia

1шт.

11

519086R2

SUPPORT

disk

1шт.

12

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 hex.

1шт.

13

523969R12

STANDARD ASSY

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2 x 2-1/4 hex-hd cap

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14

524584R1

PLATE, clamp

2шт.

190270

BOLT,Hex, 1/2" - 13 x 4 1/4"

SCREW, 1/2 x 4-1/4 hex-hd cap

4шт.

102637

NUT,1/2"-13, G5

4шт.

15

524583R1

BLOCK, adjusting

1шт.
