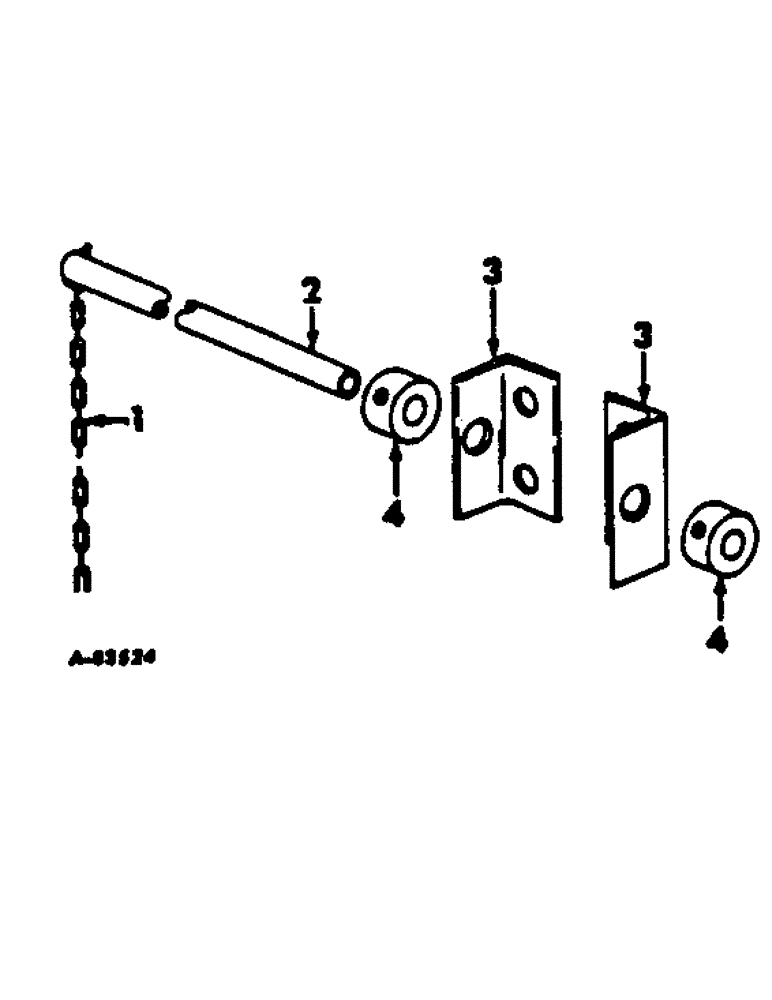

Запчасти Case IH 700 (AK-20) - FURROW GUIDE ATTACHMENT, FOR PLOWS W/LAND HITCH

1

476714R1

CHAIN, furrow guide

1шт.

2

476712R2

PIPE, furrow guide

1шт.

17469R1

BOLT, 1/4-20 x 1-1/2 hex-hd mach

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

3

476713R1

ANGLE, furrow guide

2шт.

4

476726R1

COLLAR, furrow guide pipe

2шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2-13 x 3/4 sq-hd cup-pt set

2шт.
