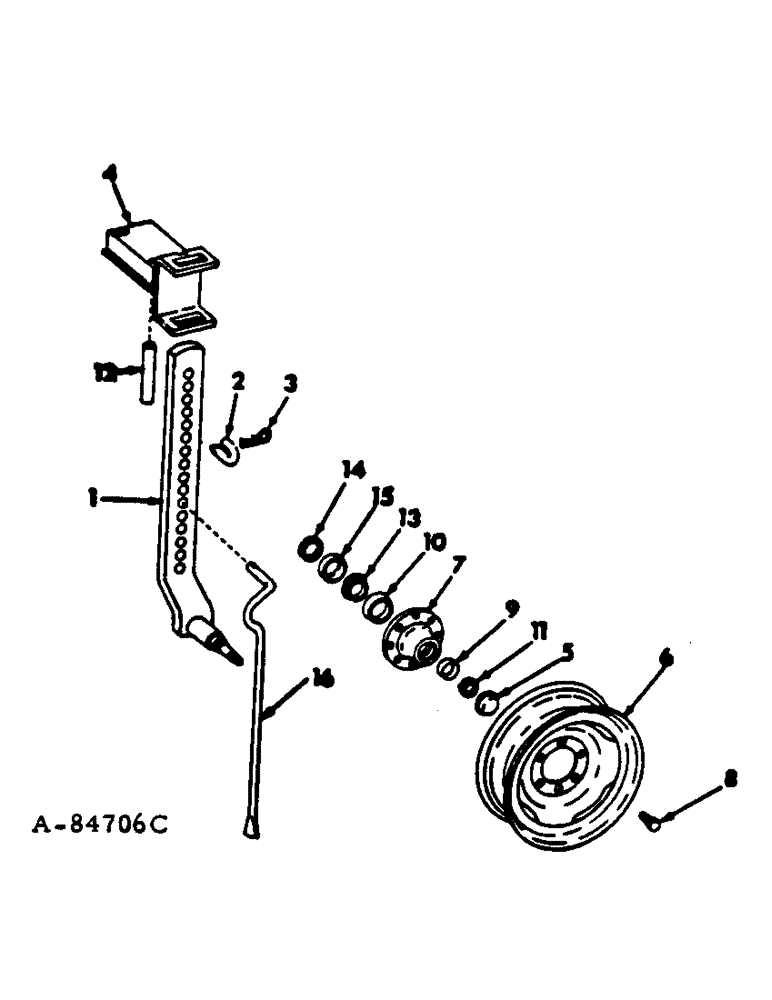

Запчасти Case IH 700 (AK-19) - GAUGE WHEEL

1

484996R4

SUPPORT ASSY.

STANDARD ASSY

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

69442D

NUT

3/4-16 slt-hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

2

520620R1

AXLE PIN

PIN, standard retaining

1шт.

3

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

4

482945R94

BRACKET

ASSY, for 5 and 6 furrow

1шт.

4

547221R1

BRACKET

ASSY, for 7 and 8 furrow

1шт.

21692R1

BOLT,Hex, 5/8" - 11 x 10", Gr 5

SCREW, 5/8-11 x 10 C-Z hex-hd cap

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

20511R1

WASHER, 5/8 zn-pltd med lock

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

25663

SCREW, 5/8-11 x 10-1/2 hex-hd cap

1шт.

5

663908R1

CAP

hub

1шт.

6

481344R91

WHEEL

14 x 8 KB rim for 9.50 x 14 tire

1шт.

6

622192R91

WHEEL

15 x 5 KB rim for 6.70 x 15 tire

1шт.

7

465493R1

HUB

wheel

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2-20 x 15/16 conical hd hub, will work for 351079R1

6шт.

9

371883R1

BEARING CUP

Outer

1шт.

10

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

1шт.

11

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

1шт.

12

484994R1

SPACER

bracket, for 5 and 6 furrow

1шт.

12

547224R1

SPACER, bracket, for 7 and 8 furrow

1шт.

21692R1

BOLT,Hex, 5/8" - 11 x 10", Gr 5

SCREW, 5/8-11 x 10 C-Z hex-hd cap

1шт.

20511R1

WASHER, 5/8 zn-pltd med lock

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

25663

SCREW, 5/8-11 x 10-1/2 hex-hd cap

1шт.

13

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, inner cone

1шт.

14

667599R91

OIL SEAL

wheel hub oil

1шт.

15

667564R1

RING

SLEEVE, oil seal wear

1шт.

16

490680R1

ROD

BAR, gauge wheel

1шт.
