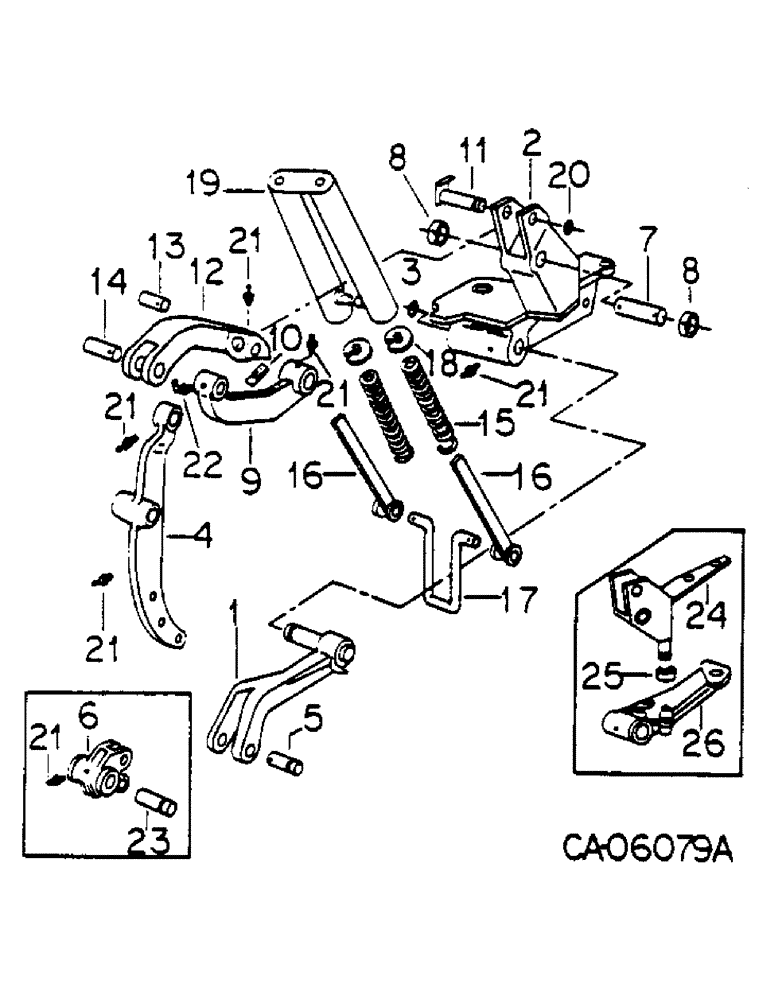

Запчасти Case IH 700 (AK-18) - AUTOMATIC TRIP BEAM UNIT, SPECIAL, ONE PER FURROW

1

55366C3

BEAM

ASSY, lower link

1шт.

2

122558C1

BRACKET

pivot casting

1шт.

3

468371R1

RING

pivot ext. retaining

1шт.

4

60099C3

BEAM

recovery trip

1шт.

5

485526R1

SHAFT

pivot bracket

1шт.

471323R1

LINCH PIN

PIN, pivot lock

1шт.

519250R1

SLOTTED NUT

1-1/4-12 UNF slt-hex

1шт.

21643R1

COTTER PIN,1/8" x 2 1/4"

1/8" x 2 1/4"

1шт.

6

485525R1

BRACKET

plow beam pivot, machines built prior to 1969 equipped with steel beams

1шт.

7

485534R1

PIN

upper mounting roller

1шт.

8

491934R1

SPACER

stop roller

2шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

9

485537R3

LATCH ASSY.

LINK, upper front

1шт.

10

489152R1

STRAP

ASSY, load adj

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

427586

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

SCREW, 5/16-18 x 1-1/4 type 4 C-Z hex-hd cap

1шт.

11

485539R1

PIN

ASSY, upper front link

1шт.

12

485542R5

LEVER

LINK, upper rear

1шт.

13

485543R1

PIN

upper link center

1шт.

18642R1

LOCK PIN,7/32" x 2 1/2", Slotted

Pin, 7/32" x 2 1/2", Slotted

1шт.

14

485524R1

PIN

BAR, plow beam

1шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

21646R1

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, 3/16" x 2 1/2", Slotted

1шт.

15

485557R1

SPRING

extension

2шт.

16

485545R1

BAR

ASSY, spring insert

2шт.

17

485544R1

HOLDER

spring mounting hook

1шт.

486365R1

WASHER

mounting hook

2шт.

460309R1

COTTER PIN

PIN, 11/64 special cot.

2шт.

18

485548R2

WASHER

ADJUSTER, spring

2шт.

485555R1

BOLT,Hex, 1/2" - 13 x 4 1/4"

1/2-13 x 4 full thrd hex-hd type II

2шт.

21711R1

WASHER

17/32 x 2-1/2 x 11 ga C-Z

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

19

485551R2

TUBE

ASSY, spring

1шт.

20

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 PTF str lub

5шт.

22

16964R91

FITTING

1/4-28 NS 90 deg lub

1шт.

23

485526R1

SHAFT

pivot bracket, machines built prior to 1969 equipped with steel beams

1шт.

519250R1

SLOTTED NUT

1-1/4-12 slt hex.

1шт.

471323R1

LINCH PIN

PIN, pivot lock

1шт.

21643R1

COTTER PIN,1/8" x 2 1/4"

1/8" x 2 1/4"

1шт.

24

BRACKET, pivot casting, on orders for 485556R1, furnish ref, no 2 and two washers 547213R2

1шт.

REF # 24 IS P/N 485556R1 WHICH SUBS TO REF #2 122558C2 AND (2) WASHERS P/N 547213R2

1шт.

25

485535R1

WASHER

WASHER, upper mtg horseshoe, machines built, Serial Range: prior-1976

2шт.

26

SUPPORT, w/bolt & locknut, on orders for 547266R1 furnish ref. no. 2 and two washers 547213R2

1шт.

REF # 26 IS P/N 547266R91 WHICH SUBS TO REF #2 122558C2 AND (2) WASHERS P/N 547213R2

1шт.
