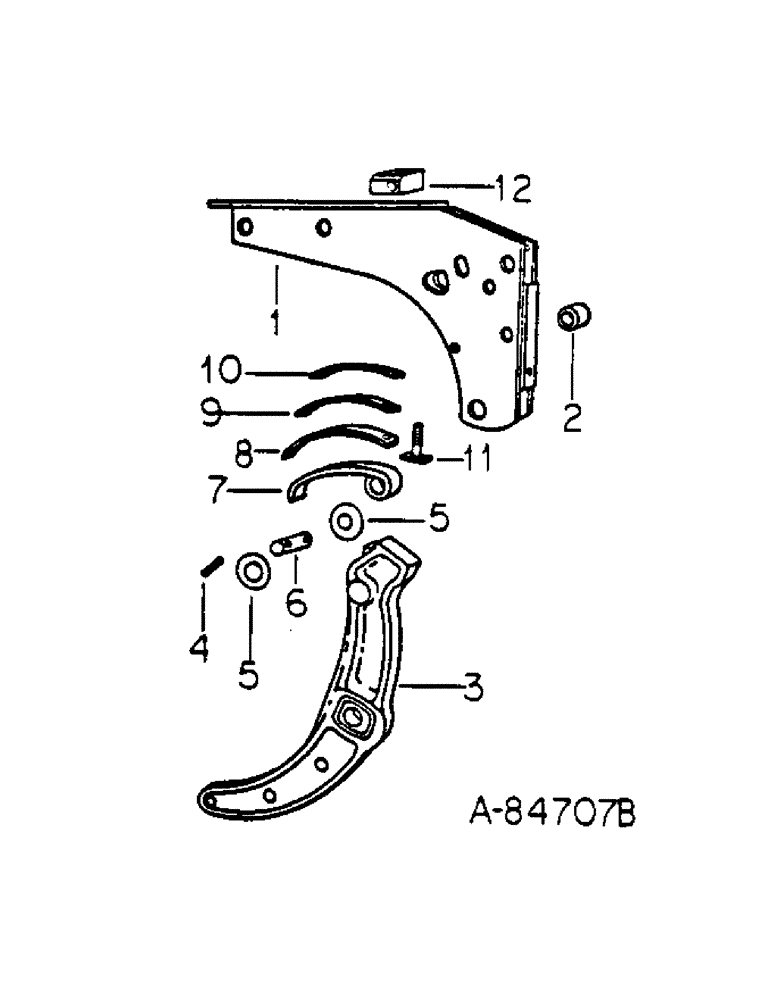

Запчасти Case IH 700 (AK-17[A]) - SPRING TRIP BEAM UNIT FOR UNITS E, F, G, H, L & M, ONE PER FURROW

1

482782R93

PLATE

ASSY, beam trip side

1шт.

465799R1

BOLT (SPREADER),Hex, 1" x 3 1/2", Drilled

BOLT, 1 x 3-1/2 dld-hex-hd mach

1шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt-hex.

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

2

522432R2

SPACER

STOP, trip beam, also spacer

1шт.

17651R1

BOLT,Hex, 5/8" - 11 x 3 1/4"

5/8 x 3-1/4 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

465800R2

BEAM

trip

1шт.

4

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, , ESNA 1/4" x 1 1/2", Slotted

2шт.

5

522473R1

WASHER

49/64 x 1-3/4 x 11 ga, on trip spring roller

2шт.

6

465801R1

ROLLER

trip spring

1шт.

7

465868R1

SPRING

beam trip

1шт.

Q784

PIN

3/4 x 2-15/16 std-hd

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

1шт.

8

524454R1

VALVE SPRING

SPRING, lower helper

1шт.

9

524453R1

VALVE SPRING

SPRING, middle helper

1шт.

10

524452R1

VALVE SPRING

SPRING, upper helper

1шт.

11

484522R91

ADJUSTMENT SCREW

adjusting, spring trip

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

1шт.

12

122893C1

BAR, reinforcement block

1шт.

21692R1

BOLT,Hex, 5/8" - 11 x 10", Gr 5

5/8 x 10 type 5

1шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

3/4 x 5-1/4 type 5

1шт.
