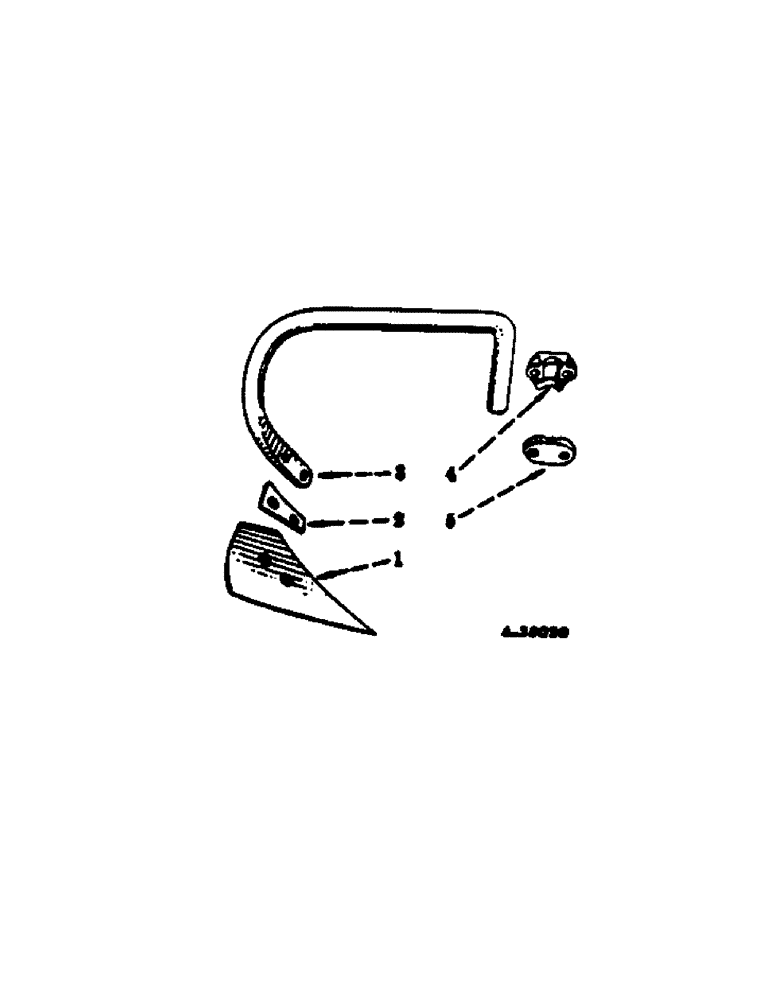

Запчасти Case IH 700 (AK-16[A]) - COMBINATION JOINT ATTACHMENT, ONE PIECE BLADE, ONE PER FURROW

1

510576R11

BLADE ASSY, RH, steel

1шт.

15585R1

BOLT

3/8 x 1-1/2 no. 3 plow

1шт.

102635

NUT,3/8"-16, G5

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

1шт.

2

510572R1

BLOCK, adjusting RH

1шт.

3

520787R1

SHANK, jointer RH

1шт.

4

519343R1

BLOCK, jointer

1шт.

5

519342R1

CAP, jointer block

1шт.

15126R1

BOLT, 1/2 x 2-3/4 sq-nk crg

2шт.

102637

NUT,1/2"-13, G5

2шт.
