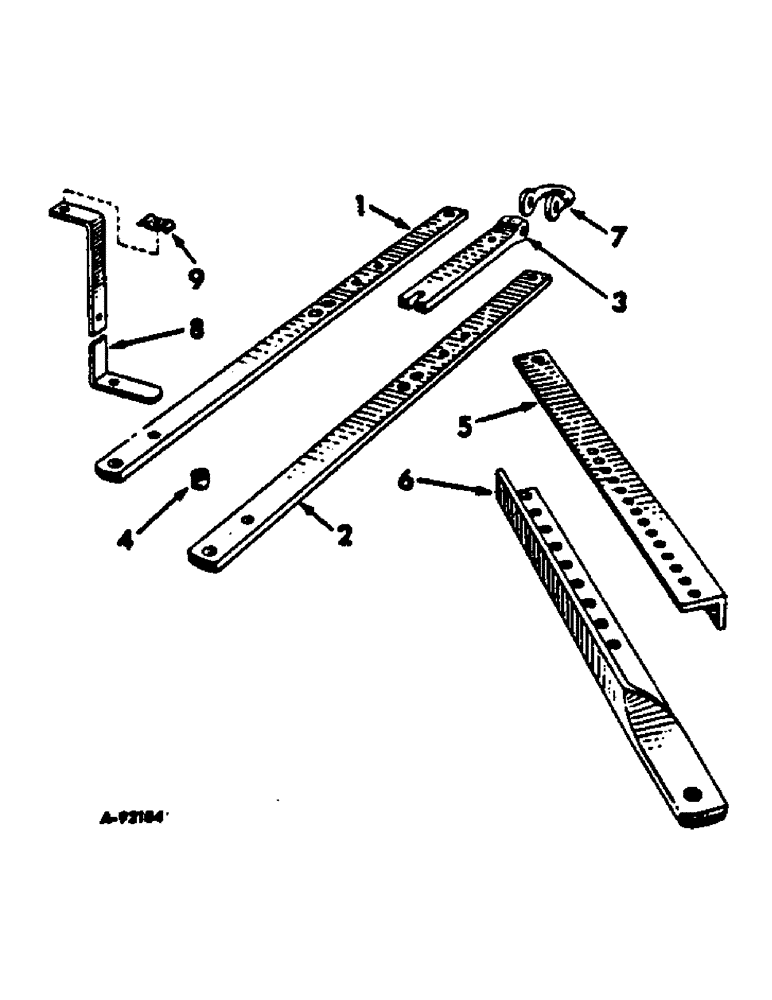

Запчасти Case IH 700 (AK-15) - HITCH

1

518787R2

DRAWBAR, upper, for units A, B, E, F, J & L, for units C, D, G, H, K & M, Serial Range: up-1968

1шт.

1

540035R1

BAR

DRAWBAR, upper, for units C, D, G, H, K, M, N & P, 1969 and since

1шт.

2

518788R2

DRAWBAR, lower, for units A, B, E, F, J & L, for units C, D, G, H, K & M, Serial Range: up-1968

1шт.

2

540036R1

BAR

DRAWBAR, lower, for units C, D, G, H, K, M, N & P 1969 and since

1шт.

3

526572R2

HEAD, drawbar, for units A, B, E, F, J & L, for units C, D, G, H, K & M, Serial Range: up-1968

1шт.

3

540037R1

EXTENSION

EXTENTION, pullbar, for units C, D, G, H, K, M, N & P 1969 and since

1шт.

4

PO15237

SPACER

2шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 C-Z hex-hd cap

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 C-Z hex-hd cap

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

4шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

102639

NUT,5/8"-11, G5

WASHER, 3/4 C-Z med lock

1шт.

280954

NUT,3/4"-10, G5

1шт.

271821

BOLT,Hex, 7/8" - 9 x 3 1/2", Gr 5

SCREW, 7/8-9 x 3-1/2 znd hex-hd cap

1шт.

131047

WASHER,7/8"

7/8"

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

5

526574R1

BRACE

rear diagonal, for units A, B, E, F, J & L

1шт.

5

518791R2

SUPPORT

BRACE, rear diagonal, for units C, D, G, H, K, M, N & P

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

518792R1

BRACE

front diagonal, for units C, D, G, H, K, M, N & P

1шт.

6

526573R1

BRACE

front diagonal, for units A, B, E, F, J & L

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

7

526568R1

CLEVIS

for units A, B, E, F, J & L, for units C, D, G, H, K & M, Serial Range: up-1968

1шт.

271864

WEAR RING

SCREW, 1-8 x 4-1/4 znp hex-hd cap

1шт.

23443R1

LOCK NUT,1"-8, GC

NUT, 1-8 cnp nylon insert

1шт.

8

518843R1

SUPPORT

hose

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

9

515030R1

CLAMP

hose

2шт.

20897R1

BOLT,Short NK, 3/8"-16 x 2 1/2", G2

3/8-16 x 2-1/2 znp sq-nk crg

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 C-Z wing

1шт.
