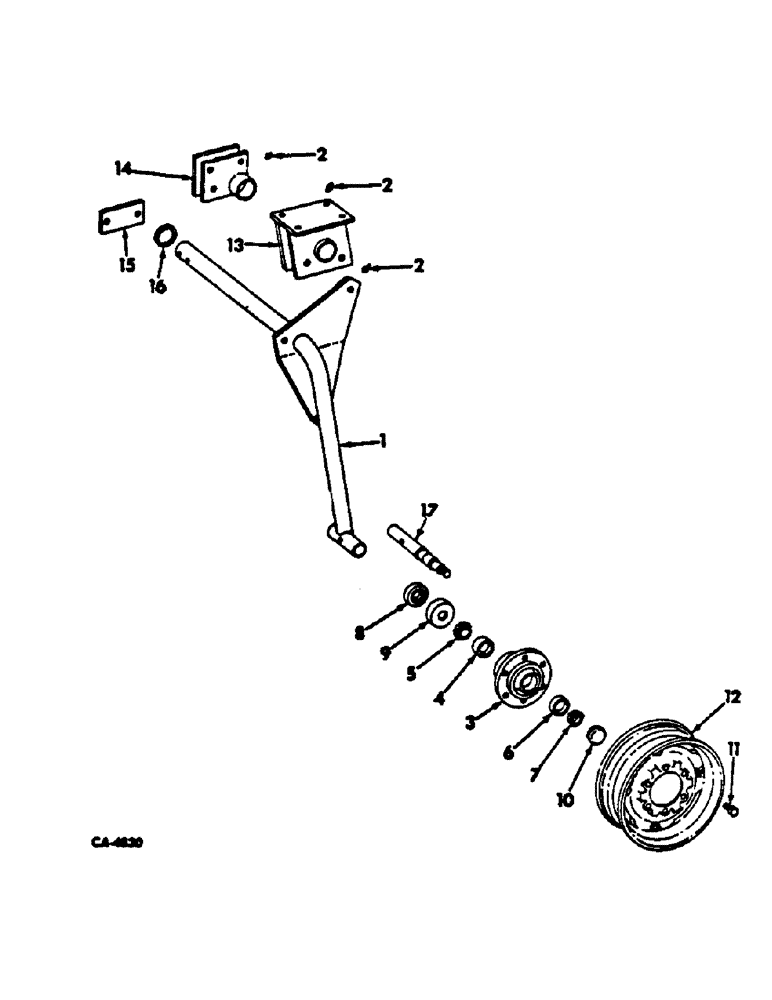

Запчасти Case IH 700 (AK-11) - LAND AXLE, UNIT N & P

1

58665C2

AXLE

ASSY, land

1шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 PTF str lub

3шт.

3

465496R11

HUB

W/BRG ASSY

1шт.

4

663558R1

BEARING CUP

BEARING, wheel hub inner cup

1шт.

5

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING, wheel hub inner cone

1шт.

6

651817R1

BEARING CUP

BEARING, wheel hub outer cup

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, wheel hub outer cone

1шт.

8

654674R91

OIL SEAL

wheel hub oil

1шт.

9

654675R1

RING

oil seal wear

1шт.

10

663906R1

CAP

hub

1шт.

11

665042R1

BOLT, 1/2-20 wheel

6шт.

120371

NUT,1/2"-20, G5

1шт.

12

481344R91

WHEEL

14 in.

1шт.

13

491573R1

BEARING

ASSY, LH land

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3/4 x 7 type 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

14

492368R1

SUPPORT

BEARING ASSY, RH land

1шт.

271794

BOLT,Hex, 3/4" - 16 x 2 1/4", Gr 5

3/4-NF x 2-1/4 type 5

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4 x 3-1/4 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

15

491580R1

BAR

SPACER, RH land brg

1шт.

16

491586R1

WASHER

land axle

1шт.

22950R1

COTTER PIN,3/8" x 3 1/2"

Pin, Split (Cotter), 3/8" x 3 1/2"

1шт.

17

58666R1

SPINDLE

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex. jam

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

101100C92

HUB

PACKAGE, hub & spindle, consists of ref nos 3 thru 10, 12, 17 and the following parts

1шт.

58664C2

TUBE,2.03" ID, 3" OD, 127 mm Length

1шт.
