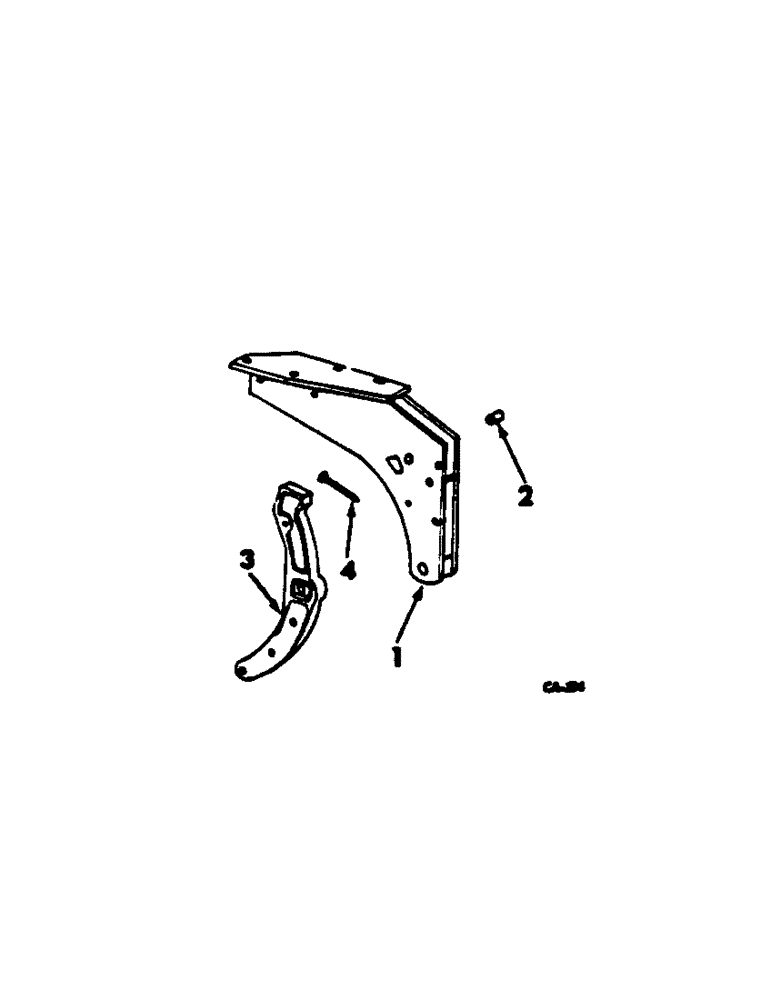

Запчасти Case IH 700 (AG-06) - TRIP BEAM, SHEAR PIN, ONE PER ROW

1

482782R92

TRIP

PLATE ASSY, side

1шт.

465799R1

BOLT (SPREADER),Hex, 1" x 3 1/2", Drilled

BOLT, 1 x 3-1/2 dld-hex-hd mach

1шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt-hex.

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

2

522432R2

SPACER

STOP & SPACER, beam

1шт.

17651R1

BOLT,Hex, 5/8" - 11 x 3 1/4"

5/8 x 3-1/4 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

482983R1

BEAM, shear trip

1шт.

4

468868R2

PIN,14.28mm OD x 83.31mm L

trip beam shear, 1 extra

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening, 1 extra 1/8" x 3/4"

2шт.
