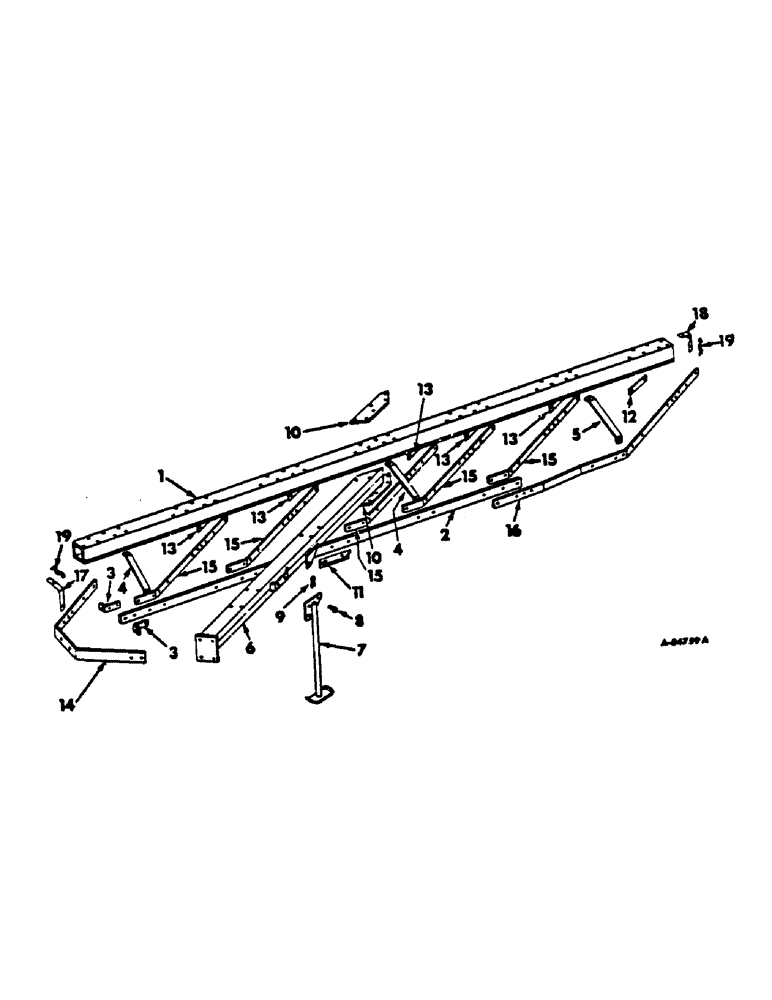

Запчасти Case IH 700 (AG-04) - MAIN FRAME, FOR USE WITH AUTOMATIC TRIP

1

486749R1

FRAME ASSY, main, seven furrow 16 in. plows, unit A

1шт.

1

486491R1

FRAME ASSY, main, four furrow 16 in., unit B

1шт.

1

486494R1

FRAME ASSY, main, five furrow 16 in., unit C

1шт.

1

486497R1

FRAME ASSY, main, six furrow 16 in., unit D

1шт.

1

489836R1

TUBE ASSY, main, five furrow 18 in., unit E

1шт.

1

489837R1

TUBE ASSY, main, six furrow 18 in., unit F

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 C-Z hex-hd cap, 5 for unit A, 3 for units B & E, 4 for units D, C & F

1шт.

19995R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

SCREW, 5/8-11 x 8-1/2 C-Z hex-hd cap, unit C

1шт.

19865R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW, 5/8-11 x 7-3/4 C-Z hex-hd cap, 13 for unit A, 9 for unit B, 10 for unit C, 14 for unit D, 12 for units E & F

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 18 for Units A & D, 12 for Unit B, 15 for Units C & E, 18 for Units D and F 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 18 for units A, D & F, 12 for unit B, 15 for unit C & E

1шт.

2

482762R1

BAR

side rail, seven furrow 16 in. plows

1шт.

2

486509R1

BAR, side rail, four & five furrow 16 in.

1шт.

2

486510R1

BAR, side rail, six furrow 16 in.

1шт.

2

489842R1

BAR, side rail, five furrow 18 in.

1шт.

2

489843R1

BAR, side rail, six furrow 18 in.

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Units E & F Hex, 3/4"-10 x 3", G5

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap, 7 for unit A, 4 for units B & D, 2 for unit C, 3 for unit E, 5 for unit F

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hex-hd cap, units A, B & C, 2 for unit D

1шт.

271620

BOLT

SCREW, 3/4-10 x 4-1/4 hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 8 for unit A; 5 for unit B; 3 for unit C; 6 for D & F; 4 for E

1шт.

280954

NUT,3/4"-10, G5

8 for unit A, 5 for unit B, 3 for unit C, 6 for unit D 3/4"-10, G5

1шт.

3

482763R1

SUPPORT

BRACKET, rail bar

2шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

4

482764R1

BRACE, main frame, 16 in. plows

2шт.

4

489844R1

BRACE, main frame, 18 in. plows

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap, 2 for unit A, 1 for units B, C, D, E & F

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per screw

1шт.

280954

NUT,3/4"-10, G5

1 per screw 3/4"-10, G5

1шт.

19865R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW, 5/8-11 x 7-3/4 C-Z hex-hd cap, 2 for unit A

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 for Unit A 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 for unit A

1шт.

5

482765R1

BRACE, extension frame, 16 in. plows

1шт.

5

489845R1

BRACE, extension frame, 18 in. plows

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Units A, C, D, E & F Hex, 3/4"-10 x 3", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", Units A, C, D, E & F

2шт.

280954

NUT,3/4"-10, G5

units A, C, D, E & F 3/4"-10, G5

2шт.

19995R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

SCREW, 5/8-11 x 8-1/2 C-Z hex-hd cap, unit A

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Unit A 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., unit A

1шт.

6

482766R91

CHANNEL ASSY, pull, 16 in. plows

1шт.

6

489846R1

CHANNEL ASSY, pull, 18 in. plows

1шт.

7

482773R92

STAND ASSY

1шт.

271722

TIP,Hex, 5/8" - 11 x 1 7/8", Gr 5

SCREW, 5/8-11 x 1-7/8 C-Z hex-hd cap

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 nylon insert

1шт.

8

21808R1

HEADED PIN,5/8" x 1 1/2"

PIN, 5/8 x 1-1/2 C-Z std-hd

1шт.

9

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

10

482775R1

PLATE, pull channel connector, 16 in. plows

2шт.

10

489850R1

BAR, pull channel, 18 in. plows

2шт.

20492R1

SCREW, 3/4-10 x 8-1/2 C-Z hex-hd cap, 2 for unit E & F

1шт.

20575R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

SCREW, 3/4-10 x 8 C-Z hex-hd cap

2шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 C-Z hex-hd cap, 2 for units B, C & D, 3 for units E & F

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 C-Z hex-hd cap, 1 for units A, E & F, 3 for units B, C & D

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

11

482776R1

ANGLE, pull chanel, 16 in. and 18 in. plows

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

2шт.

21706R1

BOLT,Hex, 3/4" - 10 x 5 3/4", Gr 5

SCREW, 3/4-10 x 5-3/4 C-Z hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

12

(Not used in this application)

1шт.

13

(Not used in this application)

1шт.

14

482779R1

BRACKET, spreader

1шт.

280954

NUT,3/4"-10, G5

4шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

21704R1

BOLT,3/4" - 10 x 3 1/2", Gr 8

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

15

482780R1

SUPPORT

BAR, short rail, 16 in. plows

5шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap, 10 for unit A, 6 for units B, C & E, 8 for units D & F

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per screw

1шт.

280954

NUT,3/4"-10, G5

1 per screw 3/4"-10, G5

1шт.

16

482781R1

SUPPORT

BAR, rail extension, 16 in. plows

1шт.

16

489851R1

SUPPORT

BAR, rail extension, 18 in. plows

1шт.

Ref #16 - Add 484951R1 Bar, Rail Ext for 14" Plows 08/16/96

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2 for unit A Hex, 3/4"-10 x 3", G5

1шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

SCREW, 3/4-10 x 3-3/4 hex-hd cap, units A, C & D

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hex-hd cap, 2 for units C & D , Course threads

1шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 C-Z hex-hd cap, 2 for units A, C, E & F, 1 for unit D , Course threads

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap, unit D & F

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per screw

1шт.

280954

NUT,3/4"-10, G5

1 per screw 3/4"-10, G5

1шт.

17

486693R1

REINFORCEMENT

STRAP, front hose support

1шт.

18

486694R1

SUPPORT

CLIP, hose

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

19

515030R1

CLAMP

hose

2шт.
