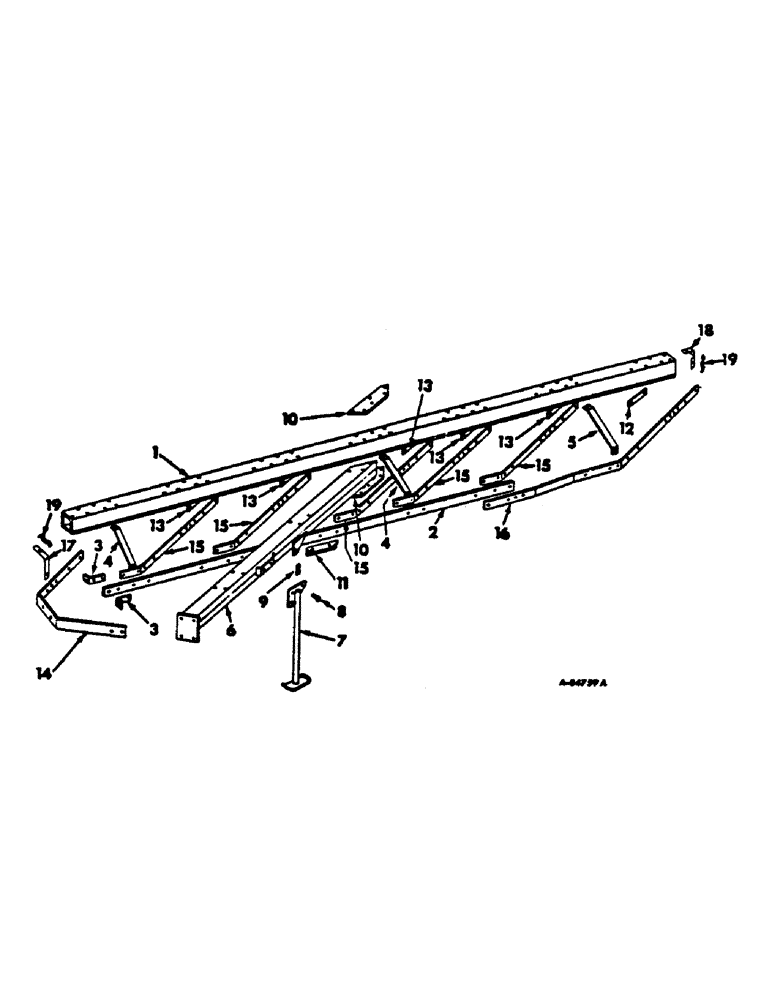

Запчасти Case IH 700 (AG-02) - MAIN FRAME, FOR USE WITH SPRING TRIP OR SHEAR PIN TRIP

1

486749R1

FRAME ASSY, main, seven furrow 16 in., unit A

1шт.

1

484952R1

FRAME ASSY, main, seven furrow 14, unit B

1шт.

1

486491R1

FRAME ASSY, main, four furrow 16 in., unit C

1шт.

1

486494R1

FRAME ASSY, main, five furrow 16 in., unit D

1шт.

1

486497R1

FRAME ASSY, main, six furrow 16 in., unit E

1шт.

1

486500R1

FRAME ASSY, main, four furrow 14 in., unit F

1шт.

1

486503R1

FRAME ASSY, main, five furrow 14 in., unit G

1шт.

1

486506R1

FRAME ASSY, main, six furrow 14 in., unit H

1шт.

1

489836R1

TUBE ASSY, main, five furrow 18 in., unit I

1шт.

1

489837R1

TUBE ASSY, main, six furrow 18 in., unit J

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8-11 x 7 C-Z hex-hd cap, 24 for units A & B, 14 for unit C & F, 17 for units D, G & I, 21 for units E, H & J

1шт.

22485R1

BOLT,5/8" x 7 1/4", Gr 5

SCREW 5/8-11 x 7-1/4 C-Z hex-hd cap, unit A, I & J

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8-11 x 7-1/2 C-Z hex-hd cap, 3 for units A & B, 1 for units C, D, F & g, 2 for units E, H, I & J

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 28 for Units A & B, 16 for Units C & F, 20 for Units D, G & I, 24 for Units E, H & J 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 28 for units A & B, 16 for units C & F, 20 for units D, G & I, 24 for units E, H & J, unit I and 24 for unit J

1шт.

2

482762R1

BAR

side rail, seven furrow 16 in. plows

1шт.

2

484955R1

BAR, side rail, seven furrow 14 in. plows

1шт.

2

486509R1

BAR, side rail, four & five furrow 16 in.

1шт.

2

486510R1

BAR, side rail, six furrow 16 in.

1шт.

2

486511R1

BAR, side rail, four & five furrow 14 in.

1шт.

2

486512R1

BAR, side rail, six furrow 14 in.

1шт.

2

489842R1

BAR, side rail, five furrow 18 in.

1шт.

2

489843R1

BAR, side rail, six furrow 18 in.

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap, 7 for units A & B, 5 for unit J, 4 for units C, E, F & H, 2 for unit D, 3 for units G & 1

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hex-hd cap, units A, B, C, F & G, 2 for units E & H , Course threads

1шт.

271620

BOLT

SCREW, 3/4-10 x 4-1/4 hex-hd cap, units C, D & E

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 8 for units A & B; 6 for unit J, E & H; 5 for units C & F; 4 for units G & I; 3 for unit D

1шт.

280954

NUT,3/4"-10, G5

8 for units A & B, 6 for unit J, E & H, 5 for units C & F, 4 for units G & I, 3 for unit D 3/4"-10, G5

1шт.

3

482763R1

SUPPORT

BRACKET, rail bar

2шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

4

482764R1

BRACE, main frame, 16 in. plows

2шт.

4

484956R1

BRACE, main frame, 14 in. plows

2шт.

4

489844R1

BRACE, main frame, 18 in. plows

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

19865R1

BOLT,Hex, 5/8" - 11 x 7 3/4", Gr 5

SCREW, 5/8-11 x 7-3/4 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

5

482765R1

BRACE, extension frame, 16 in. plows

1шт.

5

484957R1

BRACE, extension frame, 14 in. plows

1шт.

5

489845R1

BRACE, extension frame, 18 in. plows

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Units A, B, D, G, I & J Hex, 3/4"-10 x 3", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per screw

1шт.

280954

NUT,3/4"-10, G5

1 per screw 3/4"-10, G5

1шт.

6

482766R91

CHANNEL ASSY, pull, 16 in. plows

1шт.

6

484958R1

CHANNEL ASSY, pull, 14 in. plows

1шт.

6

489846R1

TUBE ASSY, pull, 18 in. plows

1шт.

7

482773R92

STAND ASSY

1шт.

271722

TIP,Hex, 5/8" - 11 x 1 7/8", Gr 5

SCREW, 5/8-11 x 1-7/8 C-Z hex-hd cap

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 nylon insert

1шт.

8

21808R1

HEADED PIN,5/8" x 1 1/2"

PIN, 5/8 x 1-1/2 C-Z std hd

1шт.

9

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

10

482775R1

PLATE, pull channel connector, 16 in. plows

2шт.

10

484966R1

PLATE, pull channel connector, 14 in. plows

2шт.

10

489850R1

BAR, pull channel, 18 in. plows

2шт.

20575R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

SCREW, 3/4-10 x 8 C-Z hex-hd cap

2шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 C-Z hex-hd cap

1шт.

20492R1

SCREW, 3/4-10 x 8-1/2 C-Z hex-hd cap

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

11

482776R1

ANGLE, pull channel, 16 in. and 18 in. plows

1шт.

11

484949R1

ANGLE, pull channel, 14 in. plows

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap, 1 for units F, G & H, 2 for units C, D & E

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap, units F, G & H

1шт.

21706R1

BOLT,Hex, 3/4" - 10 x 5 3/4", Gr 5

SCREW, 3/4-10 x 5-3/4 C-Z hex-hd cap

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

For units I & J Hex, 3/4"-10 x 3", G5

2шт.

22715R1

SCREW, 3/4-10 x 5-3/4 znd hex-hd cap, 2 for units I & J

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

12

482777R1

BAR

beam spacer

1шт.

13

482778R1

BAR

beam spacer short rail

5шт.

14

482779R1

BRACKET, spreader

1шт.

280954

NUT,3/4"-10, G5

6шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

21704R1

BOLT,3/4" - 10 x 3 1/2", Gr 8

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

15

482780R1

SUPPORT

BAR, short rail, 16 in. and 18 in. plows, 3 for units F, G, & I, 4 for units H & J

5шт.

15

484950R1

BAR, rail short, 14 in. plows, 5 for units A & B, 3 for units C & D, 4 for unit E

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap, 10 for units A & J, 6 for units C, D & F, 8 for units E, H & I

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 10 for unit A, 6 for units C, D & F, 8 for units E & H, 11 for unit I, 14 for unit J

1шт.

280954

NUT,3/4"-10, G5

10 for unit A, 6 for units C, D & F, 8 for units E & H, 11 for unit I, 14 for unit J 3/4"-10, G5

1шт.

16

482781R1

SUPPORT

BAR, rail extension, 16 in. plows

1шт.

16

484951R1

BAR, rail extension, 14 in. plows

1шт.

16

489851R1

SUPPORT

BAR, rail extension, 18 in. plows

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

1шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

3/4-10 x 3-3/4 C-Z hex-hd cap, units A, B, D, E, H, I & J

1шт.

271620

BOLT

SCREW, 3/4-10 x 4-1/4 hex-hd cap, unit G

1шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 C-Z hex-hd cap, 2 for units A, B, D, H, I & J, 1 for units E & G , Course threads

1шт.

272725

SNAP RING

SCREW, 3/4-10 x 5-1/4 hex-hd cap, unit G

1шт.

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

SCREW, 3/4-10 x 5-1/2 hex-hd cap, unit E

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per screw

1шт.

280954

NUT,3/4"-10, G5

1 per screw 3/4"-10, G5

1шт.

17

486693R1

REINFORCEMENT

STRAP, front hose support

1шт.

18

486694R1

SUPPORT

CLIP, hose

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

19

515030R1

CLAMP

hose

2шт.
