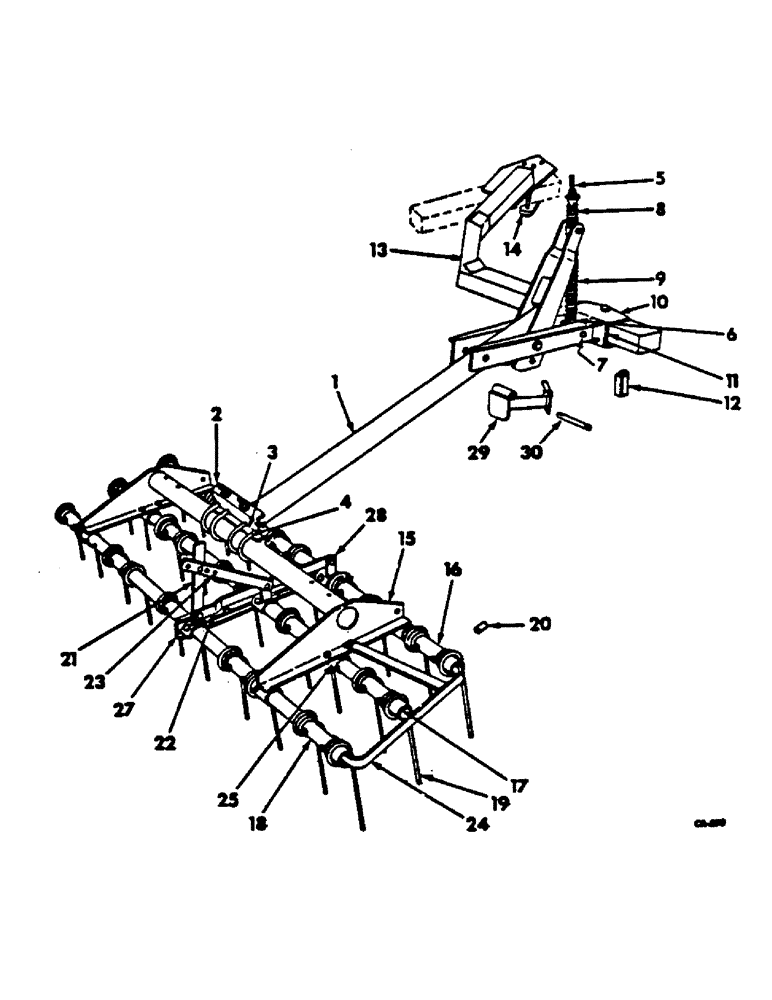

Запчасти Case IH 700 (AG-27) - MULCHER, CENTER BAR AND END GUARD ATTACHMENT, FOR FOUR, FIVE AND SIX FURROW PLOWS

1

490950R1

ARM ASSY, carrier upper

1шт.

2

485580R1

PLATE, adjustable head

1шт.

272120

CONNECTING LINK

7/16-14 C-Z hex. jam

2шт.

21688R1

SCREW, 7/16-14 x 1/2 C-Z sq-hd ov-pt set

2шт.

3

485581R1

CLAMP

tube

1шт.

4

485582R1

BOLT

carrier arm U

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.

5

485583R1

ROD ASSY, compression spring

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-16 C-Z hex. jam

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

6

1431BX

COLLAR CLAMP

COLLAR ASSY, compression rod

1шт.

21689R1

SCREW

1/2-13 x 3/4 C-Z sq-hd cup-pt set

1шт.

7

486062R1

PIN, 3/4 x 5/5/16 zn-pltd str

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

8

485611R1

SPRING

compression top

1шт.

9

485612R1

SPRING, compression bottom

1шт.

10

485584R1

CLAMP ASSY, adjusting

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 C-Z hex-hd mach

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 NF 2 way lock

1шт.

21693R1

SCREW, 5/8-11 x 2-1/4 C-Z sq-hd ov-pt set

2шт.

124847

COLLAR

5/8-11 C-Z hex. jam

2шт.

271805

BOLT,Hex, 3/4" - 16 x 5", Gr 5

SCREW, 3/4-10 x 5 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

11

485585R1

PLATE, back

1шт.

12

485586R1

GUARD ASSY, bolt

1шт.

13

490954R1

MOUNTING ASSY

1шт.

488285R1

STUD, mounting assy

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

14

485588R1

CLAMP, mounting

2шт.

15

485616R2

FRAME

ASSY, four furrow plow mulcher

1шт.

15

490549R1

FRAME

ASSY, five furrow plow mulcher

1шт.

15

485615R2

FRAME

ASSY, six furrow plow mulcher

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

4шт.

16

485599R1

TUBE

BAR, 1st tooth, four furrow plow mulcher

1шт.

16

490550R1

TUBE

BAR, 1st tooth, five furrow plow mulcher

1шт.

16

485596R1

TUBE

BAR, 1st tooth, six furrow plow mulcher

2шт.

17

485605R1

TUBE

BAR, 2nd tooth center, 4 bottom, four furrow plow mulcher

1шт.

17

490552R1

TUBE

BAR, 2nd tooth center, 2 bottom, five furrow plow mulcher

1шт.

17

485604R1

TUBE

BAR, 2nd tooth center, 3 bottom, five furrow plow mulcher

1шт.

17

485604R1

TUBE

BAR, 2nd tooth center, 3 bottom, six furrow plow mulcher

2шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), (as required) 1/4" x 2 3/4"

3шт.

18

485600R1

TUBE

BAR, 3rd tooth, four furrow plow mulcher

1шт.

18

490551R1

TUBE

BAR, 3rd tooth, five furrow plow mulcher

1шт.

18

485597R1

TUBE

BAR, 3rd tooth, six furrow plow mulcher

2шт.

19

72901C1

TOOTH

spring, four furrow mulcher, 15 used with center bar

10шт.

19

72901C1

TOOTH

spring, five furrow plow mulcher, 21 used with center bar

14шт.

19

72901C1

TOOTH

spring, six furrow plow mulcher, 24 used with center bar

16шт.

20

485591R1

SPACER

BUSHING, tooth, four furrow plow mulcher, 30 used with center bar

20шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder, 30 used with center bar

20шт.

472144R1

NUT

3/8-16 MF two-way lock C-Z, 30 used with center bar

20шт.

20

485591R1

SPACER

BUSHING, tooth, five furrow plow mulcher, 42 used w/center bar

12шт.

472144R1

NUT

7/16-14 MF two-way lock, used with center bar

24шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder, 40 used with center bar

24шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 C-Z hex-hd cap

2шт.

20

485591R1

SPACER

BUSHING, tooth, six furrow plow mulcher

32шт.

472144R1

NUT

7/16-14 MF two-way lock, 48 used with center bar

32шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder, 48 used with center bar

32шт.

21

485592R1

ARM

HANDLE ASSY

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

SCREW, 7/16-14 x 2-3/4 C-Z hex-hd cap, one for 6, furrow

2шт.

472213R1

NUT, 7/16-14 NF two way lock, one for 5, furrow

2шт.

22

485593R1

SUPPORT

REACH, handle

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN, 7/16 x 1 zn-pltd std-hd

4шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

3шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

3шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

23

485594R1

BAR

REACH, adjusting

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN, 7/16 x 1 zn-pltd std-hd

4шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

24

485606R1

GUARD ASSY, frame, end guard attachment

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25

485603R1

BUSHING

ASSY, center bar

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

26

490952R1

PIN, hinge

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

490953R1

PIN, lock

1шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

520177R11

PIN

ASSY, quick attachable cot.

1шт.

27

485598R1

SUPPORT

RAIL, center, four & five furrow plow mulcher

2шт.

120376

NUT,5/16"-18, G5

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

28

485601R1

ARM

POST ASSY, center, four & five furrow plow mulcher

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 MF two-way lock C-Z

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN, 7/16 x 1-1/2 C-Z std-hd

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

SCREW, 7/16-14 x 2-3/4 C-Z hex-hd cap

1шт.

29

490951R1

ARM ASSY, carrier lower

1шт.

110118

SCREW, 5/8-11 x 2 C-Z sq-hd ov-pt

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex. jam

1шт.
