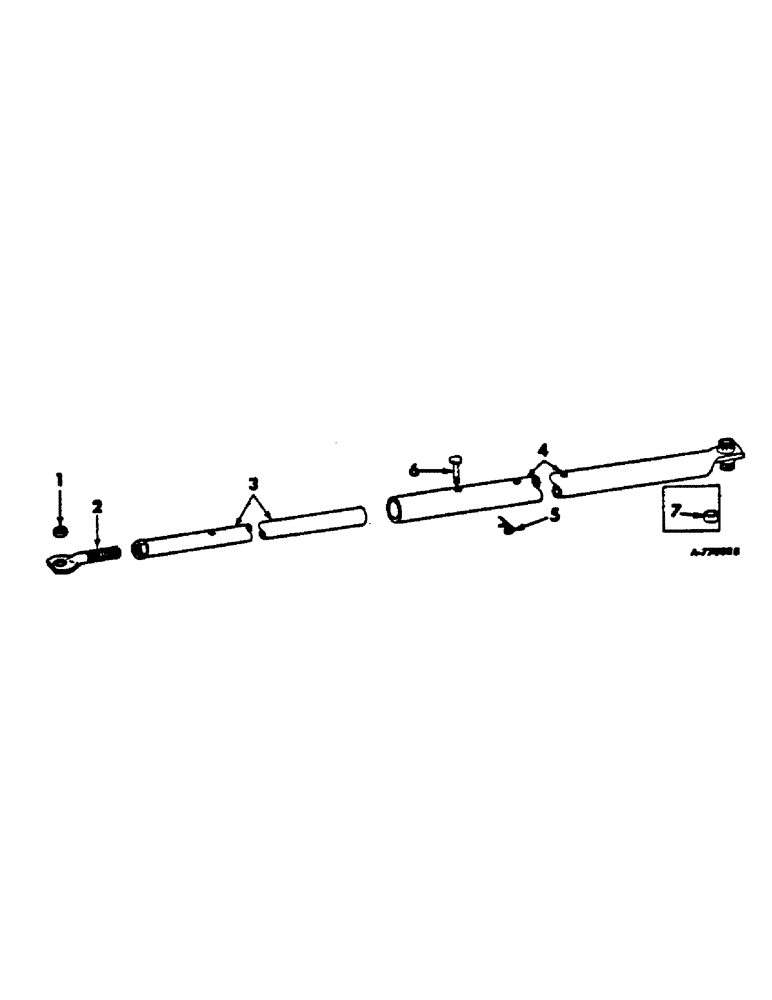

Запчасти Case IH 700 (AG-25) - FRONT STEERING LINKAGE, FOR USE WITH FURROW OR LAND HITCH

1

471335R2

SPACER

steering arm

2шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 zn-pltd nylon insert

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

1шт.

2

489858R2

LINK ASSY.

LINK ASSY, front steering adjusting

1шт.

516773R1

NUT

1/8 hex. jam

1шт.

3

482938R92

PIPE ASSY, steering inside, used on 5, 6, 7 & 8 furrow plows with land or furrow hitch

1шт.

3

482940R91

PIPE ASSY, steering inside, for land hitch

1шт.

3

486516R1

PIPE ASSY, front steering inside, for 5 & 6 furrow plows with land hitch

1шт.

3

486517R1

PIPE ASSY, front steering inside, for 4 & 5 furrow plows with in the furrow steering

1шт.

4

482942R2

TUBE, front steering, order 1 tube assy 491321R1, 1 cap screw 19873R1

1шт.

4

491321R1

TUBE ASSY, outside front steering, will work for 482942R2, used w/6, 7 & 8 plows in the furrow hitch & 5, 6, 7 & 8 plows on the land hitch

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

2шт.

4

485650R1

TUBE, front steering, order (1) tube assy 491323R1, (1) cap screw 19873R1

1шт.

4

491323R1

TUBE ASSY, outside front steering, used w/6, 7 & 8 plows on the land drawbar

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

2шт.

4

486520R1

TUBE, front steering, order 1 tube assy 491327R1, (1) cap screw 19873R1

1шт.

4

491327R1

TUBE ASSY, outside steering, will work for 486520R1, used w/4 & 5 plows in the furrow hitch

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

2шт.

4

486583R1

TUBE, front steering, order (1) tube assy 491325R1, (1) cap screw 19873R1

1шт.

4

491325R1

TUBE ASSY, outside front steering, will work for 486583R1, used w/5, 6 & 7 plows on the land drawbar

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

2шт.

4

486521R1

TUBE FRONT STEERING, order (1) tube assy 491329R1, (1) cap screw 19873R1

1шт.

4

491329R1

TUBE ASSY, outside front steering, used w/5, 6 & 7 plows in the furrow hitch

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

2шт.

4

489861R1

LINK ASSY, front steering, on land fixed drawbar hitch

1шт.

4

489863R1

LINK ASSY, front steering, on land and in the furrow

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 znd hex-hd cap

1шт.

231-14012

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 nylon insert

3шт.

5

520175R1

CLIP

PIN, quick-attachable cot.

1шт.

6

625214R1

PIN, 1/2 x 2-7/8 std-hd

1шт.

7

471335R2

SPACER

steering arm, Serial Range: up-1968

1шт.
