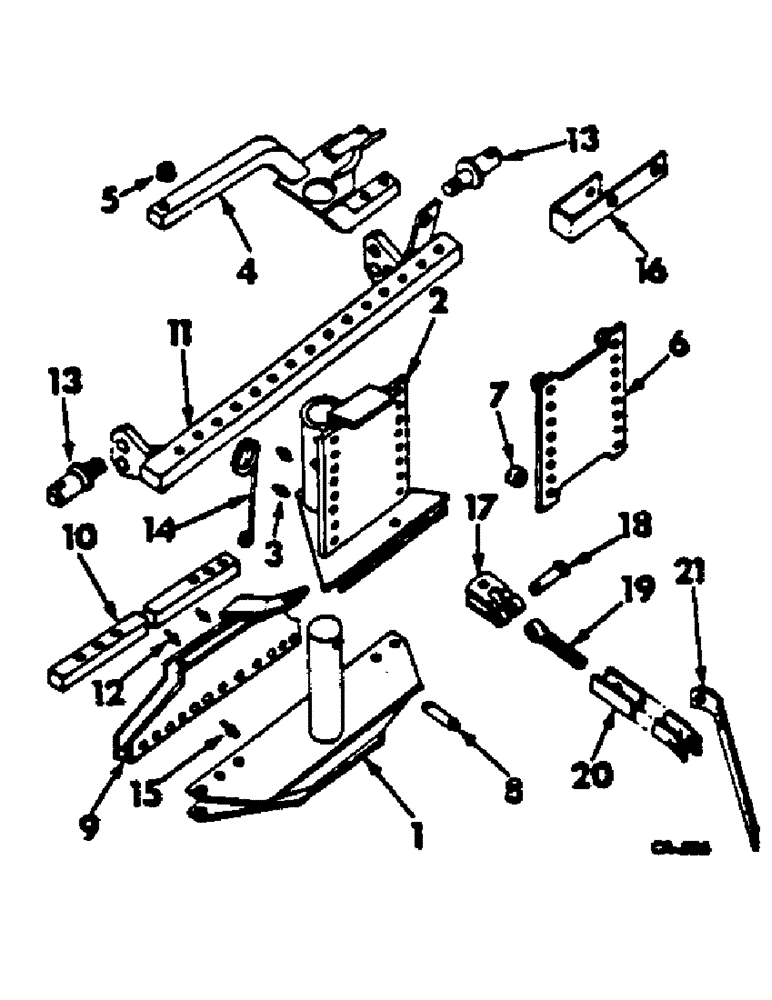

Запчасти Case IH 700 (AG-24) - FURROW SHIFTING HITCH

1

476687R93

PIVOT ASSY, drawbar

1шт.

21720R1

WASHER

2-17/32 x 3-1/4 x 16 ga C-Z

2шт.

2

484777R1

BRACKET ASSY, pivot

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF2 str lub

2шт.

4

484655R92

ARM ASSY, front steering

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 zn-pltd nylon insert

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

1шт.

5

471335R2

SPACER

steering arm

1шт.

6

485974R1

PLATE ASSY, pivot bracket rear

1шт.

21705R1

SCREW, 3/4-10 x 3-3/4 C-Z hex-hd cap

7шт.

21449R1

BOLT,Hex, 3/4" - 10 x 4", Gr 8

SCREW, 3/4-10 x 4 C-Z hex-hd cap type 4

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

7

485976R1

SPACER, pivot bracket

2шт.

8

473149R1

PIN, pivot shaft

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

9

492261R1

GUIDE ASSY, shifting hitch

1шт.

4, 5 & 6 furrow for 706, 756, 806 & 856 tractors 4 & 5 furrow for Farmall 656 tractors w/two point fast hitch

1шт.

9

492263R1

GUIDE

ASSY, shifting hitch

1шт.

4, 5 & 6 furrow for 706, 756, 806 & 856 tractors 4 & 5 furrow for 656 tractors w/category II three point hitch

1шт.

10

492271R1

BAR, guide

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 4-1/2 C-Z hex-hd cap

2шт.

21700R1

BOLT,Hex, 3/4" - 10 x 6 1/4", Gr 5

SCREW, 3/4-10 x 6-1/4 C-Z hex-hd cap

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

11

481884R92

BAR

ASSY, shifting hitch

1шт.

4, 5 & 6 furrow for 706, 756, 806 & 856 tractors 4 & 5 furrow for Farmall 656 tractors w/two point fast hitch

1шт.

11

492254R1

BAR

ASSY, shifting hitch

1шт.

4, 5 & 6 furrow for 706, 756, 806 & 856 tractors 4 & 5 furrow for 656 tractors w/category II three point hitch

1шт.

12

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28NF, 2 str lub

2шт.

13

472790R1

STUD

hitch lower

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex.

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

2шт.

14

463115R1

SUPPORT, hydraulic hose

1шт.

15

16964R91

FITTING

1/4-28 NS 90 deg taper lub

1шт.

16

481878R1

BRACE, shifting hitch

1шт.

4, 5 & 6 furrow for 706, 756, 806 & 856 tractors 4 & 5 furrow for Farmall 656 tractors w/two point fast hitch

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

17

471355R2

CLEVIS

drag link

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

18

21675R1

PIN

3/4 x 3-1/4 zn-pltd std-hd

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

21645R1

PIN, 1/4 x 1-3/8 C-Z cot.

1шт.

19

471356R1

BOLT

BOLT, drag link eye

1шт.

20

482917R91

LINK ASSY, drag

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

462248R1

LOCK NUT

3/4-10 hex. lock

1шт.

21

482919R1

BRACKET, drag link

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

21706R1

BOLT,Hex, 3/4" - 10 x 5 3/4", Gr 5

SCREW, 3/4-10 x 5-3/4 C-Z hex-hd cap

1шт.
