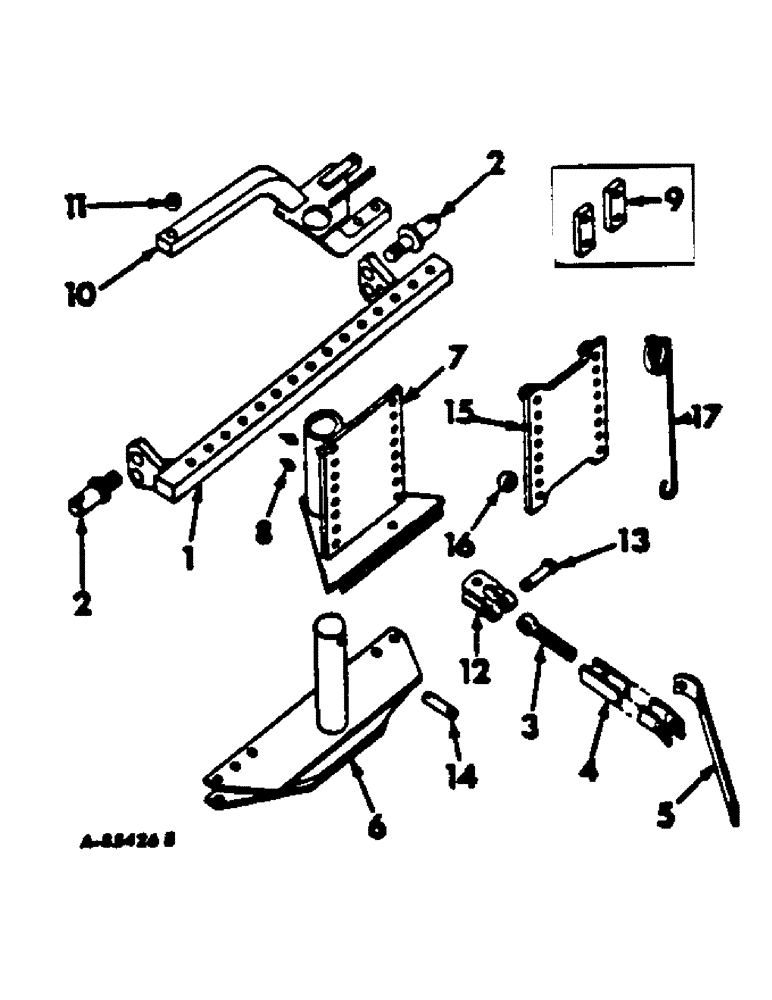

Запчасти Case IH 700 (AG-23) - FURROW HITCH

1

484776R1

BAR ASSY

1шт.

4, 5 & 6 furrow for 706, 756, 806 & 856 tractors 4 & 5 furrow for 656 tractors w/category 1 two point fast hitch

1шт.

1

484773R1

BAR ASSY

1шт.

4, 5 & 6 furrow for 706, 756, 806 & 856 tractors 4 & 5 furrow for 656 tractors w/category 11 three point hitch

1шт.

1

489625R1

BAR ASSY

1шт.

5 & 6 furrow for 1206 & 1256 tractors w/category 111 three point hitch

1шт.

2

472790R1

STUD

hitch lower

2шт.

4, 5 & 6 furrow for 706, 756, 806 & 856 tractors 4 & 5 furrow for 656 tractors w/category 1 two point fast hitch

1шт.

4, 5 & 6 furrow for 706, 756, 806 & 856 tractors 4 & 5 furrow for 656 tractors w/category 11 three point hitch

1шт.

2

483659R1

STUD

hitch lower, see note C

2шт.

5 & 6 furrow for 1206 & 1256 tractors w/category 111 three point hitch

1шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex.

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

2шт.

3

471356R1

BOLT

BOLT, drag link eye

1шт.

4

482917R91

LINK ASSY, drag

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

462248R1

LOCK NUT

3/4-10 hex. lock

1шт.

5

482919R1

BRACKET, drag link

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

6

476687R93

PIVOT ASSY, drawbar

1шт.

21720R1

WASHER

2-17/32 x 3-1/4 x 16 ga C-Z

2шт.

21449R1

BOLT,Hex, 3/4" - 10 x 4", Gr 8

SCREW, 3/4-10 x 4 C-Z hex-hd cap type 4

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

7

484777R1

BRACKET ASSY, pivot

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

2шт.

9

471350R1

BAR

CLIP, pivot bracket, Serial Range: 1965-1966

2шт.

271618

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 5

SCREW, 3/4-10 x 3-3/4 hex-hd cap

4шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

10

484655R92

ARM ASSY, front steering

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

21706R1

BOLT,Hex, 3/4" - 10 x 5 3/4", Gr 5

SCREW, 3/4-10 x 5-3/4 C-Z hex-hd cap

2шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 zn-pltd nylon insert

1шт.

280954

NUT,3/4"-10, G5

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

11

471335R2

SPACER

steering arm

1шт.

12

471355R2

CLEVIS

drag link

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

13

21675R1

PIN

3/4 x 3-1/4 zn-pltd std-hd

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

21645R1

PIN, 1/4 x 1-3/8 C-Z cot.

1шт.

14

473149R1

PIN, pivot shaft

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

15

485974R1

PLATE ASSY, pivot bracket rear, 1966 up

1шт.

21705R1

SCREW, 3/4-10 x 3-3/4 C-Z hex-hd cap

7шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

21449R1

BOLT,Hex, 3/4" - 10 x 4", Gr 8

SCREW, 3/4-10 x 4 C-Z hex-hd cap

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

16

485976R1

SPACER, pivot bracket, 1966 up

2шт.

17

463115R1

SUPPORT, hose

1шт.
