(AG-21) - ON LAND HITCH ADAPTER PACKAGE, FOR CATEGORY II AND III THREE POINT HITCH

Запчасти Case IH 700 (AG-21) - ON LAND HITCH ADAPTER PACKAGE, FOR CATEGORY II AND III THREE POINT HITCH

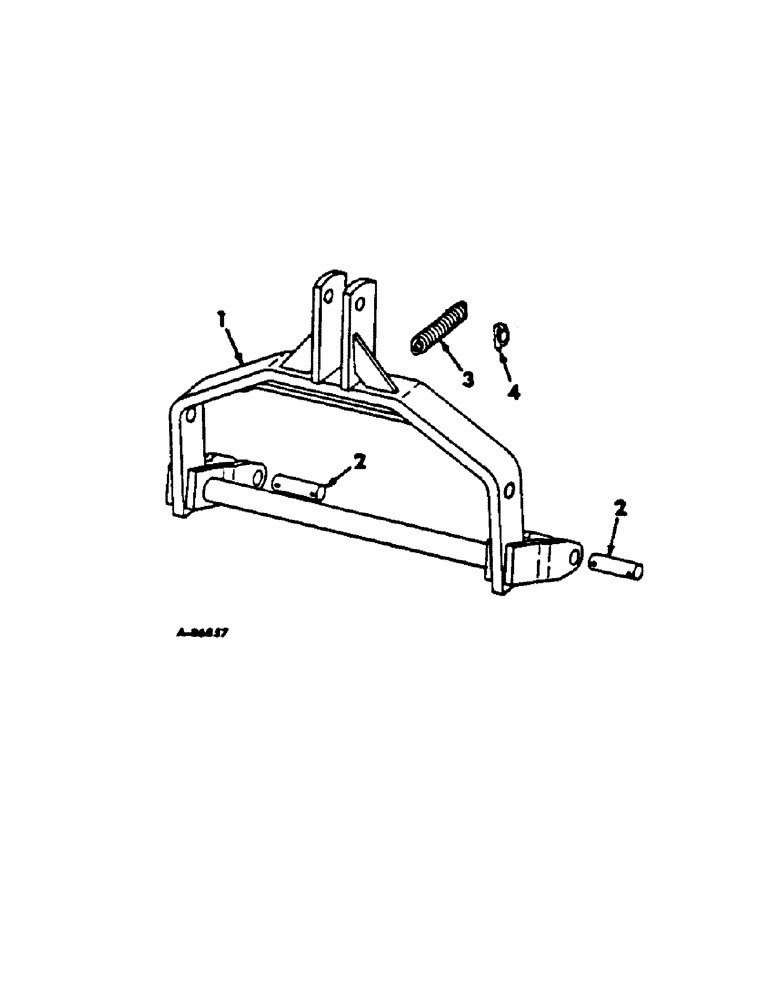

Схема запчастей Case IH 700 - (AG-21) - ON LAND HITCH ADAPTER PACKAGE, FOR CATEGORY II AND III THREE POINT HITCH
1
2
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

485339R1

FRAME ASSY

1шт.

2

485346R1

PIN, lower

2шт.

13170R1

PIN, 5/16 x 1-3/4 self-opening cot. 5/16" x 2 1/4"

4шт.

3

PO193

SPRING

hold up

1шт.

4

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSY, quick attachable

1шт.
