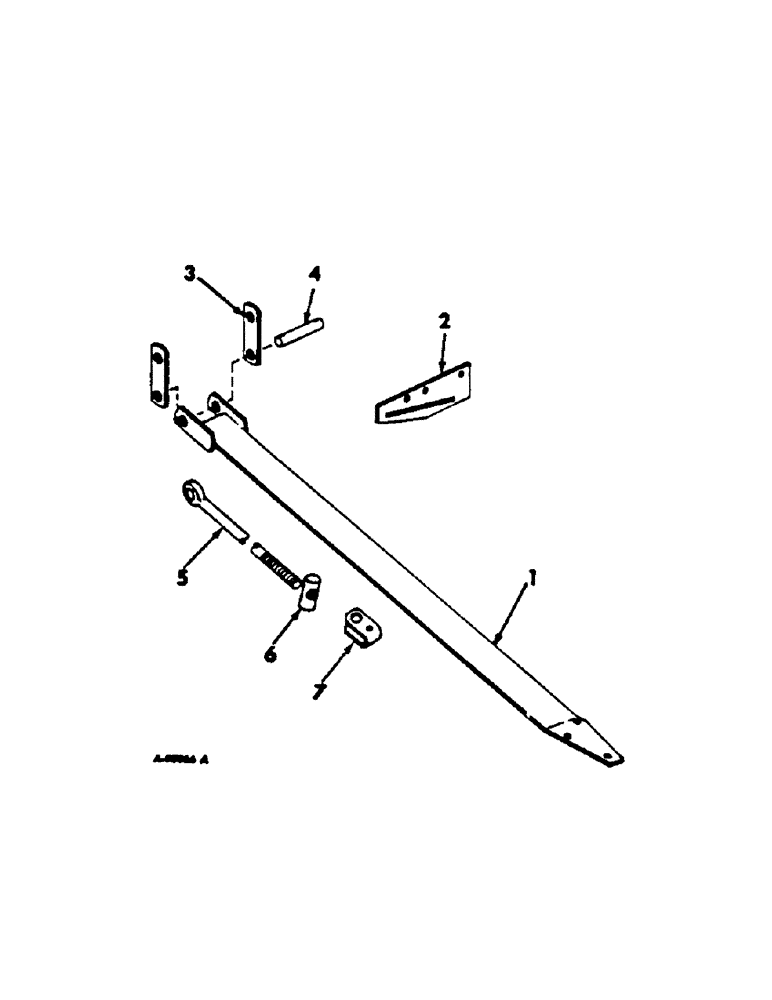

Запчасти Case IH 700 (AG-21[A]) - PULL CHANNEL TRUSS AND TRUSS STIFFENERS

1

491001R1

TRUSS ASSY, pull channel 14 in. plow

1шт.

1

491007R1

TRUSS ASSY, pull channel 16 in. plow

1шт.

1

491011R1

TRUSS ASSY, pull channel 18 in. plow

1шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 C-Z hex-hd cap

2шт.

20492R1

SCREW, 3/4-10 x 8-1/2 C-Z hex-hd cap

1шт.

2

491004R1

PLATE, truss drop 14 in. plow

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 C-Z hex-hd cap

2шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

2

491009R1

PLATE, pull channel truss drop 16 in. plow

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 C-Z hex-hd cap

1шт.

2

491014R1

ANGLE ASSY, pull channel 18 in. plow

1шт.

3

491005R1

LUG, pull channel drop 14 in. plow

2шт.

3

491010R1

LUG, pull channel drop 16 in. plow

2шт.

4

491006R1

PIN, clevis pull channel 14 & 16 in. plow

2шт.

4

485628R1

PIN, clevis pull bar 18 in. plow

2шт.

22442R1

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

4шт.

5

491017R1

EYEBOLT, drag link, plows w/o drawbar hitch

1шт.

6

491019R1

TRUNNION, drag link, plows w/o drawbar hitch

1шт.

7

491018R1

YOKE, drag link, plows w/o drawbar hitch

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.
