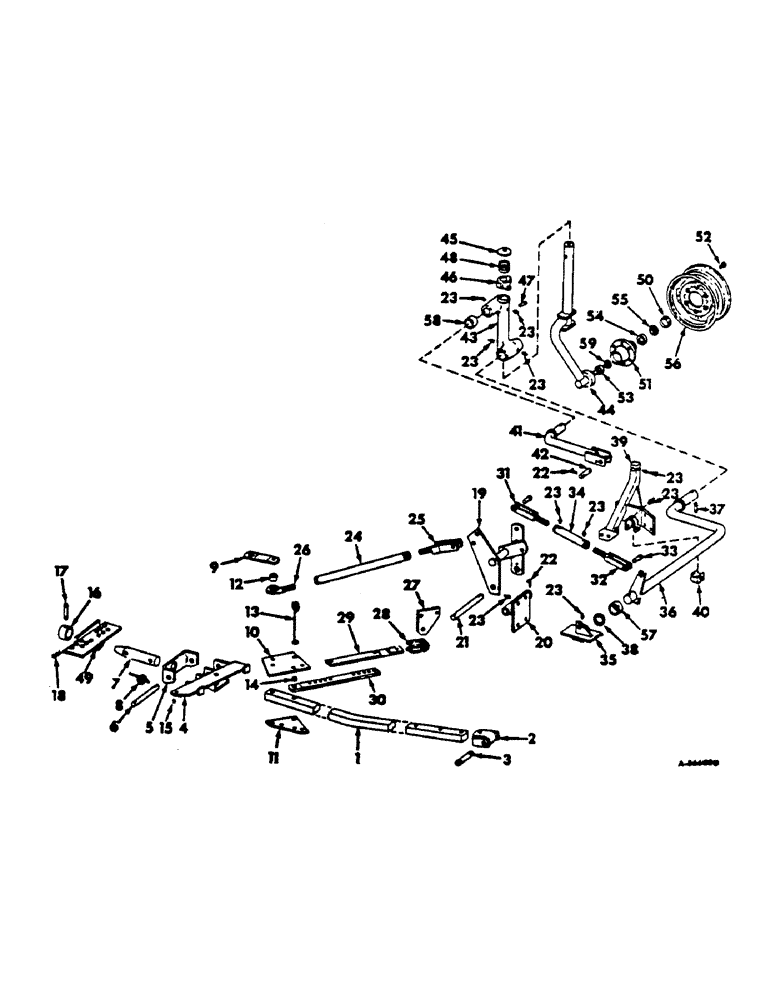

Запчасти Case IH 700 (AG-19) - ON THE LAND HITCH, TRACTORS WITH FIXED DRAWBAR
№
Артикул
Название
Примечание
Количество
1
482754R1
BRACKET, pull
1шт.
2
485625R1
CLEVIS ASSY, pull bar
1шт.
271825
BOLT,Hex, 7/8" - 9 x 4 1/2", Gr 5
SCREW, 7/8-9 x 4-1/2 C-Z hex-hd cap
1шт.
21624
FITTING
NUT, 7/8-9 zn-pltd nylon insert
1шт.
3
485628R1
PIN, pull bar clevis, for 18 in. plows only
1шт.
21652R1
COTTER PIN,3/8" x 2"
Pin, Split (Cotter), 3/8" x 2"
2шт.
4
482758R93
YOKE ASSY, hitch
1шт.
5
482832R1
CHANNEL, spreader quick attachable hitch
1шт.
6
482833R1
BAR, front yoke
1шт.
21226R1
WASHER
1-9/32 x 2 x 11 ga C-Z
2шт.
21652R1
COTTER PIN,3/8" x 2"
Pin, Split (Cotter), 3/8" x 2"
2шт.
7
482834R1
SHAFT, quick attachable
1шт.
8
482835R1
SPRING, quick attachable shaft
1шт.
9
485629R1
BAR, hitch stop and lift retainer
1шт.
21708R1
SCREW, 1-1/4-7 x 5 hex-hd cap
1шт.
21625R1
NUT, 1-1/4-7 zn-pltd nylon insert
1шт.
21218R1
BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5
SCREW, 3/4-10 x 5-1/4 C-Z hex-hd cap
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
10
486592R2
PLATE, steering stop
1шт.
271779
STRIP,Hex, 3/4" - 10 x 4", Gr 5
SCREW, 3/4-10 x 4 C-Z hex-hd cap
1шт.
467750R1
WASHER
25/32 x 1-1/2 x 11 ga C-Z
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
11
486593R1
PLATE, bar support
1шт.
12
485630R1
SPACER, lift link
1шт.
13
485631R1
SUPPORT, hyd hose
1шт.
271780
BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5
SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
14
455395R1
SPACER, steering stop plate & support bar plate
1шт.
15
471335R2
SPACER
steering arm
1шт.
87403
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
1шт.
21713R1
WASHER,25/32" x 1 3/4" x .120"
25/32 x 1-3/4 x 11 ga C-Z
1шт.
21621R1
LOCK NUT,3/4"-10
NUT, 3/4-10 znd hex. lock
1шт.
16
482841R1
SPACER, quick-attachable shaft
1шт.
17
482840R1
PIN, front pull quick-attachable
1шт.
21644R1
PIN,1/4" x 1"
Split (Cotter), 1/4" x 1"
1шт.
18
520175R1
CLIP
PIN, quick attachable cot.
1шт.
19
482842R91
PIVOT ASSY, lift
1шт.
20
482848R91
PLATE ASSY, front Rockshaft mounting
1шт.
271777
KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5
SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap
2шт.
271771
HOUSING,Hex, 3/4" - 10 x 2", Gr 5
SCREW, 3/4-10 x 2 C-Z hex-hd cap
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
21
482847R1
BAR, pivot
1шт.
22
471323R1
LINCH PIN
PIN, lock pivot
1шт.
21653R1
COTTER PIN,3/8" x 2 1/4"
Pin, Split (Cotter), 3/8" x 2 1/4"
1шт.
23
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28 str lub
9шт.
24
485634R1
LINK ASSY, lift
1шт.
25
485665R1
YOKE ASSY, lift link
1шт.
21676R1
PIN, 7/8 x 3-1/4 zn-pltd std-hd
1шт.
217973
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1-1/4"
1шт.
21648R1
LOCK PIN,1/4" x 1 1/4", Slotted
Pin, 1/4" x 1 1/4", Slotted
1шт.
26
485637R1
BOLT, lift link adjusting
1шт.
21648R1
LOCK PIN,1/4" x 1 1/4", Slotted
Pin, 1/4" x 1 1/4", Slotted
1шт.
425-1420
JAM NUT,Jam, 1 1/4"-7, G5
1-1/4-7 C-Z hex. jam
1шт.
27
482757R1
PLATE, pull support bar anchor
1шт.
271777
KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5
SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap
1шт.
271779
STRIP,Hex, 3/4" - 10 x 4", Gr 5
SCREW, 3/4-10 x 4 C-Z hex-hd cap
1шт.
28
518683R1
CLEVIS
pull bar hitch
1шт.
23580R1
SCREW, 7/8-9 x 4 znd type 4 hex-hd cap
1шт.
23579R1
SCREW, 7/8-9 x 3-3/4 znd type 4 hex-hd cap
1шт.
21715R1
WASHER
29/32 x 1-3/4 x 11 ga C-Z
2шт.
21624R1
LOCK NUT,7/8"-9
NUT, 7/8-9 zn-pltd nylon insert
2шт.
29
482755R1
BAR, pull support
1шт.
413-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
Hex, 3/4"-10 x 2-1/2", G5
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
30
482756R1
BAR, pull support adjusting
1шт.
31
482861R91
YOKE ASSY, turnbuckle RH
1шт.
426899
NUT,Jam, 1"-8, G5
1-8 C-Z hex. jam
1шт.
32
482865R91
YOKE ASSY, turnbuckle LH
1шт.
33
21678R1
PIN, 7/8 x 2-1/4 z-pltd std-hd
2шт.
20340R1
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
2шт.
34
480249R1
TRUSS ROD
TURNBUCKLE, yoke
1шт.
35
482854R91
SUPPORT ASSY, inner axle brg
1шт.
19873R1
HARDWARE,Hex, 3/4"-10 x 5 1/2", G5
SCREW, 3/4-10 x 5-1/2 C-Z hex-hd
4шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
36
482873R92
AXLE ASSY, front lift
1шт.
21654R1
PIN, SPLIT (COTTER),3/8" x 3"
1шт.
521159R1
WASHER
2-5/16 x 3 x 11 ga
1шт.
37
482877R1
PIN
front axle
1шт.
21629R1
PIN, 1/8 x 7/8 C-Z cot.
2шт.
38
482876R1
WASHER
front lift axle
2шт.
39
482867R91
SUPPORT
ASSY, outer 16 & 18 in. plow
1шт.
87403
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
3шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
3шт.
413-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
SCREW, 5/8-11 x 3-1/4 C-Z hex-hd cap
1шт.
271731
SHAFT,Hex, 5/8" - 11 x 4", Gr 5
SCREW, 5/8-11 x 4 C-Z hex-hd cap
1шт.
273312
BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5
SCREW, 5/8-11 x 5-1/2 C-Z hex-hd cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
39
485642R2
SUPPORT ASSY, outer 14 in. plow
1шт.
87403
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
3шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
3шт.
413-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
SCREW, 5/8-11 x 3 C-Z hex-hd cap
1шт.
273312
BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5
SCREW, 5/8-11 x 5-1/2 C-Z hex-hd cap
1шт.
271731
SHAFT,Hex, 5/8" - 11 x 4", Gr 5
SCREW, 5/8-11 x 4 C-Z hex-hd cap
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
40
482872R1
CAP
BEARING, outer half
1шт.
41
485647R3
ARM
ASSY, front furrow wheel
1шт.
21719R1
WASHER
2-1/32 x 2-3/4 x 11 ga C-Z (as required)
5шт.
21656R1
COTTER PIN,3/8" x 2 3/4"
Pin, Split (Cotter), 3/8" x 2 3/4"
1шт.
42
485644R1
PIN
front furrow wheel arm
1шт.
21652R1
COTTER PIN,3/8" x 2"
Pin, Split (Cotter), 3/8" x 2"
1шт.
471323R1
LINCH PIN
PIN, front furrow wheel arm lock
1шт.
43
482878R2
HOUSING, axle
1шт.
44
482894R92
AXLE ASSY, front furrow wheel
1шт.
366112R1
WASHER
25/32 x 1-1/4 x 11 ga C-Z
1шт.
69442D
NUT
3/4-16 slt hex.
1шт.
271546
BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5
SCREW, 5/8-11 x 1-1/4 C-Z hex-hd cap
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
45
667180R1
WASHER, .656 x 3 x .25
1шт.
46
482897R1
CAM, front wheel
1шт.
47
482898R1
PIN, front axle
1шт.
48
U13661
VALVE SPRING
SPRING, axle compression
1шт.
49
482836R91
BAR ASSY, tractor adapter, for 706, 756, 806, 856, 1206 and 1256 tractors
1шт.
21704R1
BOLT,3/4" - 10 x 3 1/2", Gr 8
SCREW, 3/4-10 x 3-1/2 C-Z type 4 hex-hd cap
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
49
485632R2
BAR ASSY, tractor adapter, 4100 tractors
1шт.
21704R1
BOLT,3/4" - 10 x 3 1/2", Gr 8
SCREW, 3/4-10 x 3-1/2 C-Z type 4 hex-hd cap
4шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
50
663908R1
CAP
hub
1шт.
51
465493R2
HUB
wheel
1шт.
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4 UNF lub
1шт.
52
351079R1
BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"
wheel hub
6шт.
53
618024R1
BEARING CUP,65.113mm OD x 13.97mm W
Inner roller
1шт.
54
371883R1
BEARING CUP
Wheel outer roller
1шт.
55
371882R91
ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W
Assy, Wheel outer roller
1шт.
56
622192R91
WHEEL
15 x 5KB rim
1шт.
57
488438R1
SPACER
front lift axle
1шт.
58
493745R1
SPACER
front furrow wheel arm
1шт.
59
618023R91
BEARING ASSY,34.93mm ID x 18.2mm W
BEARING ASSY, inner roller cone
1шт.
Выбрано товаров: 141
