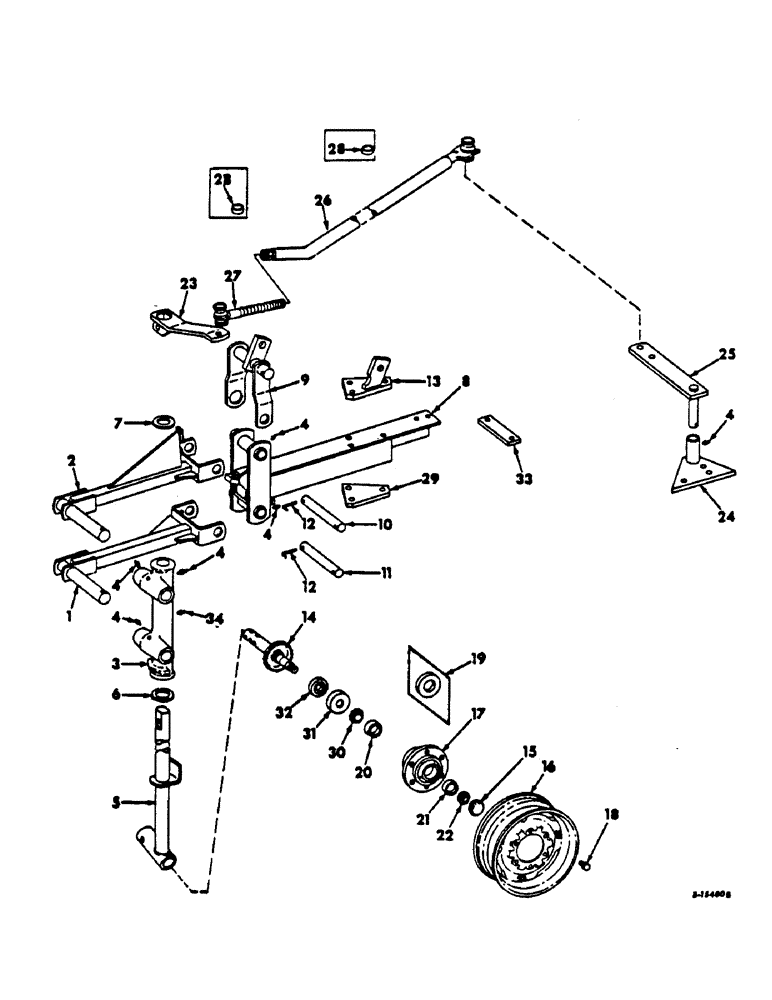

Запчасти Case IH 700 (AG-16) - REAR FURROW WHEEL

1

484986R3

ARM

ASSY, lower, replaces 482783R91 by also ordering arm, 484989R2

1шт.

2

484989R3

ARM

ASSY, upper, replaces 482788R91 by also ordering arm, 484986R2

1шт.

3

482790R1

HOUSING, rear axle

1шт.

609376R1

WASHER

1-25/32 x 2-1/2 x 11 ga C-Z

1шт.

20705R1

WASHER

1-25/32 x 2-1/2 x 16 ga C-Z (as required)

2шт.

21653R1

COTTER PIN,3/8" x 2 1/4"

Pin, Split (Cotter), 3/8" x 2 1/4"

2шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 28NF 2 str lub

6шт.

5

482791R95

AXLE

ASSY, rear

1шт.

6

488175R1

WASHER

2.031 x 3.00 x 16 ga

2шт.

7

488175R1

WASHER

2.031 x 3.00 x 16 ga (as required)

1шт.

8

482793R94

BRACKET ASSY, rear wheel

1шт.

485708R1

BOLT,Hex, 3/4" - 10 x 3", Full Thd

SCREW, 3/4-10 x 3 hex-hd cap

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 C-Z hex. jam

1шт.

9

482800R91

ROCKSHAFT

ASSY

1шт.

10

482805R1

PIN

BAR, top

1шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), , self-opening 3/8" x 1 7/8"

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

1шт.

11

482806R2

BAR

lower

1шт.

21655R1

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), , self-opening 3/8" x 1 7/8"

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

1шт.

12

471323R1

LINCH PIN

PIN, pivot lock

2шт.

13

482807R91

BRACKET

ASSY, cyl anchor

1шт.

20921R1

BOLT,Hex, 3/4" - 10 x 12", Gr 5

SCREW, 3/4-10 x 12 C-Z hex-hd cap

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

14

486378R1

SPINDLE

ASSY, wheel

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

69442D

NUT

3/4-16 slt hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

15

663908R1

CAP

hub

1шт.

16

622192R91

WHEEL

15 x 5KB rim for 6.70 x 15 tire

1шт.

16

614424R91

WHEEL ASSY.

WHEEL, 15 x 6LB for 7.00/7.60-15 tire

1шт.

17

465493R2

HUB

wheel

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF lub

1шт.

18

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

6шт.

19

459912R91

BEARING ASSY,1.3755" ID x 2.5635" OD x 0.74"

BEARING W/SEAL, wheel inner roller, see note A

1шт.

20

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner roller

1шт.

21

371883R1

BEARING CUP

Wheel outer roller

1шт.

22

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Wheel outer roller

1шт.

23

482815R92

ARM

ASSY, rear steering

1шт.

271798

BOLT

SCREW, 3/4-16 x 3-1/4 C-Z hex-hd cap

1шт.

21626R1

LOCK NUT,3/4"-16

NUT, 3/4-16 zn-pltd nylon insert

1шт.

24

482817R91

SUPPORT

PLATE ASSY, bearing, 14 & 16 in. plows

1шт.

24

489852R1

BAR

ASSY, bearing, 18 inch plows

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

25

482820R91

ARM

BAR ASSY, center steering arm

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

1шт.

21637R1

PIN, 1/4 x 1-3/4 C-Z self-opening cot.

1шт.

26

482823R91

PIPE ASSY, rear steering, spring trip & shear pin, order 1 pipe assy, 489854R1, 1 cap screw 19873R1

1шт.

26

489854R1

PIPE ASSY, rear steering, spring trip & shear pin

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

1шт.

26

486375R2

TUBE

ASSY, rear steering, automatic trip, order 1 tube assy, 489856R1, (1) cap screw 19873R1

1шт.

26

489856R1

TUBE

ASSY, rear steering

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

1шт.

27

482937R2

LINK

BOLT, adjusting front link eye, order (1) link assy, 489858R1, (1) cap screw, 271780

1шт.

27

489858R2

LINK ASSY.

LINK ASSY, adjusting, will work for 471358R1

1шт.

516773R1

NUT

no. 1-8 hex. jam

1шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 C-Z hex-hd cap

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

1шт.

28

471335R2

SPACER

steering arm, Serial Range: up-1968

2шт.

29

482809R1

BAR

rear cylinder

1шт.

30

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, inner roller cone

1шт.

31

667564R1

RING

oil seal wear

1шт.

32

667599R91

OIL SEAL

oil

1шт.

33

484993R1

BAR

tie strap

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

34

16964R91

FITTING

1/4-28NS 90 deg lub

1шт.
